Schneider Electric Kabl T1 16A monofazni IEC 4 metra - Wallbox EVH2 rezervna oprema; EVP2CNS161A4

Attached Cable T1 16A 1-Ph IEC 4 meters - Wallbox EVH2 spare part...

Brand: Schneider Electric
Product Code: EVP2CNS161A4
Availability: Check availability

Price on request

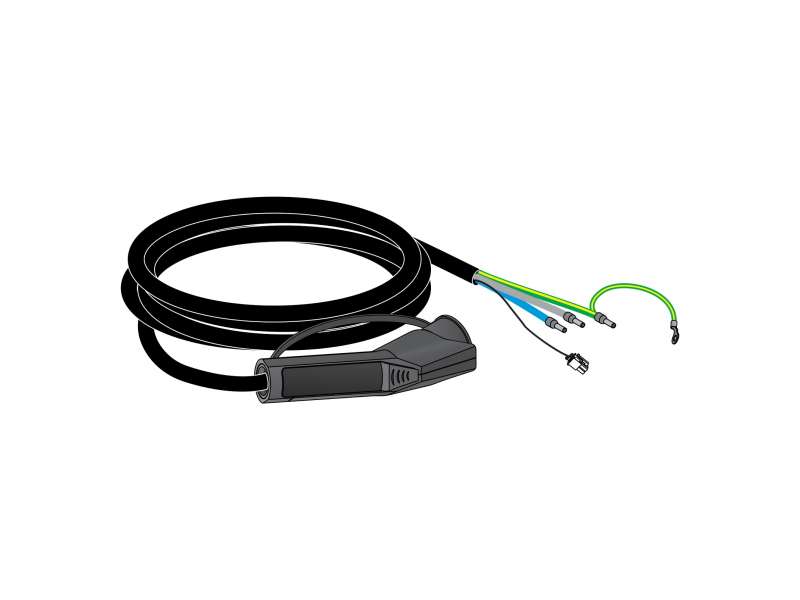

Attached Cable T1 16A 1-Ph IEC 4 meters - Wallbox EVH2 spare part

Main
Range	EVlink
Product or component type	Charging cable
Accessory / separate part category	Spare part
Network number of phases	Single phase
poles description	1P + N
[In] rated current	16 A
[Us] rated supply voltage	220...240 V AC 50/60 Hz
Earthing system	Compatible IT with additional isolation transformer on the power supply Compatible TN Compatible TT
nominal output power	3.7 W 16 A
Socket number	1

Complementary
connector type	T1 vehicle end silver plated contacts Without connector charging station end
range compatibility	EVlink (EVlink Wallbox) EVH2 charging station
Standards	IEC 62196-2 IEC 62196-1
Product certifications	CE
Length	4 m
Net weight	3.1 kg

Environment
IP degree of protection	IP54 conforming to IEC 60529
IK degree of protection	IK10 conforming to IEC 62262
ambient air temperature for operation	-30…50 °C
Ambient air temperature for storage	-40…80 °C
Relative humidity	5…95 %

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	15 cm
Package 1 Width	30 cm
Package 1 Length	40 cm
Package 1 Weight	970 g
Unit Type of Package 2	S02
Number of Units in Package 2	1
Package 2 Height	15 cm
Package 2 Width	30 cm
Package 2 Length	40 cm
Package 2 Weight	1.425 kg
