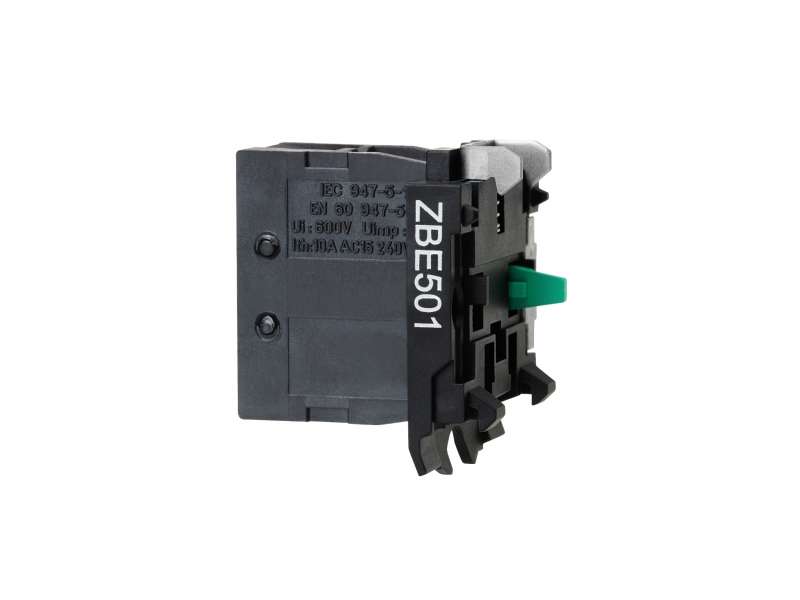

Schneider Electric Jednostruki kontaktni blok za glavu Ø22 1NO vijčani priključak;ZBE501
High power switching contacts block, silver alloy, screw clamp terminal, 1 NO...
VAT-exclusive price: 1.613,00 |
VAT-inclusive price: 1.935,60 |
High power switching contacts block, silver alloy, screw clamp terminal, 1 NO
| range of product |
Harmony XB5
Harmony XB4 |
|
|---|---|---|
| product or component type |
Contact block
|
|
| device short name |
ZBE
|
|
| sale per indivisible quantity |
1
|
|
| IP degree of protection |
IP20 conforming to IEC 60529
|
|
| contacts type and composition |
1 NO
|
|
| contact operation |
Slow-break
|
|
| contact block type |
Single
|
|
| contacts usage |
High power switching contacts
|
|
| connections - terminals |
Screw clamp terminals, <= 1 x 2.5 mm² with cable end
Screw clamp terminals, <= 2 x 1.5 mm² with cable end Screw clamp terminals, <= 2 x 2.5 mm² without cable end Screw clamp terminals, >= 1 x 0.5 mm² without cable end |
| net weight |
0.02 kg
|
|
|---|---|---|
| positive opening |
Without
|
|
| mechanical durability |
10000000 cycles
|
|
| short-circuit protection |
10 A cartridge fuse type gG conforming to EN/IEC 60947-5-1
|
|
| [Ith] conventional free air thermal current |
10 A conforming to EN/IEC 60947-5-1
|
|
| [Ui] rated insulation voltage |
300 V conforming to EN 60947-1
|
|
| [Uimp] rated impulse withstand voltage |
6 kV EN 60947-1
|
|
| [Ie] rated operational current |
1.1 A at 125 V, DC-13, P300 conforming to EN/IEC 60947-5-1
|
|
| mounting of block |
Front mounting
|
|
| electrical composition code |
C15 (quantity <= 1)
|
| ambient air temperature for storage |
-40…70 °C
|
|
|---|---|---|
| ambient air temperature for operation |
-40…70 °C
|
|
| vibration resistance |
5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
|
|
| shock resistance |
30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Unit Type of Package 1 |
PCE
|
|
|---|---|---|
| Number of Units in Package 1 |
1
|
|
| Package 1 Weight |
22 g
|
|
| Package 1 Height |
5.4 cm
|
|
| Package 1 width |
4.8 cm
|
|
| Package 1 Length |
3.8 cm
|
|
| Unit Type of Package 2 |
BB1
|
|
| Number of Units in Package 2 |
5
|
|
| Package 2 Weight |
130 g
|
|
| Package 2 Height |
5.6 cm
|
|
| Package 2 width |
26.5 cm
|
|
| Package 2 Length |
4.2 cm
|
|
| Unit Type of Package 3 |
S02
|
|
| Number of Units in Package 3 |
80
|
|
| Package 3 Weight |
2.459 kg
|
|
| Package 3 Height |
15 cm
|
|
| Package 3 width |
30 cm
|
|
| Package 3 Length |
40 cm
|
| Sustainable offer status |
Green Premium product
|
|---|
-
Harmony XB4 ZBE501
