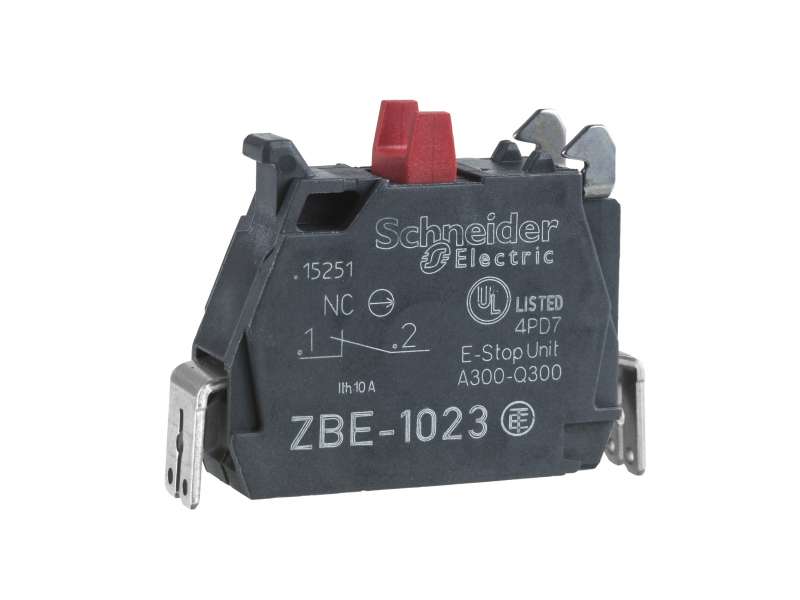

Schneider Electric Jednostruki kontaktni blok za glavu Ø22 1NC legura srebra Faston konektor;ZBE1023
Single contact block, silver alloy, faston connector, 1 NC...
VAT-exclusive price: 1.010,00 |
VAT-inclusive price: 1.212,00 |
Single contact block, silver alloy, faston connector, 1 NC
| range of product |
Harmony XB5
Harmony XB4 |
|
|---|---|---|
| product or component type |
Contact block
|
|
| device short name |
ZBE
|
|
| sale per indivisible quantity |
5
|
|
| IP degree of protection |
IP20 conforming to IEC 60529
|
|
| contacts type and composition |
1 NC
|
|
| contact operation |
Slow-break
|
|
| contact block type |
Single
|
|
| contacts usage |
Standard contacts
|
|
| connections - terminals |
Faston connector, connection size: 1 x 6.35 mm
Faston connector, connection size: 2 x 2.8 mm |
| net weight |
0.011 kg
|
|
|---|---|---|
| positive opening |
With conforming to EN/IEC 60947-5-1 appendix K
|
|
| operating travel |
1.5 mm (NC changing electrical state)
4.3 mm (total travel) |
|
| operating force |
2 N NC changing electrical state
|
|
| mechanical durability |
10000000 cycles
|
|
| contacts material |
Silver alloy (Ag/Ni)
|
|
| [Ui] rated insulation voltage |
250 V (pollution degree 3) conforming to EN 60947-1
|
|
| electrical reliability |
Λ < 10exp(-7), 1 mA in clean environment conforming to EN/IEC 60947-5-4
Λ < 10exp(-8), 5 mA in clean environment conforming to EN/IEC 60947-5-4 |
|
| mounting of block |
Front mounting
|
|
| electrical composition code |
C1 (quantity <= 9)
C2 (quantity <= 7) C3 (quantity <= 6) C4 (quantity <= 4) C5 (quantity <= 5) C6 (quantity <= 3) C7 (quantity <= 4) C8 (quantity <= 2) C9 (quantity <= 3) C12 (quantity <= 6) M1 (quantity <= 6) M2 (quantity <= 4) M3 (quantity <= 4) M5 (quantity <= 2) M6 (quantity <= 2) M7 (quantity <= 6) M8 (quantity <= 4) M9 (quantity <= 2) SF1 (quantity <= 3) SF2 (quantity <= 2) MF1 (quantity <= 2) MF2 (quantity <= 2) C10 (quantity <= 2) M4 (quantity <= 2) C13 (quantity <= 1) |
| protective treatment |
TH
|
|
|---|---|---|
| ambient air temperature for storage |
-40…70 °C
|
|
| ambient air temperature for operation |
-40…70 °C
|
|
| standards |
EN/IEC 60947-1
CSA C22.2 No 14 JIS C8201-5-1 EN/IEC 60947-5-1 UL 508 EN/IEC 60947-5-4 JIS C8201-1 |
|
| product certifications |
DNV
UL CSA LROS (Lloyds register of shipping) RINA GL BV |
|
| vibration resistance |
5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
|
|
| shock resistance |
30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Unit Type of Package 1 |
PCE
|
|
|---|---|---|
| Number of Units in Package 1 |
1
|
|
| Package 1 Weight |
11 g
|
|
| Package 1 Height |
4.4 cm
|
|
| Package 1 width |
5.4 cm
|
|
| Package 1 Length |
5.6 cm
|
|
| Unit Type of Package 2 |
BB1
|
|
| Number of Units in Package 2 |
5
|
|
| Package 2 Weight |
59 g
|
|
| Package 2 Height |
4.4 cm
|
|
| Package 2 width |
5.4 cm
|
|
| Package 2 Length |
5.6 cm
|
|
| Unit Type of Package 3 |
S02
|
|
| Number of Units in Package 3 |
400
|
|
| Package 3 Weight |
5.158 kg
|
-
Harmony XB4 ZBE1023
