Schneider Electric Izolovana fleksibilna sabirnica 250 A, 20 x 3 mm, d = 1800 mm; LVS04743
Insulated flexible bar, 250 A, size 20 x 3 mm, length 1800 mm; LVS04743...
VAT-exclusive price: 6.794,00 |
VAT-inclusive price: 8.152,80 |

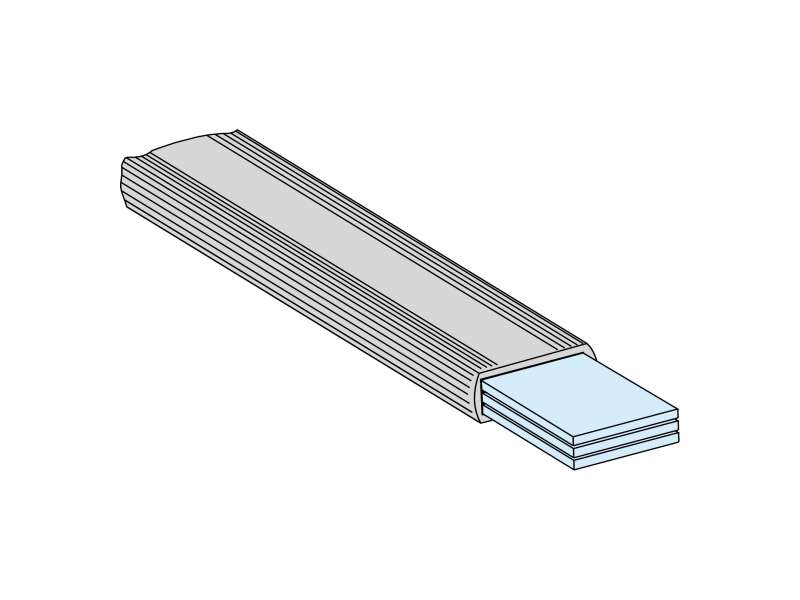

Insulated flexible bar, 250 A, size 20 x 3 mm, length 1800 mm; LVS04743
| Range | PrismaSeT |
|---|---|
| Range of product |
PrismaSeT G PrismaSeT P |
| Product or component type | Insulated flexible bar |
| product name |
PrismaSeT (PrismaSeT G) enclosure PrismaSeT (PrismaSeT P) enclosure PrismaSeT (Prisma iPM L) enclosure PrismaSeT (Prisma iPM M) enclosure Linergy (Linergy FM) device feeder |
| Accessory / separate part category | Current distribution accessory |
| Standards |
IEC 61439-2, inside enclosure IEC 61439-1, inside enclosure |
| Product certifications | ASTA |
| Cubicle-device connection | Linergy FM distribution block |
|---|---|
| installation description |
Cubicle Floor-standing enclosure Wall-mounted enclosure |
| Installed device |
ComPact: NSX160 ComPact: NSX250 ComPact: INS250 ComPact: INV250 EasyPact: CVS160...250 Linergy FM 200 A |
| [Ie] rated operational current | 250 A |
| Busbar cross section | 20 x 3 mm |
| Length | 1800 mm |
| Net weight | 1.68 kg |
| Quantity per set | Set of 1 |
