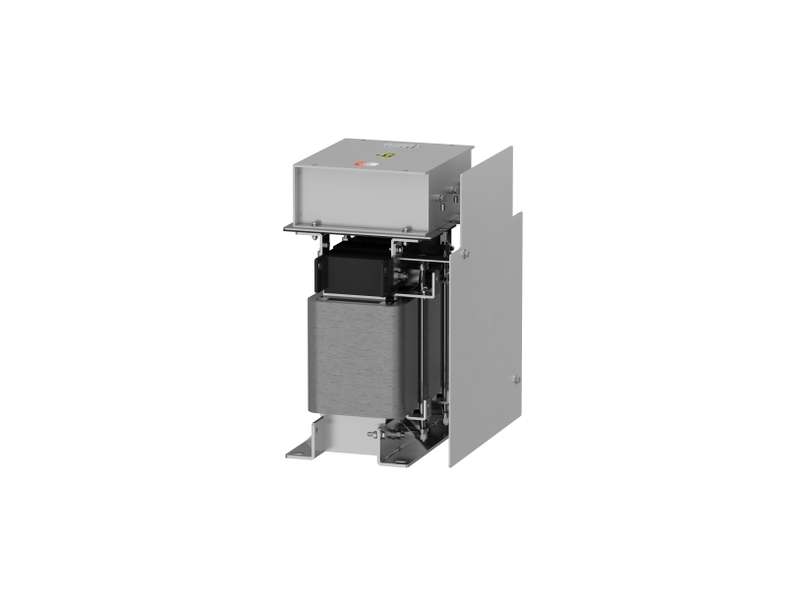

Schneider Electric Izlazni sinusni filter - 305 A - za frekventne regulatore;VW3A5407

output sinus filter - 305 A - for variable speed drive...

Brand: Schneider Electric
Product Code: VW3A5407
Availability: Check availability

VAT-exclusive price: 668.613,00

VAT-inclusive price: 802.335,60

Qnt:

Description
Specification

output sinus filter - 305 A - for variable speed drive

Main
product or component type	Sinus filter
range compatibility	Altivar Process ATV900 Altivar Process ATV600
product specific application	Output filter

Complementary
maximum motor cable length	1000 m unshielded cable 500 m shielded cable
[In] rated current	305 A
thermal losses	676 W at 4 kHz
product compatibility	Variable speed drive ATV630 wall mount, motor: 55 kW, 380...480 V Variable speed drive ATV630 wall mount, motor: 110 kW, 380...480 V Variable speed drive ATV630 wall mount, motor: 132 kW, 200...240 V Variable speed drive ATV630 wall mount, motor: 160 kW, 380...480 V Variable speed drive ATV930 wall mount, motor: 55 kW, 380...480 V Variable speed drive ATV930 wall mount, motor: 110 kW, 380...480 V Variable speed drive ATV930 wall mount, motor: 132 kW, 200...240 V Variable speed drive ATV930 wall mount, motor: 160 kW, 380...480 V
electrical connection	M10 copper bar
operating altitude	<= 1000 m without current derating 1000...4000 m with current derating 1 % per 100 m
switching frequency	2...6 kHz
maximum output frequency	100 Hz
maximum voltage drop at rated load	8 %
permissible voltage	480 V AC
max current	1.20 x nominal current (duration = 60 s)
width	460 mm
height	370 mm
depth	565 mm
net weight	131 kg

Environment
IP degree of protection	IP00
environmental characteristic	Biological pollution resistance class 3B1 conforming to IEC 60721-3-3 Chemical pollution resistance class 3C3 conforming to IEC 60721-3-3 Dust pollution resistance class 3S3 conforming to IEC 60721-3-3
pollution degree	3 conforming to IEC 61800-5-1
relative humidity	5…95 % without condensation
ambient air temperature for operation	50…60 °C (with current derating 1.5 % per °C) -15…50 °C (without current derating)
ambient air temperature for storage	-40…70 °C
mechanical robustness	Shocks class 3M4 conforming to IEC 60721-3-3 Vibrations class 3M4 conforming to IEC 60721-3-3

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Weight	138.5 kg
Package 1 Height	37.0 cm
Package 1 width	46.0 cm
Package 1 Length	56.5 cm
Unit Type of Package 2	P06
Number of Units in Package 2	1
Package 2 Weight	147.0 kg
Package 2 Height	77.0 cm
Package 2 width	80.0 cm
Package 2 Length	60.0 cm

Main
product or component type	Sinus filter
range compatibility	Altivar Process ATV900 Altivar Process ATV600
product specific application	Output filter

Complementary
maximum motor cable length	1000 m unshielded cable 500 m shielded cable
[In] rated current	305 A
thermal losses	676 W at 4 kHz
product compatibility	Variable speed drive ATV630 wall mount, motor: 55 kW, 380...480 V Variable speed drive ATV630 wall mount, motor: 110 kW, 380...480 V Variable speed drive ATV630 wall mount, motor: 132 kW, 200...240 V Variable speed drive ATV630 wall mount, motor: 160 kW, 380...480 V Variable speed drive ATV930 wall mount, motor: 55 kW, 380...480 V Variable speed drive ATV930 wall mount, motor: 110 kW, 380...480 V Variable speed drive ATV930 wall mount, motor: 132 kW, 200...240 V Variable speed drive ATV930 wall mount, motor: 160 kW, 380...480 V
electrical connection	M10 copper bar
operating altitude	<= 1000 m without current derating 1000...4000 m with current derating 1 % per 100 m
switching frequency	2...6 kHz
maximum output frequency	100 Hz
maximum voltage drop at rated load	8 %
permissible voltage	480 V AC
max current	1.20 x nominal current (duration = 60 s)
width	460 mm
height	370 mm
depth	565 mm
net weight	131 kg

Environment
IP degree of protection	IP00
environmental characteristic	Biological pollution resistance class 3B1 conforming to IEC 60721-3-3 Chemical pollution resistance class 3C3 conforming to IEC 60721-3-3 Dust pollution resistance class 3S3 conforming to IEC 60721-3-3
pollution degree	3 conforming to IEC 61800-5-1
relative humidity	5…95 % without condensation
ambient air temperature for operation	50…60 °C (with current derating 1.5 % per °C) -15…50 °C (without current derating)
ambient air temperature for storage	-40…70 °C
mechanical robustness	Shocks class 3M4 conforming to IEC 60721-3-3 Vibrations class 3M4 conforming to IEC 60721-3-3

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Weight	138.5 kg
Package 1 Height	37.0 cm
Package 1 width	46.0 cm
Package 1 Length	56.5 cm
Unit Type of Package 2	P06
Number of Units in Package 2	1
Package 2 Weight	147.0 kg
Package 2 Height	77.0 cm
Package 2 width	80.0 cm
Package 2 Length	60.0 cm
