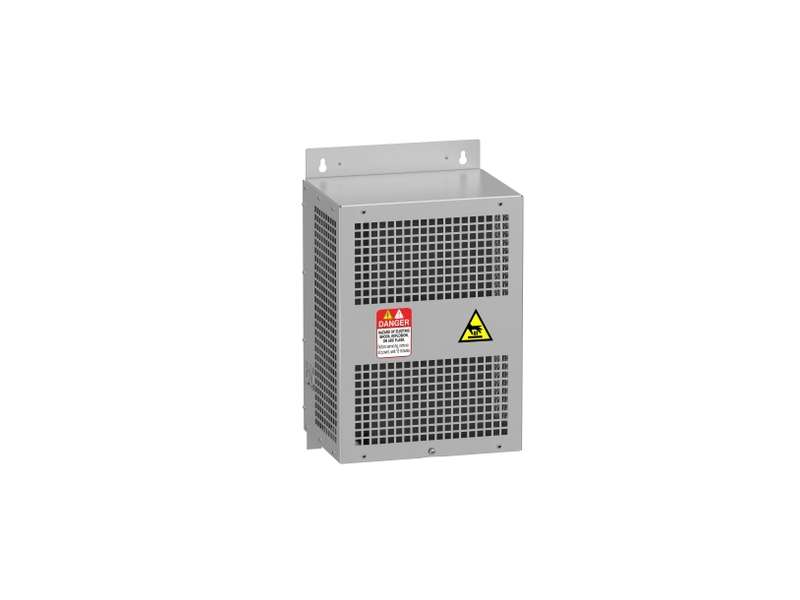

Schneider Electric Izlazni du/dt filter za frekventne regulatore - IP20;VW3A5302
output dv/dt filter for variable speed drive - IP20...
VAT-exclusive price: 52.192,00 |
VAT-inclusive price: 62.630,40 |
output dv/dt filter for variable speed drive - IP20
| product or component type | Dv/dt filter |
|---|---|
| range compatibility |
Altivar Process ATV900 Easy Altivar 610 Altivar Process ATV600 Altivar Machine ATV340 |
| product specific application | Output filter |
| [In] rated current | 15 A |
| product compatibility |
ATV630 variable speed drive wall mount - 3 kW, 380...480 V ATV630 variable speed drive wall mount - 4 kW, 380...480 V ATV630 variable speed drive wall mount - 5.5 kW, 380...480 V ATV630 variable speed drive wall mount - 1.5 kW, 200...240 V ATV630 variable speed drive wall mount - 2.2 kW, 200...240 V ATV630 variable speed drive wall mount - 3 kW, 200...240 V ATV650 variable speed drive wall mount - 3 kW, 380...480 V ATV650 variable speed drive wall mount - 4 kW, 380...480 V ATV650 variable speed drive wall mount - 5.5 kW, 380...480 V ATV610 variable speed drive - 3 kW, 380...415 V ATV610 variable speed drive - 4 kW, 380...415 V ATV610 variable speed drive - 5.5 kW, 380...415 V ATV930 variable speed drive wall mount - 3 kW, 380...480 V ATV930 variable speed drive wall mount - 4 kW, 380...480 V ATV930 variable speed drive wall mount - 5.5 kW, 380...480 V ATV930 variable speed drive wall mount - 1.5 kW, 200...240 V ATV930 variable speed drive wall mount - 2.2 kW, 200...240 V ATV930 variable speed drive wall mount - 3 kW, 200...240 V ATV950 variable speed drive wall mount - 3 kW, 380...480 V ATV950 variable speed drive wall mount - 4 kW, 380...480 V ATV950 variable speed drive wall mount - 5.5 kW, 380...480 V |
| nedded quantity | 1 |
| electrical connection | Terminal block, connection capacity: 4 mm² / AWG 12 |
| maximum motor cable length |
300 m unshielded cable at 4 kHz 300 m shielded cable at 4 kHz |
|---|---|
| dv/dt |
3000 V/µs max at 200...240 V 3000 V/µs max at 380...480 V |
| thermal losses | 38 W at 4 kHz |
| maximum drive output frequency | 100 Hz |
| ambient air temperature for operation |
-10…50 °C (without current derating) 50…60 °C (with current derating 1.5 % per °C) |
| operating altitude |
0...1000 m without current derating 1000...4000 m with current derating 1 % per 100 m |
| width | 285 mm |
| height | 530 mm |
| depth | 215 mm |
| net weight | 12 kg |
| IP degree of protection |
IP20 IP21 (with kit VW3A53902) |
|---|---|
| ambient air temperature for storage | -40…70 °C |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 18.8 kg |
| Package 1 Height | 39.0 cm |
| Package 1 width | 59.0 cm |
| Package 1 Length | 36.6 cm |
| Unit Type of Package 2 | P06 |
| Number of Units in Package 2 | 1 |
| Package 2 Weight | 18.8 kg |
| Package 2 Height | 52.0 cm |
| Package 2 width | 60.0 cm |
| Package 2 Length | 80.0 cm |
