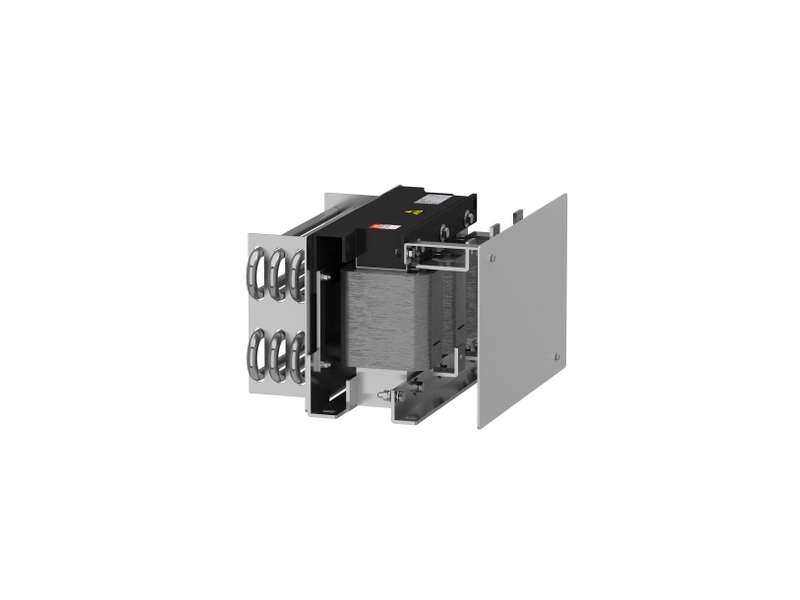

Schneider Electric Izlazni du/dt filter za frekventne regulatore - IP00;VW3A5307
output dv/dt filter for variable speed drive - IP00...
VAT-exclusive price: 163.926,00 |
VAT-inclusive price: 196.711,20 |
output dv/dt filter for variable speed drive - IP00
| product or component type | Dv/dt filter |
|---|---|
| range compatibility |
Easy Altivar 610 Altivar Process ATV900 Altivar Process ATV600 |
| product specific application | Output filter |
| [In] rated current | 305 A |
| product compatibility |
ATV630 variable speed drive wall mount - 110 kW, 380...480 V ATV630 variable speed drive wall mount - 132 kW, 380...480 V ATV630 variable speed drive wall mount - 160 kW, 380...480 V ATV630 variable speed drive wall mount - 55 kW, 200...240 V ATV630 variable speed drive wall mount - 75 kW, 200...240 V ATV610 variable speed drive - 110 kW, 380...415 V ATV610 variable speed drive - 132 kW, 380...415 V ATV610 variable speed drive - 160 kW, 380...415 V ATV930 variable speed drive wall mount - 110 kW, 380...480 V ATV930 variable speed drive wall mount - 132 kW, 380...480 V ATV930 variable speed drive wall mount - 160 kW, 380...480 V ATV930 variable speed drive wall mount - 55 kW, 200...240 V ATV930 variable speed drive wall mount - 75 kW, 200...240 V |
| nedded quantity | 1 |
| electrical connection | Copper bar M10 |
| maximum motor cable length |
500 m unshielded cable 300 m shielded cable at 2.5 kHz |
|---|---|
| dv/dt |
6000 V/µs max at 200...240 V 6000 V/µs max at 380...480 V |
| thermal losses | 287 W at 4 kHz |
| maximum drive output frequency | 100 Hz |
| ambient air temperature for operation |
-10…50 °C (without current derating) 50…60 °C (with current derating 1.5 % per °C) |
| operating altitude |
0...1000 m without current derating 1000...4000 m with current derating 1 % per 100 m |
| width | 420 mm |
| height | 350 mm |
| depth | 270 mm |
| net weight | 40 kg |
| IP degree of protection | IP00 |
|---|---|
| ambient air temperature for storage | -40…70 °C |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 53.0 kg |
| Package 1 Height | 43.5 cm |
| Package 1 width | 79.0 cm |
| Package 1 Length | 45.0 cm |
| Unit Type of Package 2 | P06 |
| Number of Units in Package 2 | 1 |
| Package 2 Weight | 53.0 kg |
| Package 2 Height | 77.0 cm |
| Package 2 width | 60.0 cm |
| Package 2 Length | 80.0 cm |
