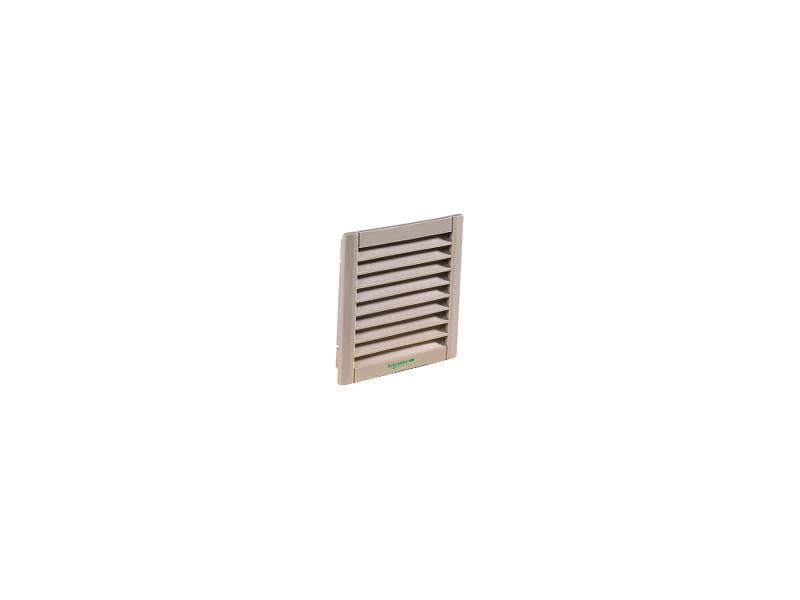

Schneider Electric Izlazna rešetka CEM 56 ; NSY17996
Schneider Outlet grille CEM 56...
VAT-exclusive price: 16.693,00 |
VAT-inclusive price: 20.031,60 |
Schneider Outlet grille CEM 56
| range |
ClimaSys
|
|
|---|---|---|
| Product |
ClimaSys CA
|
|
| range compatibility |
ClimaSys CV EMC fan
|
|
| product or component type |
Outlet grille
|
|
| accessory / separate part category |
Thermal management accessory
|
|
| accessory / separate part destination |
ClimaSys EMC ventilation system
|
|
| fixing mode |
By screws
Clipped |
|
| device composition |
1 outlet grille: front
1 metal frame: covering the plastic element 1 metal grille: attached to the frame 1 gasket: between the perimeter of the grille and the enclosure |
| material |
ABS (acrylonitrile butadiene-styrene)
|
|
|---|---|---|
| colour |
Outlet grille: grey (RAL 7035)
|
|
| cut-out dimensions |
125 x 125 mm
|
|
| height |
150 mm external:
|
|
| width |
150 mm external:
|
|
| depth |
31 mm external:
|
|
| IP degree of protection |
IP54
|
| Package 1 Weight |
0.280 kg
|
|
|---|---|---|
| Package 1 Height |
160.000 mm
|
|
| Package 1 width |
155.000 mm
|
|
| Package 1 Length |
35.000 mm
|
| REACh Regulation | ||
|---|---|---|
| REACh free of SVHC |
Yes
|
|
| EU RoHS Directive |
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration |
|
| Mercury free |
Yes
|
|
| RoHS exemption information | ||
| China RoHS Regulation |
China RoHS declaration
Product out of China RoHS scope. Substance declaration for your information |
| Warranty |
18 months
|
|---|
-
ClimaSys CA NSY17996
