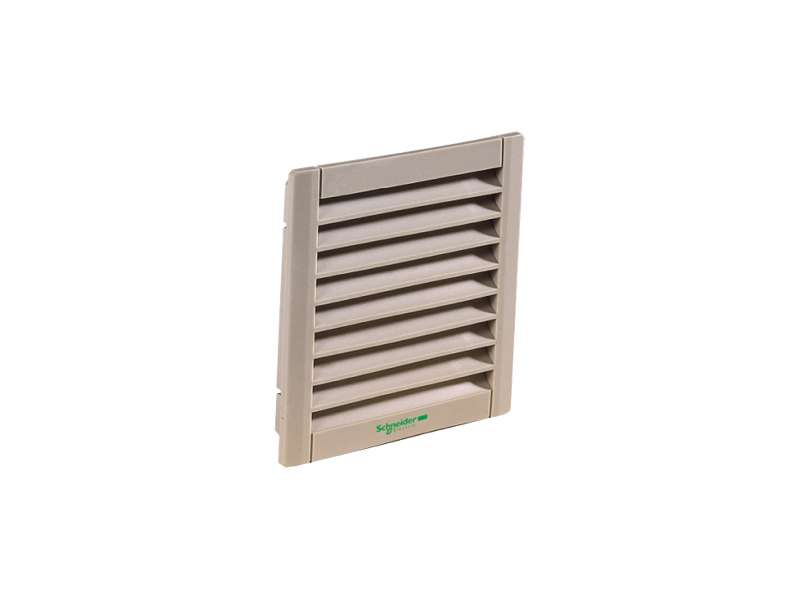

Schneider Electric Izlazna rešetka CEM 460;NSY17998
Outlet grille CEM 460...
VAT-exclusive price: 29.431,00 |
VAT-inclusive price: 35.317,20 |
Outlet grille CEM 460
| range |
ClimaSys
|
|
|---|---|---|
| Product |
ClimaSys CA
|
|
| range compatibility |
ClimaSys CV EMC fan
|
|
| product or component type |
Outlet grille
|
|
| accessory / separate part category |
Thermal management accessory
|
|
| accessory / separate part destination |
ClimaSys EMC ventilation system
|
|
| fixing mode |
By screws
Clipped |
|
| device composition |
1 outlet grille: front
1 metal frame: covering the plastic element 1 metal grille: attached to the frame 1 gasket: between the perimeter of the grille and the enclosure |
| material |
ABS (acrylonitrile butadiene-styrene)
|
|
|---|---|---|
| colour |
Outlet grille: grey (RAL 7035)
|
|
| cut-out dimensions |
291 x 291 mm
|
|
| height |
325 mm external:
|
|
| width |
325 mm external:
|
|
| depth |
36 mm external:
|
|
| IP degree of protection |
IP54
|
| Unit Type of Package 1 |
PCE
|
|
|---|---|---|
| Number of Units in Package 1 |
1
|
|
| Package 1 Weight |
1.24 kg
|
|
| Package 1 Height |
33.5 cm
|
|
| Package 1 width |
33.5 cm
|
|
| Package 1 Length |
5 cm
|
| REACh free of SVHC |
Yes
|
|
|---|---|---|
| EU RoHS Directive |
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration |
|
| Mercury free |
Yes
|
|
| RoHS exemption information | ||
| China RoHS Regulation |
China RoHS declaration
Product out of China RoHS scope. Substance declaration for your information |
| Warranty |
18 months
|
|---|
-
ClimaSys CA NSY17998
