Name: Schneider Electric Izlazna rešetka CEM 130; NSY17997
Brand: Schneider Electric
SKU: NSY17997
Price: 27466.80 RSD
Availability: OutOfStock

Schneider Electric Izlazna rešetka CEM 130; NSY17997

Outlet grille CEM 130...

Brand: Schneider Electric
Product Code: NSY17997
Availability: Check availability

VAT-exclusive price: 22.889,00

VAT-inclusive price: 27.466,80

Qnt:

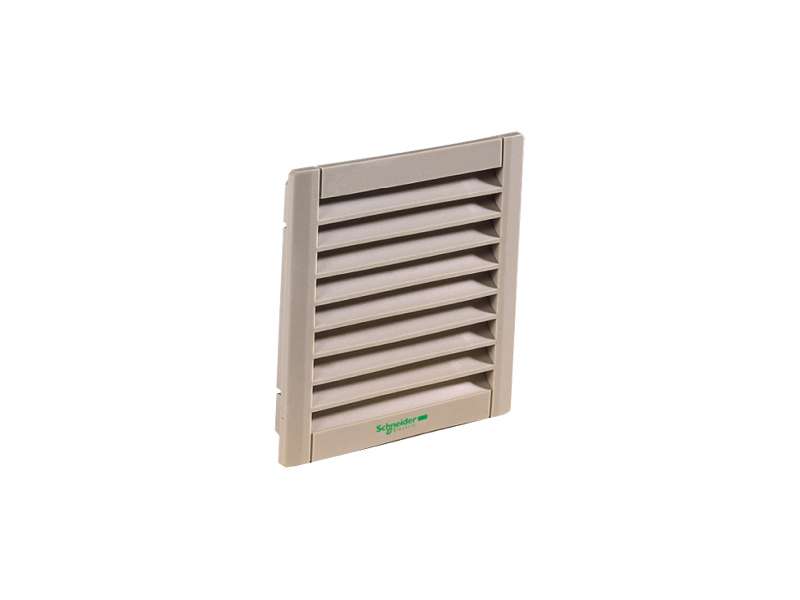

Outlet grille CEM 130

Main
range	ClimaSys
Product	ClimaSys CA
range compatibility	ClimaSys CV EMC fan
product or component type	Outlet grille
accessory / separate part category	Thermal management accessory
accessory / separate part destination	ClimaSys EMC ventilation system
fixing mode	By screws Clipped
device composition	1 outlet grille: front 1 metal frame: covering the plastic element 1 metal grille: attached to the frame 1 gasket: between the perimeter of the grille and the enclosure

Complementary
material	ABS (acrylonitrile butadiene-styrene)
colour	Outlet grille: grey (RAL 7035)
cut-out dimensions	223 x 223 mm
height	250 mm external:
width	250 mm external:
depth	36 mm external:
IP degree of protection	IP54

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Weight	746 g
Package 1 Height	26 cm
Package 1 width	25.5 cm
Package 1 Length	4.5 cm

Offer Sustainability
REACh free of SVHC	Yes
EU RoHS Directive	Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration
Mercury free	Yes
RoHS exemption information	Yes
China RoHS Regulation	China RoHS declaration Product out of China RoHS scope. Substance declaration for your information
