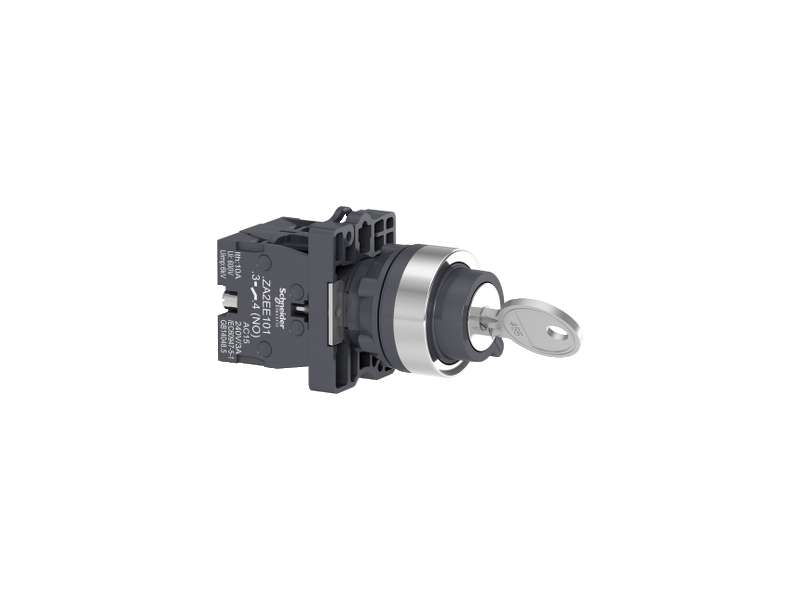

Complete selector switch, Easy Harmony XA2, plastic, black, 22mm, key 455, 3 positions, spring return to center, 2NO
Main
|
range of product |
Easy Harmony XA2 |
|
product or component type |
Complete selector switch |
|
device short name |
XA2 |
|
bezel material |
Plastic |
|
fixing collar material |
Plastic |
|
mounting diameter |
22 mm |
Complementary
|
fixing center |
>= 30 x 40 mm (panel) - thickness: 1…5 mm |
|
fixing mode |
Fixing nut: 2…2.4 N.m |
|
type of operator |
Spring return |
|
operator profile |
Key switch |
|
operator position information |
3 positions |
|
key number |
455 |
|
key withdrawal position |
Center |
|
contacts type and composition |
2 NO |
|
contact operation |
Slow-break |
|
mechanical durability |
100000 cycles |
|
connections - terminals |
, clamping capacity: <= 2 x 1.5 mm²
, clamping capacity: <= 1 x 2.5 mm²
, clamping capacity: >= 1 x 0.5 mm²
Faston terminals, connection size: 6.3 mm |
|
tightening torque |
0.8 N.m |
|
short-circuit protection |
10 A fuse type gL conforming to IEC 60269-1 |
|
[Ith] conventional free air thermal current |
10 A |
|
[Ui] rated insulation voltage |
600 V |
|
[Uimp] rated impulse withstand voltage |
6 kV conforming to IEC 60947-1 |
|
[Ie] rated operational current |
3 A at 240 V, AC-15, A600
0.27 A at 250 V, DC-13, Q600 |
|
electrical durability |
500000 cycles, AC-15, 3 A at 230 V, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-4
500000 cycles, DC-13, 0.2 A at 110 V, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-4 |
|
electrical reliability |
Λ < 10exp(-8) at 24 V |
|
width |
30 mm |
|
height |
42 mm |
|
depth |
85.7 mm |
|
net weight |
0.078 kg |
Environment
|
protective treatment |
TC |
|
ambient air temperature for storage |
-40…70 °C |
|
ambient air temperature for operation |
-20…55 °C |
|
overvoltage category |
Class I conforming to IEC 536 |
|
IP degree of protection |
IP54 conforming to IEC 60529 |
|
IK degree of protection |
IK03 conforming to IEC 60529 |
|
standards |
GB 14048.5
IEC 60947-1
GB 14048.1
IEC 60947-5-1 |
|
product certifications |
CE
CCC |
|
vibration resistance |
10 gn (f= 40…500 Hz) conforming to IEC 60068-2-6 |
|
shock resistance |
70 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
Packing Units
|
Unit Type of Package 1 |
PCE |
|
Number of Units in Package 1 |
1 |
|
Package 1 Weight |
77.0 g |
|
Package 1 Height |
3.0 cm |
|
Package 1 width |
3.5 cm |
|
Package 1 Length |
9.0 cm |
|
Unit Type of Package 2 |
BB1 |
|
Number of Units in Package 2 |
10 |
|
Package 2 Weight |
776.0 g |
|
Package 2 Height |
4.5 cm |
|
Package 2 width |
16.0 cm |
|
Package 2 Length |
22.0 cm |
|
Unit Type of Package 3 |
S02 |
|
Number of Units in Package 3 |
100 |
|
Package 3 Weight |
8.02 kg |
|
Package 3 Height |
15.0 cm |
|
Package 3 width |
30.0 cm |
|
Package 3 Length |
40.0 cm |
Main
|
range of product |
Easy Harmony XA2 |
|
product or component type |
Complete selector switch |
|
device short name |
XA2 |
|
bezel material |
Plastic |
|
fixing collar material |
Plastic |
|
mounting diameter |
22 mm |
Complementary
|
fixing center |
>= 30 x 40 mm (panel) - thickness: 1…5 mm |
|
fixing mode |
Fixing nut: 2…2.4 N.m |
|
type of operator |
Spring return |
|
operator profile |
Key switch |
|
operator position information |
3 positions |
|
key number |
455 |
|
key withdrawal position |
Center |
|
contacts type and composition |
2 NO |
|
contact operation |
Slow-break |
|
mechanical durability |
100000 cycles |
|
connections - terminals |
, clamping capacity: <= 2 x 1.5 mm²
, clamping capacity: <= 1 x 2.5 mm²
, clamping capacity: >= 1 x 0.5 mm²
Faston terminals, connection size: 6.3 mm |
|
tightening torque |
0.8 N.m |
|
short-circuit protection |
10 A fuse type gL conforming to IEC 60269-1 |
|
[Ith] conventional free air thermal current |
10 A |
|
[Ui] rated insulation voltage |
600 V |
|
[Uimp] rated impulse withstand voltage |
6 kV conforming to IEC 60947-1 |
|
[Ie] rated operational current |
3 A at 240 V, AC-15, A600
0.27 A at 250 V, DC-13, Q600 |
|
electrical durability |
500000 cycles, AC-15, 3 A at 230 V, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-4
500000 cycles, DC-13, 0.2 A at 110 V, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-4 |
|
electrical reliability |
Λ < 10exp(-8) at 24 V |
|
width |
30 mm |
|
height |
42 mm |
|
depth |
85.7 mm |
|
net weight |
0.078 kg |
Environment
|
protective treatment |
TC |
