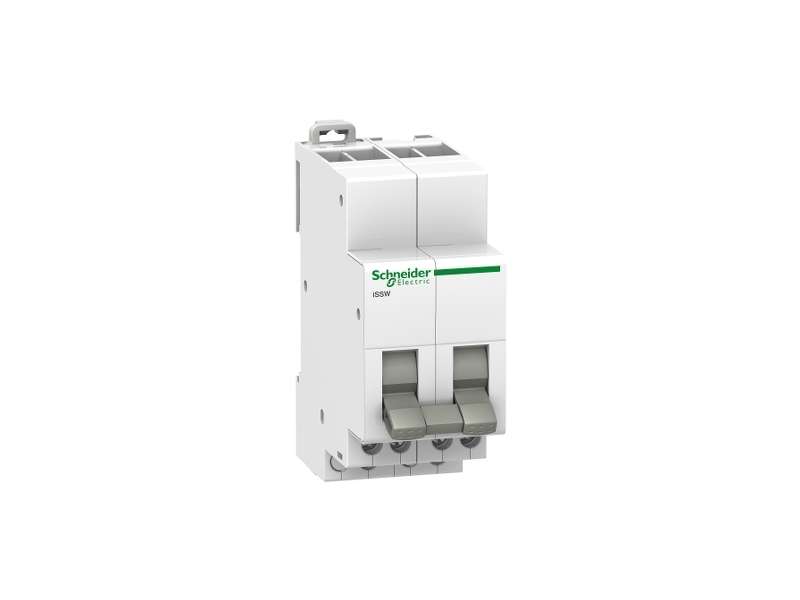

Schneider Electric Izborni prekidač - iSSW - 2 C/O - 20A - 250 V AC - 3 pozicije; A9E18074
linear switch - iSSW - 2 C/O - 20A - 250 V AC - 3 positions...
VAT-exclusive price: 2.760,00 |
VAT-inclusive price: 3.312,00 |
linear switch - iSSW - 2 C/O - 20A - 250 V AC - 3 positions
| range of product | Acti9 |
|---|---|
| Product name | Acti9 iSSW |
| Product or component type | Linear switch |
| Device short name | ISSW |
| Device application | Electrical circuit control |
| Contacts type and composition | 2 C/O |
| [Ue] rated operational voltage | 250 V AC 50/60 Hz |
| Standards |
IEC 60947-5-1 IEC 60669-1 |
| [Ie] rated operational current | 20 A |
|---|---|
| Control type | Toggle 3 positions |
| marking | 1 - 0 - 2 |
| Mounting mode | Clip-on |
| Mounting support | DIN rail |
| 9 mm pitches | 4 |
| Height | 82 mm |
| Width | 36 mm |
| Depth | 75 mm |
| Colour | White |
| Electrical durability | AC-22: 30000 cycles cos Phi = 0.8 |
| Connections - terminals |
Staggered tunnel terminal (downside) 2 cable(s) 0.5…2.5 mm² flexible Staggered tunnel terminal (downside) 2 cable(s) 0.5…2.5 mm² rigid without cable end |
| Wire stripping length | 9 mm |
| Tightening torque | 1 N.m |
| IP degree of protection | IP20 conforming to IEC 60529 |
|---|---|
| Tropicalisation | 2 |
| Pollution degree | 3 |
| Relative humidity | 95 % at 55 °C |
| Ambient air temperature for operation | -20…50 °C |
| Ambient air temperature for storage | -40…70 °C |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 3.500 cm |
| Package 1 Width | 7.500 cm |
| Package 1 Length | 9.000 cm |
| Package 1 Weight | 89.000 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 6 |
| Package 2 Height | 8.000 cm |
| Package 2 Width | 10.000 cm |
| Package 2 Length | 23.000 cm |
| Package 2 Weight | 583.000 g |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 54 |
| Package 3 Height | 30.000 cm |
| Package 3 Width | 30.000 cm |
| Package 3 Length | 40.000 cm |
| Package 3 Weight | 5.673 kg |
| Warranty | 18 months |
|---|
