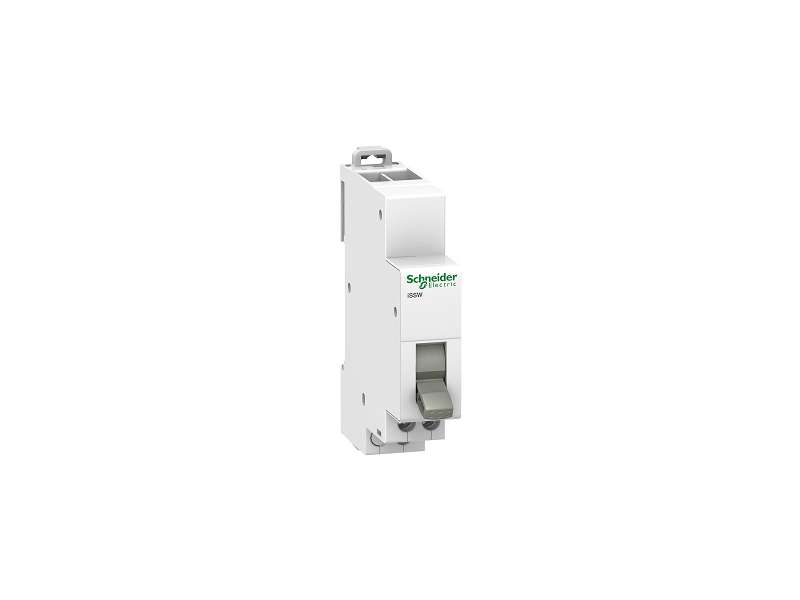

Schneider Electric Izborni prekidač - iSSW - 1 NO + 1 NC - 20A - 250 V AC - 2 pozicije ; A9E18072
linear switch - iSSW - 1 NO + 1 NC - 20A - 250 V AC - 2 positions; A9E18072...
VAT-exclusive price: 1.315,00 |
VAT-inclusive price: 1.578,00 |
linear switch - iSSW - 1 NO + 1 NC - 20A - 250 V AC - 2 positions; A9E18072
| range of product | Acti9 |
|---|---|
| Product name | Acti9 iSSW |
| Product or component type | Linear switch |
| Device short name | iSSW |
| Device application | Electrical circuit control |
| Contacts type and composition | 1 NO + 1 NC |
| [Ue] rated operational voltage | 250 V AC 50/60 Hz |
| Standards |
IEC 60669-1 IEC 60947-5-1 |
| [Ie] rated operational current | 20 A |
|---|---|
| Control type | Toggle 2 positions |
| marking | 0 - 1 |
| Mounting mode | Clip-on |
| Mounting support | DIN rail |
| 9 mm pitches | 2 |
| Height | 82 mm |
| Width | 18 mm |
| Depth | 75 mm |
| Colour | White |
| Electrical durability | AC-22: 30000 cycles cos Phi = 0.8 |
| Connections - terminals |
Staggered tunnel terminal (downside) 2 cable(s) 0.5…2.5 mm² flexible Staggered tunnel terminal (downside) 2 cable(s) 0.5…2.5 mm² rigid without cable end |
| Wire stripping length | 9 mm |
| Tightening torque | 1 N.m |
| IP degree of protection | IP20 conforming to IEC 60529 |
|---|---|
| Tropicalisation | 2 |
| Pollution degree | 3 |
| Relative humidity | 95 % at 55 °C |
| Ambient air temperature for operation | -20…50 °C |
| Ambient air temperature for storage | -40…70 °C |
