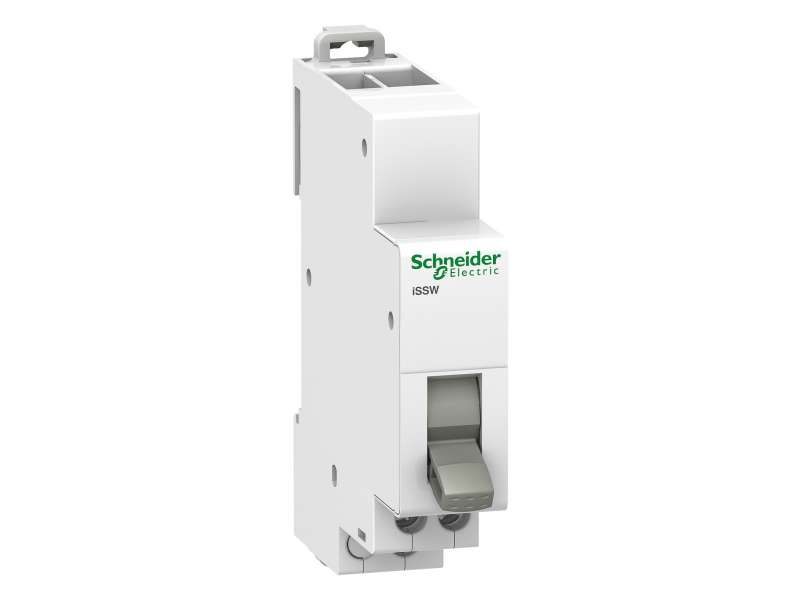

Schneider Electric Izborni prekidač - iSSW - 1 C/O - 20A - 250 V AC - 3 pozicije; A9E18073
Schneider linear switch - iSSW - 1 C/O - 20A - 250 V AC - 3 positions; A9E18073...
VAT-exclusive price: 1.840,00 |
VAT-inclusive price: 2.208,00 |
Schneider linear switch - iSSW - 1 C/O - 20A - 250 V AC - 3 positions; A9E18073
| range of product | Acti9 |
|---|---|
| product name | Acti9 iSSW |
| product or component type | Linear switch |
| device short name | iSSW |
| device application | Electrical circuit control |
| contacts type and composition | 1 C/O |
| [Ue] rated operational voltage | 250 V AC 50/60 Hz |
| Standards |
IEC 60669-1 IEC 60947-5-1 |
| [Ie] rated operational current | 20 A |
|---|---|
| control type | Toggle 3 positions |
| Marking | 1 - 0 - 2 |
| mounting mode | Clip-on |
| mounting support | DIN rail |
| 9 mm pitches | 2 |
| Height | 82 mm |
| width | 18 mm |
| Depth | 75 mm |
| colour | White |
| electrical durability | AC-22: 30000 cycles cos Phi = 0.8 |
| connections - terminals |
Staggered tunnel terminal (downside) 2 cable(s) 0.5…2.5 mm² flexible Staggered tunnel terminal (downside) 2 cable(s) 0.5…2.5 mm² rigid without cable end |
| wire stripping length | 9 mm |
| tightening torque | 1 N.m |
| IP degree of protection | IP20 conforming to IEC 60529 |
|---|---|
| tropicalisation | 2 |
| pollution degree | 3 |
| relative humidity | 95 % at 55 °C |
| Ambient air temperature for operation | -20…50 °C |
| Ambient air temperature for storage | -40…70 °C |
-
Acti 9 iSSW A9E18073
