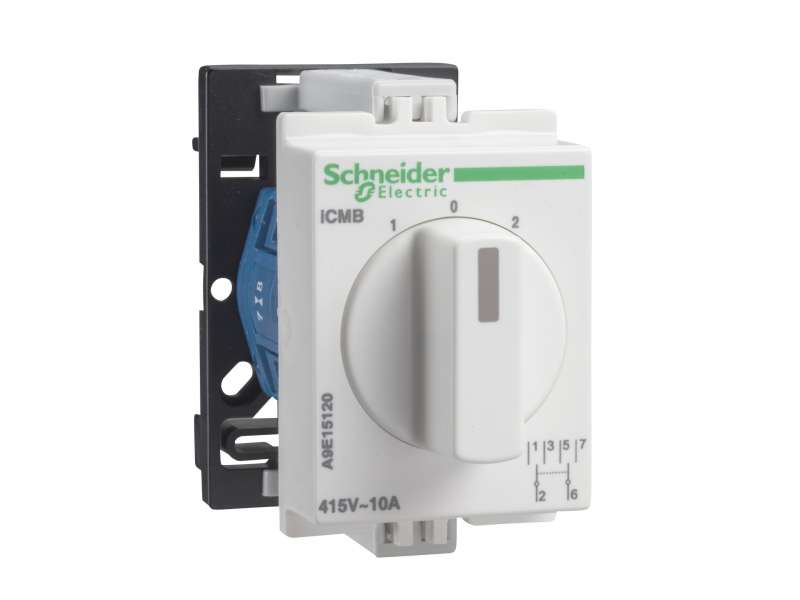

Schneider Electric Izborni prekidač iCMB 10 A 2P U 415V CA automatsko vracanje u položaj 0; A9E15120
2 pole switch with zero setting, iCMB; A9E15120...
VAT-exclusive price: 9.254,00 |
VAT-inclusive price: 11.104,80 |
2 pole switch with zero setting, iCMB; A9E15120
| range of product | Acti9 |
|---|---|
| Product name | Acti9 iCM |
| Product or component type | Selector switch |
| Device short name | iCMB |
| Device application | Electrical circuit control |
| Contacts type and composition | 2 C/O |
| [Ue] rated operational voltage | 415 V AC 50/60 Hz |
| standards |
VDE 0660 part 107 IEC 60947-3 EN 60947-3 UL |
| [Ie] rated operational current | 10 A |
|---|---|
| Maximum operating voltage | 440 V |
| Control type | Rotary handle 3 positions |
| Marking | 1 - 0 - 2 |
| Mounting mode | Clip-on |
| Mounting support | DIN rail |
| 9 mm pitches | 4 |
| Height | 60 mm |
| Width | 36 mm |
| Depth | 75 mm |
| Net weight | 58 g |
| Colour | White |
| Mechanical durability | 1000000 cycles |
| Electrical durability | AC-21A: 200000 cycles |
| Connections - terminals | Jumper terminals1.5 mm² |
| Wire stripping length | 9 mm for downside connection |
| Tightening torque | 1 N.m downside |
| IP degree of protection | IP20 conforming to IEC 60529 |
|---|---|
| Ambient air temperature for operation | -20…55 °C |
| Ambient air temperature for storage | -25…80 °C |
