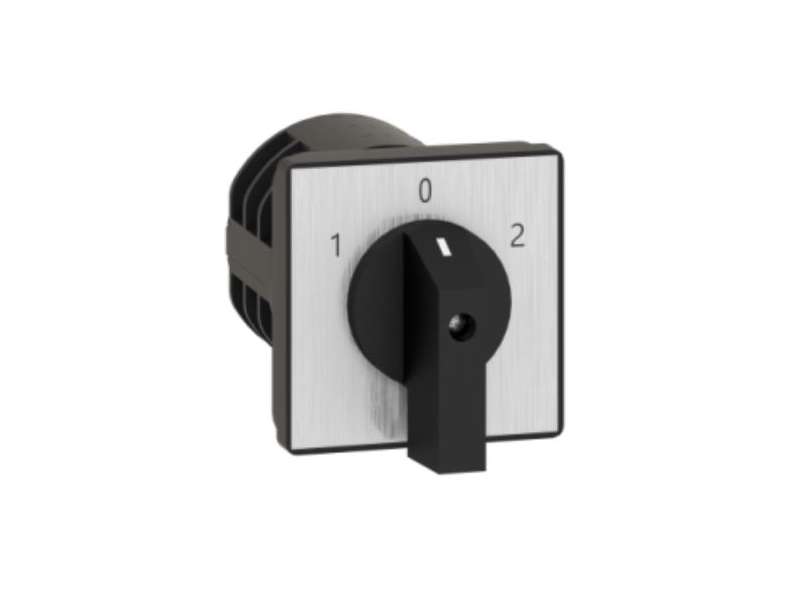

Schneider Electric Izborni grebenasti prekidač - 4P - 60° - 63 A - vijčana montaža; K63H004UP
Harmony K1, K2, Cam changeover switch, 4 poles, with off position, 60° switching angle, 63 A, multi-fixing; K63H004UP...
VAT-exclusive price: 23.181,00 |
VAT-inclusive price: 27.817,20 |
Harmony K1, K2, Cam changeover switch, 4 poles, with off position, 60° switching angle, 63 A, multi-fixing; K63H004UP
| Range of product | Harmony K |
|---|---|
| Product or component type | Complete cam switch |
| Component name | K63 |
| [Ith] conventional free air thermal current | 63 A |
| Mounting location | Front |
| Fixing mode | 4 holes |
| cam switch head type | With front plate 64 x 64 mm |
| type of operator | Black handle |
| Rotary handle padlocking | Without |
| presentation of legend | With metallic legend, 1 - 0 - 2 black marking |
| Cam switch function | Changeover switch |
| Return | Without |
| Off position | With Off position |
| Poles description | 4P |
| Switching positions |
Left: 0° - 300° Right: 0° - 60° |
| IP degree of protection |
IP40 conforming to IEC 529 IP40 conforming to NF C 20-010 |
| Switching angle | 60 ° |
|---|---|
| [Ui] rated insulation voltage |
690 V (pollution degree 3) conforming to EN 60947-1 690 V (pollution degree 3) conforming to IEC 60947-1 |
| Short-circuit current | 10000 A |
| short-circuit protection | 80 A cartridge fuse, type gG |
| [Uimp] rated impulse withstand voltage |
6 kV conforming to EN 947-1 6 kV conforming to IEC 947-1 |
| Contact operation | Slow-break |
| Positive opening | With |
| electrical connection |
Captive screw clamp terminals flexible, clamping capacity: 2 x 10 mm² Captive screw clamp terminals solid, clamping capacity: 2 x 16 mm² |
| Tightening torque | 2.5 N.m |
| switching capacity in mA |
20000 mA DC at 140 V 3 contact(s) for inductive load (T = 50 ms) 20000 mA DC at 48 V 1 contact(s) for inductive load (T = 50 ms) 20000 mA DC at 95 V 2 contact(s) for inductive load (T = 50 ms) 30000 mA DC at 120 V 2 contact(s) for resistive load (T = 1 ms) 30000 mA DC at 180 V 3 contact(s) for resistive load (T = 1 ms) 30000 mA DC at 60 V 1 contact(s) for resistive load (T = 1 ms) 55000 mA DC at 30 V 1 contact(s) for inductive load (T = 50 ms) 55000 mA DC at 60 V 2 contact(s) for inductive load (T = 50 ms) 55000 mA DC at 90 V 3 contact(s) for inductive load (T = 50 ms) 63000 mA DC at 140 V 3 contact(s) for resistive load (T = 1 ms) 63000 mA DC at 24 V 1 contact(s) for inductive load (T = 50 ms) 63000 mA DC at 24 V 1 contact(s) for resistive load (T = 1 ms) 63000 mA DC at 48 V 1 contact(s) for resistive load (T = 1 ms) 63000 mA DC at 48 V 2 contact(s) for inductive load (T = 50 ms) 63000 mA DC at 48 V 2 contact(s) for resistive load (T = 1 ms) 63000 mA DC at 70 V 3 contact(s) for inductive load (T = 50 ms) 63000 mA DC at 70 V 3 contact(s) for resistive load (T = 1 ms) 63000 mA DC at 95 V 2 contact(s) for resistive load (T = 1 ms) |
| Mechanical durability | 300000 cycles |
| CAD overall width | 64 mm |
| CAD overall height | 64 mm |
| CAD overall depth | 154 mm |
| Product weight | 0.68 kg |
