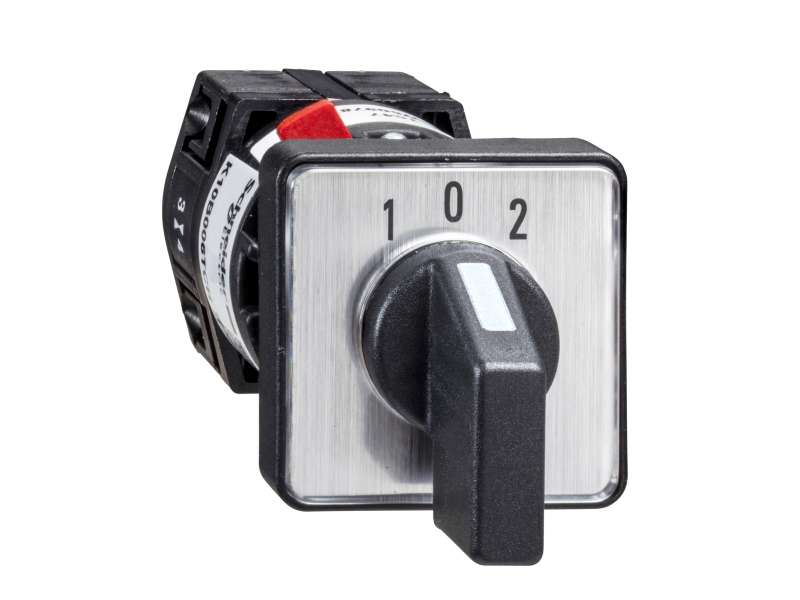

Schneider Electric Izborni grebenasti prekidač - 1P - 30° - 10 A - za Ø 16 ili 22 mm;K10B006TCH
Cam changeover switch - 1 pole - 30° - 10 A - for Ø 16 or 22 mm...
VAT-exclusive price: 4.078,00 |
VAT-inclusive price: 4.893,60 |
Cam changeover switch - 1 pole - 30° - 10 A - for Ø 16 or 22 mm
| range of product |
Harmony K
|
|
|---|---|---|
| product or component type |
Complete cam switch
|
|
| component name |
K10
|
|
| [Ith] conventional free air thermal current |
10 A
|
|
| product mounting |
Front mounting
|
|
| fixing mode |
Ø 16 or 22 mm hole
|
|
| cam switch head type |
With front plate 30 x 30 mm
|
|
| type of operator |
Black handle
|
|
| rotary handle padlocking |
Without
|
|
| presentation of legend |
With metallic legend, 1 - 0 - 2 black marking
|
|
| cam switch function |
Changeover switch
|
|
| return |
Spring return from 330° to 0°
Spring return from 30° to 0° |
|
| off position |
With Off position
|
|
| poles description |
1P
|
|
| switching positions |
Left: 0° - 330°
Right: 0° - 30° |
|
| IP degree of protection |
Contact block: IP20
Operating head: IP65 conforming to IEC 60529 |
| switching angle |
30 °
|
|
|---|---|---|
| [Ui] rated insulation voltage |
440 V (pollution degree 3) conforming to IEC 60947-1
|
|
| rated operational power in W |
370 W AC-23A, 110/120 V 1 phase
750 W AC-23A, 220/240 V 1 phase |
|
| rated power in hp |
0.33 hp at 110/120 V AC, 1 phase
0.75 hp at 220/240 V AC, 1 phase |
|
| [Ie] rated operational current AC |
10 A at 400 V AC-1
10 A at 400 V AC-21A 3 A at 240 V AC-15 6 A at 120 V AC-15 |
|
| [Ie] rated operational current DC |
10 A at 24 V resistive load
0.3 A at 220 V resistive load 0.7 A at 110 V resistive load |
|
| electrical durability |
100000000 cycles
|
|
| short-circuit protection |
10 A cartridge fuse, type gG
|
|
| [Uimp] rated impulse withstand voltage |
4 kV conforming to IEC 60947-1
|
|
| contact operation |
Slow-break
|
|
| electrical connection |
Captive screw clamp terminals, clamping capacity: 2 x 1.5 mm²
|
|
| mechanical durability |
1000000 cycles
|
|
| CAD overall width |
30 mm
|
|
| CAD overall height |
30 mm
|
|
| CAD overall depth |
76 mm
|
|
| net weight |
0.035 kg
|
| standards |
CENELEC EN 50013
EN/IEC 60947-3 EN/IEC 60947-5-1 |
|
|---|---|---|
| product certifications |
CULus
|
|
| protective treatment |
TC
|
|
| ambient air temperature for operation |
-20…55 °C
|
|
| ambient air temperature for storage |
-40…70 °C
|
|
| electrical shock protection class |
Class II conforming to IEC 60536
|
| Unit Type of Package 1 |
PCE
|
|
|---|---|---|
| Number of Units in Package 1 |
1
|
|
| Package 1 Weight |
50.9 g
|
|
| Package 1 Height |
4 cm
|
|
| Package 1 width |
4.1 cm
|
|
-
Harmony K K10B006TCH
