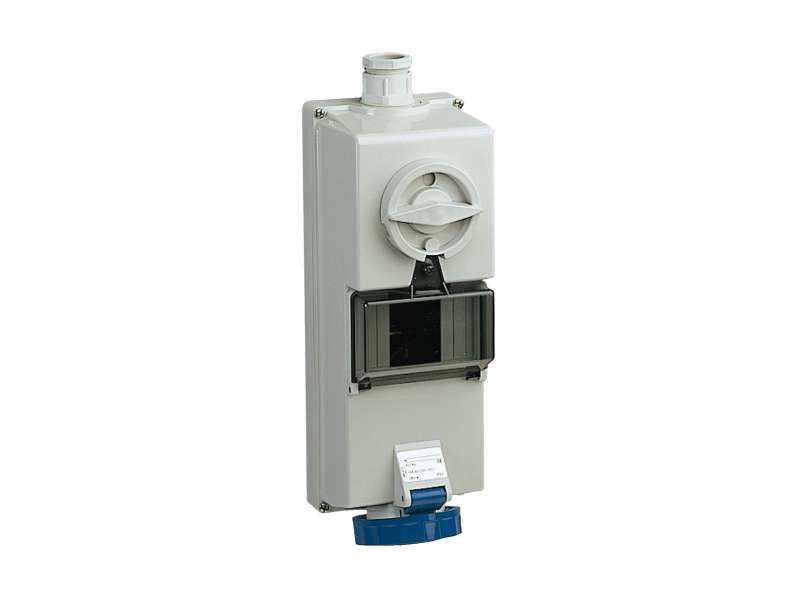

Schneider Electric Isoblock utičnica sa blokadom - 16 A - 2P + E - 200...250 V AC - IP65 - nadzidna ; 82754
Isoblock interlocked socket - 16 A - 2P + E - 200...250 V AC - IP65 - wall...
VAT-exclusive price: 13.929,00 |
VAT-inclusive price: 16.714,80 |
Isoblock interlocked socket - 16 A - 2P + E - 200...250 V AC - IP65 - wall
| range |
PratiKa
|
|
|---|---|---|
| product or component type |
Interlocked socket
|
|
| device short name |
Isoblock socket
|
|
| plug, socket category |
Low voltage
|
|
| industrial socket type |
B16
|
|
| poles description |
2P + E
|
|
| network type |
AC
|
|
| outlet standard |
Industrial
|
| mounting mode |
Wall-mounted
|
|
|---|---|---|
| [In] rated current |
16 A
|
|
| [Ue] rated operational voltage |
200...250 V
|
|
| network frequency |
50/60 Hz
|
|
| ground lug clockwise position |
6 h
|
|
| protection type |
Without protection
|
|
| product compatibility |
Modular device
|
|
| total number of 18 mm modules |
4.5
|
|
| plug, socket material |
Housing: self-extinguishing engineering polymer
|
|
| contacts material |
Sleeves: nickel plated brass
|
|
| connections - terminals |
Captive screws
|
|
| maximum cable cross section |
10 mm²
|
|
| maximum cable outer diameter |
25 mm
|
|
| cable entry |
Cable gland
|
|
| thread type |
Pg 21
|
|
| net weight |
0.87 kg
|
|
| base dimension |
144 x 318 mm
|
|
| height |
318 mm
|
|
| width |
144 mm
|
|
| depth |
147 mm
|
|
| colour |
Grey (RAL 7035)
|
|
| voltage colour |
Blue
|
| standards |
IEC 60309-2
IEC 60309-1 |
|
|---|---|---|
| IP degree of protection |
IP65 conforming to IEC 60529
|
|
| IK degree of protection |
IK10 conforming to EN 62262
|
|
| fire resistance |
850 °C conforming to IEC 60695-2-11
|
|
| relative humidity |
50 % at 40 °C
70 % at 30 °C 90 % at 20 °C |
|
| ambient air temperature for operation |
35 °C ( 86400 s )
-25…40 °C |
| Unit Type of Package 1 |
PCE
|
|
|---|---|---|
| Number of Units in Package 1 |
1
|
|
| Package 1 Weight |
942 g
|
|
| Package 1 Height |
11 cm
|
|
| Package 1 width |
12 cm
|
|
| Package 1 Length |
31 cm
|
|
| Unit Type of Package 2 |
S03
|
|
| Number of Units in Package 2 |
4
|
-
Pratika 82754
