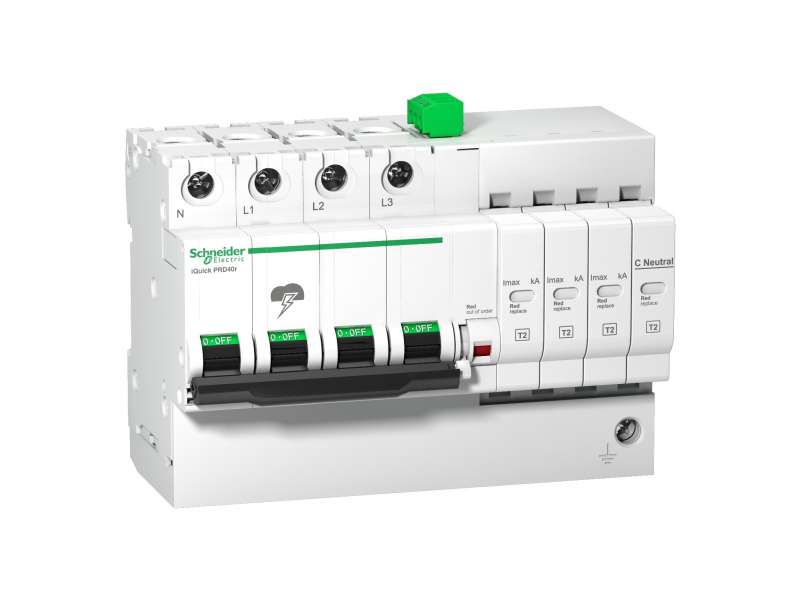

Schneider Electric IQuick PRD40r modularni odvodnik prenapona- 3P + N - 350V -sa daljinskom signal.;A9L16294
IQuick PRD40r modular surge arrester - 3 poles + N - 350V - with remote transfer...
VAT-exclusive price: 26.067,00 |
VAT-inclusive price: 31.280,40 |
IQuick PRD40r modular surge arrester - 3 poles + N - 350V - with remote transfer
| range of product |
Acti 9
|
|
|---|---|---|
| product name |
Acti 9 iQuick PRD
|
|
| product or component type |
Surge arrester with pluggable cartridge
|
|
| device short name |
IQuick PRD40r
|
|
| device application |
Distribution
|
|
| poles description |
3P + N
|
|
| remote signalling |
With
|
|
| signal contacts composition |
1 SD (1 C/O)
|
|
| surge arrester type |
Electrical distribution network
|
|
| earthing system |
TN-S
TT |
| surge arrester class type |
Type 2
|
|
|---|---|---|
| surge arrester technology |
MOV + GDT
|
|
| [Ue] rated operational voltage |
230/400 V AC (+/- 10 %) at 50/60 Hz
|
|
| [In] nominal discharge current |
Common mode: 20 kA (L/PE)
Common mode: 20 kA (N/PE) Differential mode: 20 kA (L/N) |
|
| [Imax] maximum discharge current |
Common mode: 40 kA L/PE
Common mode: 40 kA N/PE Differential mode: 40 kA L/N |
|
| [Uc] maximum continuous operating voltage |
Common mode: 264 V N/PE
Common mode: 350 V L/PE Differential mode: 350 V L/N |
|
| maximum [Up] voltage protection level |
Common mode <1.5 kV type 2 L/PE
Common mode <1.5 kV type 2 N/PE Differential mode <2.5 kV type 2 L/N |
|
| disconnector device type |
Integrated circuit breaker - Icu 20 kA
|
|
| [Isccr] short-circuit current rating |
20 kA
|
|
| signalling circuit voltage |
2 A/250 V AC 50/60 Hz
|
|
| mounting mode |
Clip-on
|
|
| mounting support |
DIN rail
|
|
| 9 mm pitches |
14.7
|
|
| height |
94 mm
|
|
| width |
131.5 mm
|
|
| depth |
75.9 mm
|
|
| net weight |
0.86 kg
|
|
| colour |
White (RAL 9003)
|
|
| response time |
<= 25 ns
|
|
| connections - terminals |
Tunnel type terminal (upside) 2.5…35 mm²
Tunnel type terminal (downside) 2.5…25 mm² |
|
| tightening torque |
2.5 N.m
|
| standards |
EN 61643-11:2012
IEC 61643-11:2011 |
|
|---|---|---|
| product certifications |
CE
|
|
| quality labels |
KEMA-KEUR
NF |
|
| IP degree of protection |
IP40 on front face: conforming to IEC 60529
IP20 built-in: conforming to IEC 60529 |
|
| IK degree of protection |
IK05 conforming to IEC 62262
|
|
| relative humidity |
5…90 %
|
|
| operating altitude |
2000 m
|
|
| ambient air temperature for operation |
-25…60 °C
|
|
| ambient air temperature for storage |
-40…70 °C
|
| Unit Type of Package 1 |
PCE
|
|
|---|---|---|
| Number of Units in Package 1 |
1
|
|
| Package 1 Weight |
890 g
|
|
-
Acti 9 iQuick-PF iQuick-PRD A9L16294
