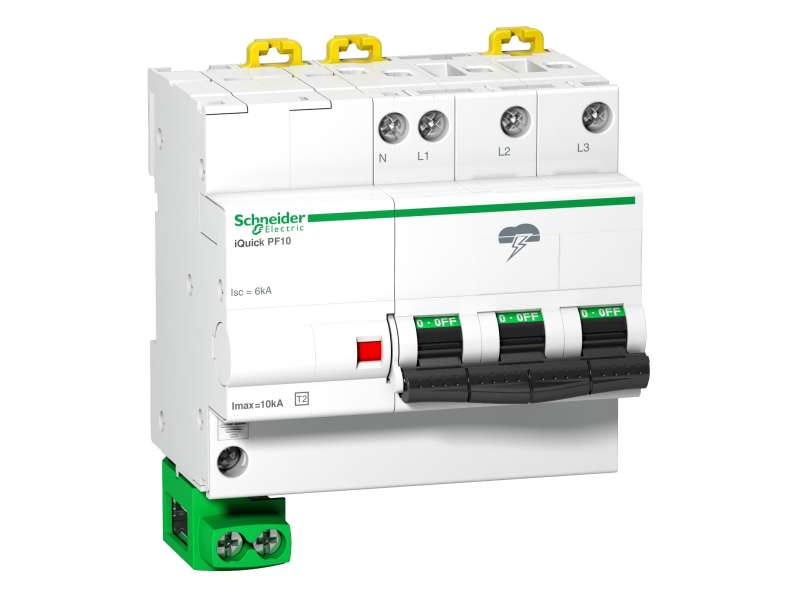

IQuick PF modular surge arrester - 3 poles + N - 275V
| range of product |
Acti 9
|
|
|---|---|---|
| product name |
Acti 9 PF
|
|
| product or component type |
Surge arrester
|
|
| device short name |
IQuick PF
|
|
| device application |
Distribution
|
|
| poles description |
3P + N
|
|
| remote signalling |
Without
|
|
| surge arrester type |
Electrical distribution network
|
|
| earthing system |
TT
TN-S |
| surge arrester class type |
Type 2
|
|
|---|---|---|
| surge arrester technology |
MOV + GDT
|
|
| [Ue] rated operational voltage |
230/400 V AC (+/- 10 %) at 50/60 Hz
|
|
| [In] nominal discharge current |
Common mode: 20 kA (N/PE)
Differential mode: 5 kA (L/N) |
|
| [Imax] maximum discharge current |
Common mode: 20 kA N/PE
Differential mode: 10 kA L/N |
|
| [Uc] maximum continuous operating voltage |
Differential mode: 275 V L/N
Common mode: 275 V L/PE |
|
| maximum [Up] voltage protection level |
Common mode <1.5 kV type 2 L/PE
Differential mode <1.5 kV type 2 L/N |
|
| [Ut] temporary overvoltage |
337 V L/N 5 s withstand
1200 V N/PE 200 ms safe failure mode 442 V L/PE 5 s withstand |
|
| [If] follow current |
0.1 kA common mode N/PE
|
|
| disconnector device type |
Integrated circuit breaker - Icu 6 kA
|
|
| [Isccr] short-circuit current rating |
6 kA
|
|
| [Isccr] short-circuit current rating : double fault |
6 kA
|
|
| mounting mode |
Clip-on
|
|
| mounting support |
DIN rail
|
|
| 9 mm pitches |
9.8
|
|
| height |
106.7 mm
|
|
| width |
88.4 mm
|
|
| depth |
74.1 mm
|
|
| net weight |
640 g
|
|
| colour |
White (RAL 9003)
|
|
| response time |
<= 25 ns
|
|
| [Ipe] Ground residual current |
1 mA
|
|
| connections - terminals |
Tunnel type terminal (L/N) 1…16 mm² rigid
Tunnel type terminal (ground) 10…25 mm² rigid Tunnel type terminal (L/N) 1…16 mm² flexible Tunnel type terminal (ground) 10…25 mm² flexible Tunnel type terminal (L/N) 1…16 mm² flexible with ferrule Tunnel type terminal (ground) 10…25 mm² flexible with ferrule |
|
| wire stripping length |
13 mm
|
|
| tightening torque |
2 N.m
|
| standards |
EN 61643-11:2012
IEC 61643-11:2011 |
|
|---|---|---|
| product certifications |
CE
|
|
| quality labels |
NF
|
|
| IP degree of protection |
IP40 on front face: conforming to IEC 60529
IP20 built-in: conforming to IEC 60529 |
|
| IK degree of protection |
IK03 conforming to IEC 62262
|
|
| relative humidity |
5…95 %
|
|
| ambient air temperature for operation |
-25…70 °C
|
|
| ambient air temperature for storage |
-40…80 °C
|
| Unit Type of Package 1 |
PCE
|
|---|
-
Acti 9 iQuick-PF iQuick-PRD A9L16618
