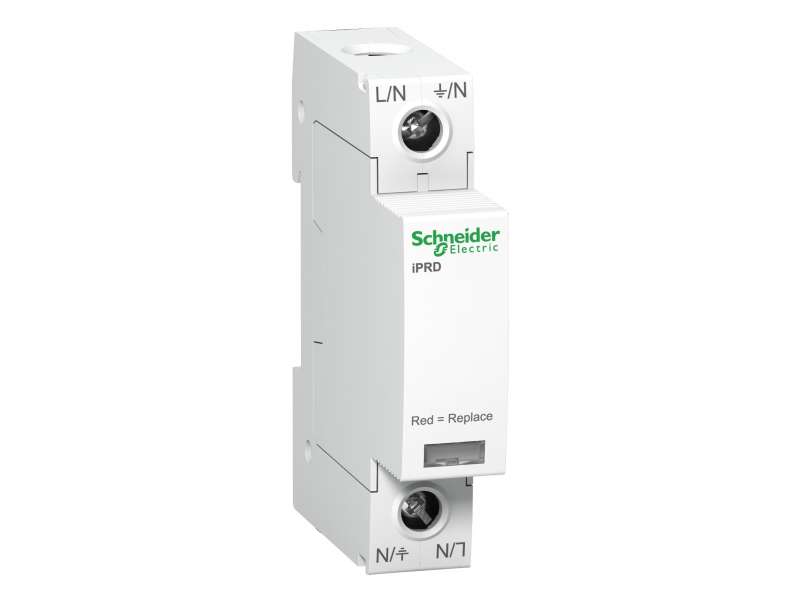

Name: Schneider Electric IPRD8 modularni odvodnik prenapona - 1P - 350V ; A9L08100
Brand: Schneider Electric
SKU: A9L08100
Price: 4352.40 RSD
Availability: OutOfStock

Schneider Electric IPRD8 modularni odvodnik prenapona - 1P - 350V ; A9L08100

iPRD8 modular surge arrester - 1P - 350V...

Brand: Schneider Electric
Product Code: A9L08100
Availability: Check availability

VAT-exclusive price: 3.627,00

VAT-inclusive price: 4.352,40

Qnt:

Description
Specification

iPRD8 modular surge arrester - 1P - 350V

Main
range of product	Acti 9
product name	Acti 9 iPRD
product or component type	Surge arrester with pluggable cartridge
device short name	IPRD8
device application	Distribution
poles description	1P
remote signalling	Without
surge arrester type	Electrical distribution network
earthing system	TN-C IT 230
[Uoc] open circuit voltage	10 kV type 3 common mode L/PE

Complementary
surge arrester class type	Type 2 + 3
surge arrester technology	MOV
[Ue] rated operational voltage	230/400 V AC (+/- 10 %) at 50/60 Hz
[In] nominal discharge current	Common mode: 2.5 kA (L/PE) Common mode: 2.5 kA (N/PE)
[Imax] maximum discharge current	Common mode: 8 kA L/PE
[Uc] maximum continuous operating voltage	Common mode: 350 V L/PE Common mode: 350 V N/PE
maximum [Up] voltage protection level	Common mode <1 kV type 2 L/PE Common mode <1 kV type 3 L/PE
[Ut] temporary overvoltage	337 V L/N 5 s withstand 1200 V N/PE 200 ms safe failure mode
disconnector device type	Associated circuit breaker iC60L 10 A curve C - Icu 25 kA Associated circuit breaker iC60N 10 A curve C - Icu 10 kA Associated circuit breaker iC60H 10 A curve C - Icu 15 kA Associated fuse gG 25 A - Icu 15 kA Associated fuse gG 80 A - Icu 50 kA
[Isccr] short-circuit current rating	50 kA
mounting mode	Clip-on
mounting support	DIN rail
9 mm pitches	2
height	85 mm
width	18 mm
depth	69 mm
net weight	0.11 kg
colour	White (RAL 9003)
response time	<= 25 ns
[Ipe] Ground residual current	0.003 mA 0.6 mA
connections - terminals	Tunnel type terminal (downside) 2.5…35 mm² Tunnel type terminal (upside) 2.5…35 mm²
tightening torque	2.5 N.m

Environment
standards	EN 61643-11:2012 IEC 61643-11:2011
product certifications	CE
quality labels	NF KEMA-KEUR
IP degree of protection	IP40 on front face: conforming to IEC 60529 IP20 built-in: conforming to IEC 60529
IK degree of protection	IK03 conforming to IEC 62262
relative humidity	5…95 %
operating altitude	2000 m
ambient air temperature for operation	-25…60 °C
ambient air temperature for storage	-40…85 °C

Packing Units
Package 1 Weight	0.130 kg
Package 1 Height	0.200 dm
Package 1 width	0.800 dm
Package 1 Length	0.900 dm

Offer Sustainability
Sustainable offer status	Green Premium product
REACh Regulation	REACh Declaration
REACh free of SVHC	Yes
EU RoHS Directive	Compliant EU RoHS Declaration
Toxic heavy metal free	Yes
Mercury free	Yes
RoHS exemption information	Yes
China RoHS Regulation	China RoHS declaration Pro-active China RoHS declaration (out of China RoHS legal scope)
Environmental Disclosure	Product Environmental Profile
Circularity Profile	End of Life Information
