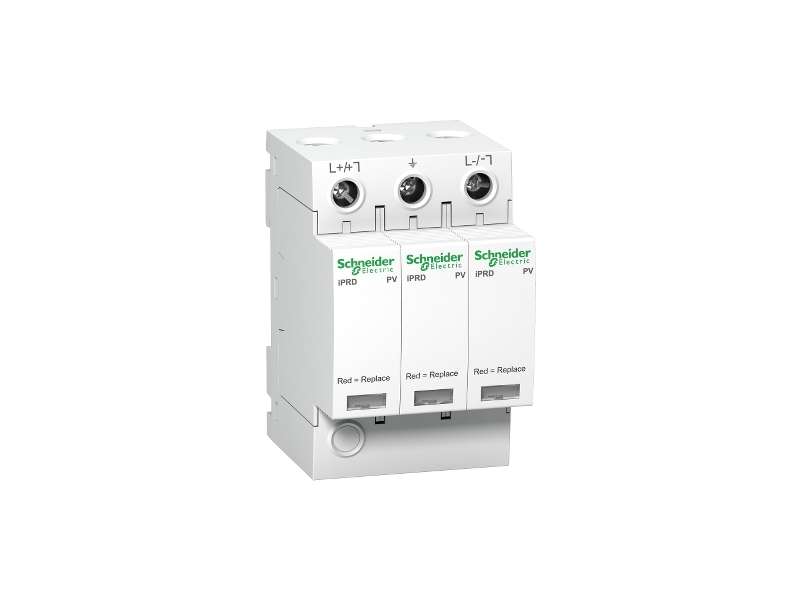

Schneider Electric IPRD-DC 40r 800PV modularni odvodnik prenapona - 2P - 840VDC - sa daljinskim transferom;A9L40271
iPRD-DC 40r 800PV modular surge arrester - 2P - 840VDC - with remote transfert...
VAT-exclusive price: 16.778,00 |
VAT-inclusive price: 20.133,60 |
iPRD-DC 40r 800PV modular surge arrester - 2P - 840VDC - with remote transfert
| range of product | Acti 9 |
|---|---|
| product name | Acti9 iPRD PV-DC |
| device short name | IPRD PV-DC |
| product or component type | Surge arrester with pluggable cartridge |
| poles description | 2P |
| output type | Contact (volt-free) |
| signal contacts composition | 1 SD (1 C/O) |
| surge arrester type | Electrical distribution network |
| [Uoc] open circuit voltage | 666 V |
| surge arrester class type | Type 2 |
|---|---|
| surge arrester technology | MOV |
| [Ue] rated operational voltage | 800 V +/- 10 % DC |
| [In] nominal discharge current | 15 kA |
| [Imax] maximum discharge current | 40 kA |
| [Ucpv] maximum continuous operating voltage |
Differential mode: 800 V L+/L- Common mode: 800 V L+/PE Common mode: 800 V L-/PE |
| maximum [Up] voltage protection level |
Differential mode <3 kV type 2 L+/L- Common mode <3 kV type 2 L+/PE Common mode <3 kV type 2 L-/PE |
| disconnector device type | Integrated disconnector |
| local signalling | White/red flag |
| signalling circuit voltage | AC: 250 V 50/60 Hz |
| signalling output current | 0.25 A |
| mounting mode | Clip-on |
| mounting support | DIN rail |
| 9 mm pitches | 6 |
| height | 85 mm |
| width | 54 mm |
| depth | 69 mm |
| net weight | 400 g |
| colour | White (RAL 9003) |
| response time | <= 25 ns |
| connections - terminals |
Tunnel type terminal 2.5…25 mm² rigid Tunnel type terminal 2.5…16 mm² flexible Tunnel type terminal 2.5…16 mm² flexible stranded |
| wire stripping length | 14 mm |
| tightening torque | 3.5 N.m |
| standards |
EN 50539-11:2013 UTE C 61740-51 |
|---|---|
| product certifications | CE |
| IP degree of protection |
IP40 on front face: IP20 on terminal: |
| IK degree of protection | IK03 |
| relative humidity | 5…95 % |
| operating altitude | 2000 m |
| ambient air temperature for operation | -25…60 °C |
| ambient air temperature for storage | -40…85 °C |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 348.0 g |
| Package 1 Height | 7.8 cm |
| Package 1 width | 6.4 cm |
| Package 1 Length | 9.2 cm |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 36 |
| Package 2 Weight | 13.567 kg |
| Package 2 Height | 30.0 cm |
| Package 2 width | 30.0 cm |
| Package 2 Length | 40.0 cm |
| Unit Type of Package 3 | BB1 |
| Number of Units in Package 3 | 4 |
| Package 3 Weight | 1.446 kg |
| Package 3 Height | 8.5 cm |
| Package 3 width | 10.2 cm |
| Package 3 Length | 27.7 cm |
| Warranty | 18 months |
|---|
