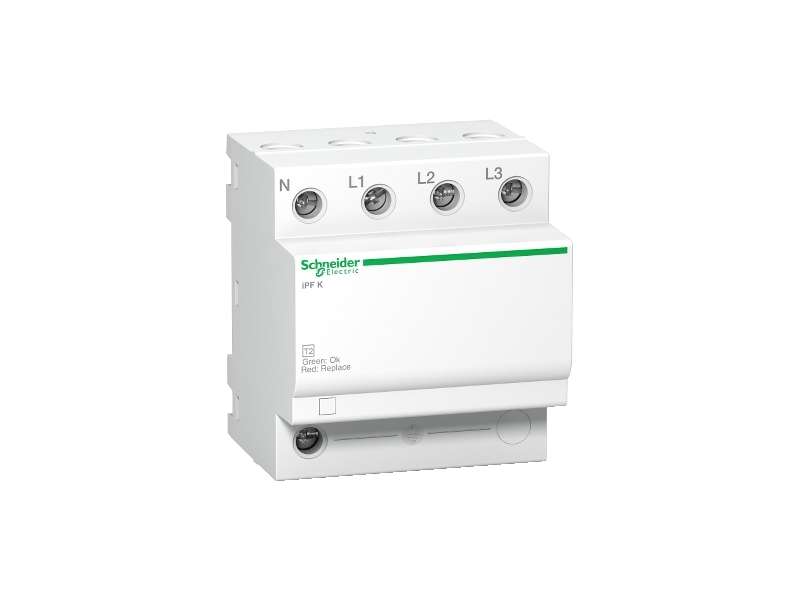

Schneider Electric IPF K 65 modularni odvodnik prenapona - 3P + N - 340V;A9L15586
iPF K 65 modular surge arrester - 3 poles + N - 340V...
VAT-exclusive price: 20.873,00 |
VAT-inclusive price: 25.047,60 |
iPF K 65 modular surge arrester - 3 poles + N - 340V
| range of product | Acti 9 |
|---|---|
| product name | Acti9 iPF K |
| product or component type | Surge arrester |
| device short name | IPF K |
| device application | Distribution |
| standards | IEC 61643-11:2011 |
| product certifications |
CE EAC |
| poles description | 3P + N |
| remote signalling | Without |
| surge arrester type | Electrical distribution network |
| earthing system |
TN-S TT |
| surge arrester class type | Type 2 |
|---|---|
| surge arrester technology | MOV + GDT |
| [Ue] rated operational voltage | 230/400 V AC (+/- 10 %) at 50/60 Hz |
| [In] nominal discharge current |
Common mode: 20 kA (L/PE) Common mode: 20 kA (N/PE) Differential mode: 20 kA (L/N) |
| [Imax] maximum discharge current |
Common mode: 65 kA L/PE Common mode: 65 kA N/PE Differential mode: 65 kA L/N |
| [Uc] maximum continuous operating voltage |
Common mode: 260 V N/PE Differential mode: 340 V L/N |
| maximum [Up] voltage protection level |
Common mode <1.5 kV type 2 N/PE Differential mode <1.5 kV type 2 L/N |
| [Ut] temporary overvoltage |
337 V L/N 5 s withstand 442 V L/PE 5 s withstand 1200 V N/PE 200 ms withstand 1453 V L/PE 200 ms withstand |
| disconnector device type |
Associated circuit breaker iK60N 50 A curve C - Icu 6 kA Associated fuse gG 80 A - Icu 25 kA |
| signalling circuit voltage | 0.25 A/250 V AC 50/60 Hz |
| 9 mm pitches | 8 |
| height | 81 mm |
| width | 72 mm |
| depth | 69 mm |
| net weight | 335 g |
| colour | White (RAL 9003) |
| [Ipe] Ground residual current | 0.003 mA |
| connections - terminals |
Tunnel type terminal (top or bottom) 25 mm² rigid Tunnel type terminal (top or bottom) 16 mm² flexible Tunnel type terminal (top or bottom) 16 mm² flexible with ferrule |
| wire stripping length | 11 mm |
| tightening torque | 3.5 N.m |
| IK degree of protection | IK03 conforming to IEC 62262 |
|---|---|
| relative humidity | 5…95 % |
| operating altitude | 2000 m |
| ambient air temperature for operation | -25…60 °C |
| ambient air temperature for storage | -40…85 °C |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 471.0 g |
| Package 1 Height | 7.0 cm |
| Package 1 width | 7.2 cm |
| Package 1 Length | 8.1 cm |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 3 |
| Package 2 Weight | 1.472 kg |
| Package 2 Height | 10.0 cm |
| Package 2 width | 8.0 cm |
| Package 2 Length | 28.0 cm |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 36 |
| Package 3 Weight | 17.642 kg |
| Package 3 Height | 30.0 cm |
| Package 3 width | 30.0 cm |
| Package 3 Length | 40.0 cm |
| Warranty | 18 months |
|---|
