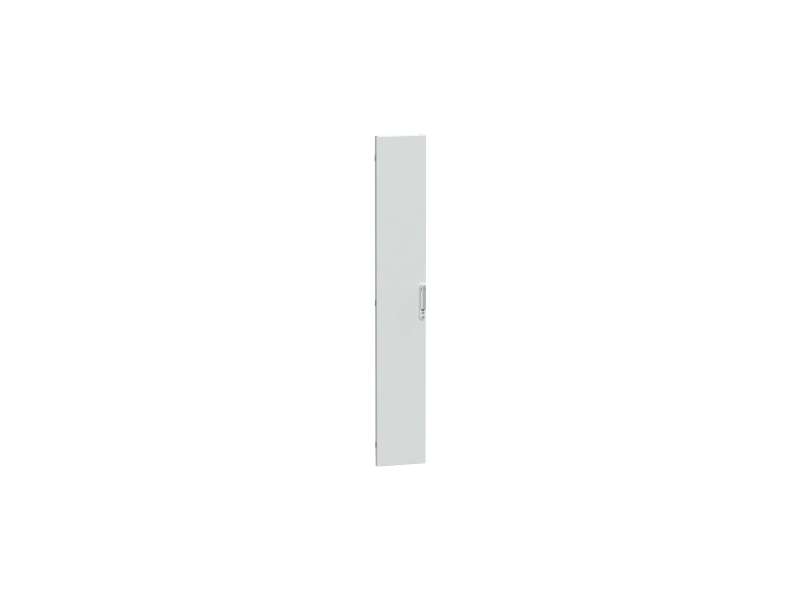

Schneider Electric IP55 neprovidna vrata, Š = 300 mm; LVS08523

IP55 PLAIN DOOR W300...

Brand: Schneider Electric
Product Code: LVS08523
Availability: Check availability

VAT-exclusive price: 31.748,00

VAT-inclusive price: 38.097,60

Qnt:

Description
Specification

IP55 PLAIN DOOR W300

Main
Range	PrismaSeT
Range of product	PrismaSeT P
Product or component type	Door
Range compatibility	PrismaSeT (PrismaSeT P) duct
Provided equipment	Door other keylock and insert to be ordered separately 4 hinge black handle with lock for 405 key polyurethane joint
Enclosure mounting	Floor-standing
type of door	Plain
IP degree of protection	IP55

Complementary
installation description	Duct - width 300 mm
Door opening side	Reversible
Number of locks	3
door opening angle	120 °
Number of vertical modules [50 mm]	36
Enclosure material	Treated sheet steel
Quantity per set	Set of 1
Height	2000 mm
Width	300 mm
Depth	30 mm
Net weight	14.76 kg
Surface finish	Matt Textured
Colour	White (RAL 9003)

Environment
IK degree of protection	IK10 conforming to EN/IEC 62262
Standards	IEC 61439-2 IEC 61439-1
Protective treatment	Electrophoresis treatment and hot-polymerised polyester epoxy powder

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	7.0 cm
Package 1 Width	36.0 cm
Package 1 Length	197.0 cm
Package 1 Weight	15.03 kg
Unit Type of Package 2	P2M
Number of Units in Package 2	30
Package 2 Height	83.0 cm
Package 2 Width	120.0 cm
Package 2 Length	202.0 cm
Package 2 Weight	477.0 kg
