Schneider Electric IP30 providna vrata, Š = 800 mm; LVS08538

IP30 TRANSPARENT DOOR W800...

Brand: Schneider Electric
Product Code: LVS08538
Availability: Check availability

VAT-exclusive price: 57.400,00

VAT-inclusive price: 68.880,00

Qnt:

Description
Specification

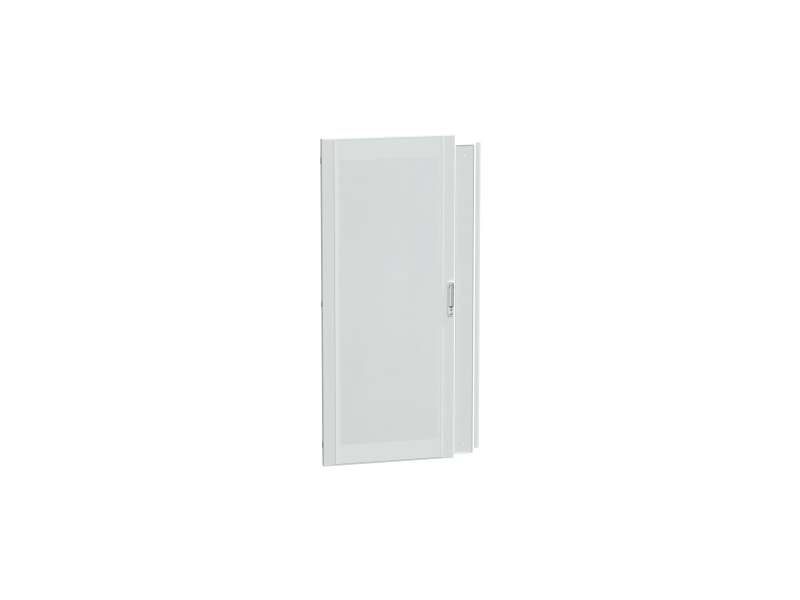

IP30 TRANSPARENT DOOR W800

Main
Range	PrismaSeT
Range of product	PrismaSeT P
Product or component type	Door
Range compatibility	PrismaSeT (PrismaSeT P) cubicle
Provided equipment	Door handle keylock (key 405) other keylock and insert to be ordered separately 2 hinge barrier 150 mm for the side compartment finishing accessory
Enclosure mounting	Floor-standing
type of door	Transparent
IP degree of protection	IP30

Complementary
installation description	Cubicle - width 800 mm Cubicle - width 650 + 150 mm
Door opening side	Reversible
Number of locks	2
door opening angle	120 °
Number of vertical modules [50 mm]	36
Enclosure material	Glass Treated sheet steel
Quantity per set	Set of 1
Height	2000 mm
Width	800 mm
Depth	30 mm
Net weight	23.28 kg
Surface finish	Matt Textured
Colour	White (RAL 9003)

Environment
IK degree of protection	IK08 conforming to EN/IEC 62262
Standards	IEC 61439-1 IEC 61439-2
Protective treatment	Electrophoresis treatment and hot-polymerised polyester epoxy powder

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	7.0 cm
Package 1 Width	85.0 cm
Package 1 Length	200.0 cm
Package 1 Weight	25.22 kg
Unit Type of Package 2	PAL
Number of Units in Package 2	10
Package 2 Height	78.0 cm
Package 2 Width	120.0 cm
Package 2 Length	202.0 cm
Package 2 Weight	272.0 kg
