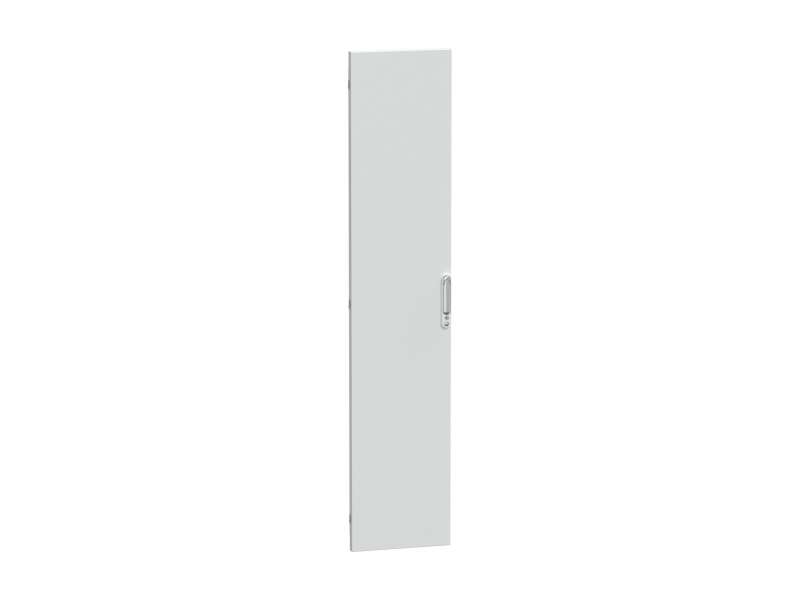

Schneider Electric IP30 neprovidna vrata, Š = 400 mm; LVS08514
IP30 PLAIN DOOR W400; LVS08514...
VAT-exclusive price: 25.511,00 |
VAT-inclusive price: 30.613,20 |
IP30 PLAIN DOOR W400; LVS08514
| Range | PrismaSeT |
|---|---|
| Range of product | PrismaSeT P |
| Product or component type | Door |
| Range compatibility | PrismaSeT (PrismaSeT P) cubicle duct |
| Provided equipment |
door handle keylock (key 405) other keylock and insert to be ordered separately 2 hinge |
| Enclosure mounting | Floor-standing |
| type of door | Plain |
| IP degree of protection | IP30 |
| installation description | Cubicle duct - width 400 mm |
|---|---|
| Door opening side | Reversible |
| Number of locks | 2 |
| door opening angle | 120 ° |
| Number of vertical modules [50 mm] | 36 |
| Enclosure material | Treated sheet steel |
| Quantity per set | Set of 1 |
| Height | 2000 mm |
| Width | 400 mm |
| Depth | 30 mm |
| Net weight | 12.44 kg |
| Surface finish |
Matt Textured |
| Colour | White (RAL 9003) |
| IK degree of protection | IK08 conforming to EN/IEC 62262 |
|---|---|
| Standards |
IEC 61439-2 IEC 61439-1 |
| Protective treatment | Electrophoresis treatment and hot-polymerised polyester epoxy powder |
