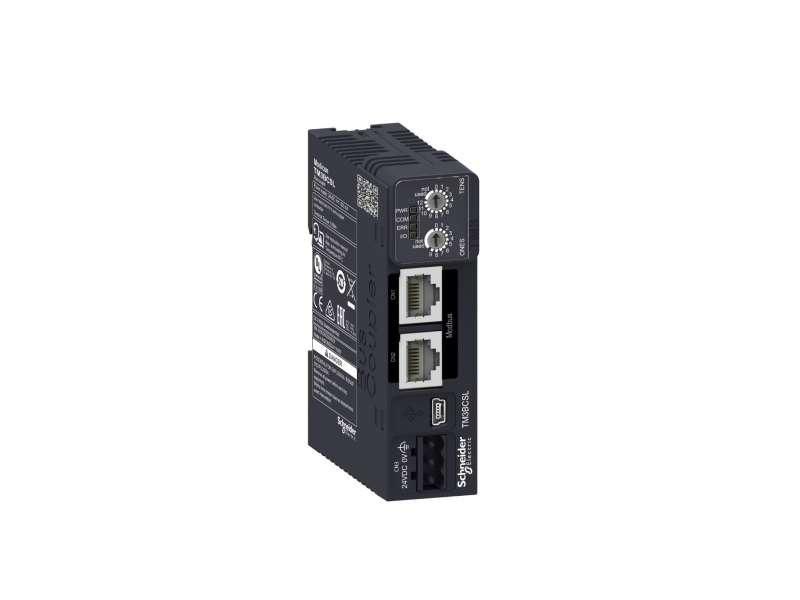

Schneider Electric IP20 I/O distribuirani optimizovani TM3 magistralni spojni modul serijski linijski interfejs; TM3BCSL
IP20 I/O Distributed Optimized TM3 Bus Coupler Module Serial Line Interface; TM3BCSL...
VAT-exclusive price: 16.643,00 |
VAT-inclusive price: 19.971,60 |
IP20 I/O Distributed Optimized TM3 Bus Coupler Module Serial Line Interface; TM3BCSL
| Range of product | Modicon TM3 |
|---|---|
| Product compatibility |
Logic controller Motion controller |
| Product or component type | I/O distributed module |
| Product specific application | Bus coupler module |
| Communication port protocol | Modbus serial |
|---|---|
| Connector type |
RJ45 2 serial link daisy chain isolated USB device port Mini-B |
| Exchange mode | Half duplex |
| Transmission rate | 1.2...115.2 kbit/s |
| Topology | Daisy chain |
| Communication network type | Modbus |
| Communication service | Modbus slave device profile |
| Web services | Web server, USB |
| Current consumption | 0.8 A at 24 V DC internal supply maximum 7 expansion modules |
| Local signalling |
1 LED green/red for PWR (System Status) 1 LED green/red for COM (Run) 1 LED green/red for ERR (Error) 1 LED green/red for I/O status |
| Fixing mode |
By clipping locks (rail) By screws (mounting plate) |
| Width | 27 mm |
| Height | 96.5 mm |
| Depth | 70 mm |
| Net weight | 0.10 kg |
| Ambient air temperature for storage | -25…70 °C |
|---|---|
| Pollution degree | 2 |
| Ambient air temperature for operation | -10…60 °C |
| IP degree of protection | IP20 conforming to IEC/EN 61010-2-201 |
| Relative humidity | 10…95 % non-condensing |
| Operating altitude | 0...2000 m |
| Storage altitude | 0…3000 m |
| Vibration resistance | 3M4 on 35 x 15 mm symmetrical DIN rail |
