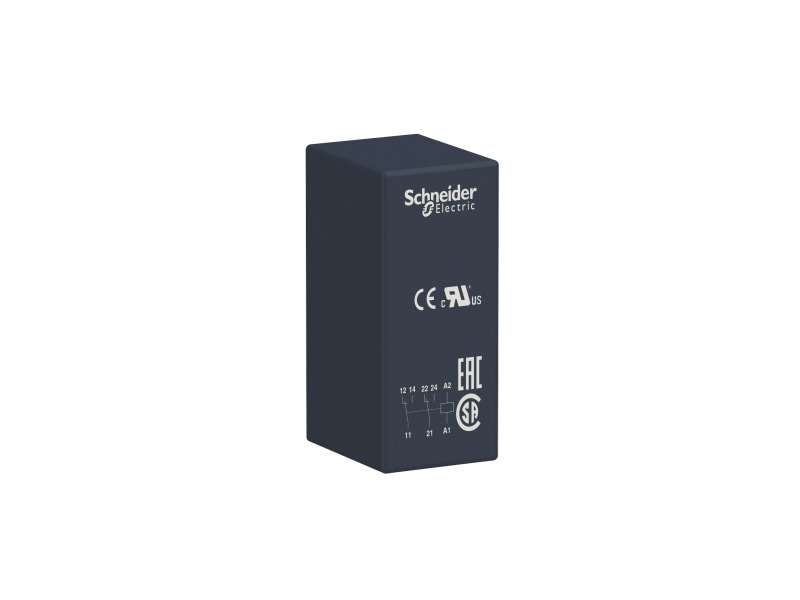

Schneider Electric Interfejs utični relej - Zelio RSB - 2 C/O - 24 V DC - 8 A;RSB2A080BD
Interface plug-in relay, 8 A, 2 CO, 24 V DC...
VAT-exclusive price: 482,00 |
VAT-inclusive price: 578,40 |
Interface plug-in relay, 8 A, 2 CO, 24 V DC
| range of product |
Harmony Relay
|
|
|---|---|---|
| series name |
Interface relay
|
|
| product or component type |
Plug-in relay
|
|
| device short name |
RSB
|
|
| contacts type and composition |
2 C/O
|
|
| contact operation |
Standard
|
|
| [Uc] control circuit voltage |
24 V DC
|
|
| [Ithe] conventional enclosed thermal current |
8 A at -40…40 °C
|
|
| status LED |
Without
|
|
| control type |
Without push-button
|
| shape of pin |
Flat (PCB type)
|
|
|---|---|---|
| average coil resistance |
1440 Ohm network: DC at 20 °C +/- 10 %
|
|
| [Ue] rated operational voltage |
16.8...36 V DC
|
|
| [Ui] rated insulation voltage |
400 V conforming to EN/IEC 60947
|
|
| [Uimp] rated impulse withstand voltage |
IEC 61000-4-5 3.6 kV
|
|
| contacts material |
Silver alloy (AgNi)
|
|
| [Ie] rated operational current |
4 A (AC-1/DC-1) NC conforming to IEC
8 A (AC-1/DC-1) NO conforming to IEC |
|
| minimum switching current |
10 mA
|
|
| maximum switching voltage |
250 V DC conforming to IEC
|
|
| minimum switching voltage |
12 V
|
|
| maximum switching capacity |
2000 VA/224 W
|
|
| resistive rated load |
8 A at 250 V AC
8 A at 28 V DC |
|
| minimum switching capacity |
120 mW at 10 mA, 12 V
|
|
| operating rate |
<= 600 cycles/hour under load
<= 18000 cycles/hour no-load |
|
| mechanical durability |
30000000 cycles
|
|
| electrical durability |
100000 cycles, 8 A at 250 V, AC-1 NO
100000 cycles, 4 A at 250 V, AC-1 NC |
|
| operating time |
20 ms operating
20 ms reset |
|
| marking |
CE
|
|
| average coil consumption |
0.45 W DC
|
|
| drop-out voltage threshold |
>= 0.1 Uc DC
|
|
| safety reliability data |
B10d = 100000
|
|
| protection category |
RT I
|
|
| test levels |
Level A group mounting
|
|
| operating position |
Any position
|
|
| net weight |
0.014 kg
|
|
| sale per indivisible quantity |
10
|
|
| device presentation |
Complete product
|
| dielectric strength |
1000 V AC between contacts
2500 V AC between poles 5000 V AC between coil and contact |
|
|---|---|---|
| standards |
UL 508
CSA C22.2 No 14 EN/IEC 61810-1 |
|
| product certifications |
UL
CSA EAC |
|
| ambient air temperature for storage |
-40…85 °C
|
|
| vibration resistance |
+/- 1 mm (f= 10…55 Hz) conforming to EN/IEC 60068-2-6
|
|
| IP degree of protection |
IP40 conforming to EN/IEC 60529
|
|
| shock resistance |
10 gn (duration = 11 ms) for not operating conforming to EN/IEC 60068-2-27
5 gn (duration = 11 ms) for in operation conforming to EN/IEC 60068-2-27 |
-
Zelio Relays RSB2A080BD
