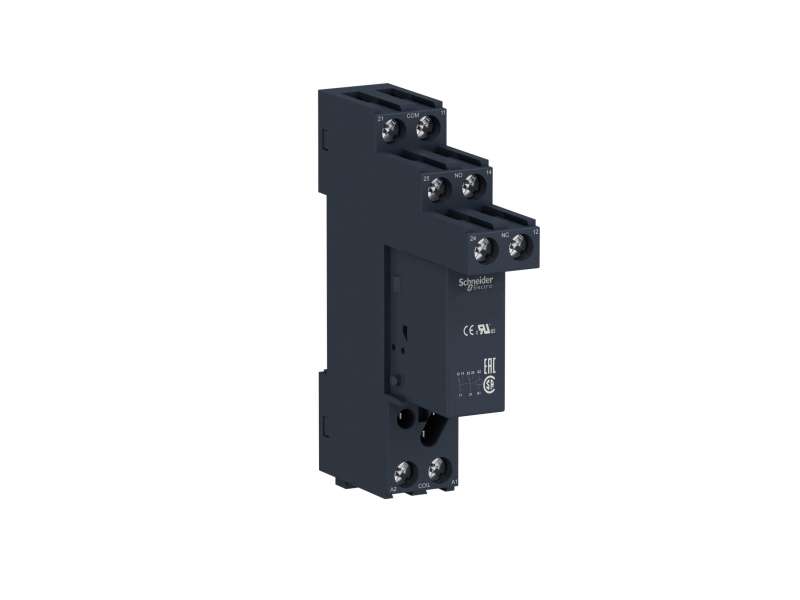

Schneider Electric Interfejs utični relej - Zelio RSB - 2 C/O - 12 V DC - 8 A - sa podnožjem ; RSB2A080JDS
interface plug-in relay - Zelio RSB - 2 C/O - 12 V DC - 8 A - with socket...
VAT-exclusive price: 1.481,00 |
VAT-inclusive price: 1.777,20 |
interface plug-in relay - Zelio RSB - 2 C/O - 12 V DC - 8 A - with socket
| range of product |
Zelio Relay
|
|
|---|---|---|
| series name |
Interface relay
|
|
| product or component type |
Plug-in relay
|
|
| device short name |
RSB
|
|
| contacts type and composition |
2 C/O
|
|
| contact operation |
Standard
|
|
| [Uc] control circuit voltage |
12 V DC
|
|
| [Ithe] conventional enclosed thermal current |
8 A at -40…40 °C
|
|
| status LED |
Without
|
|
| control type |
Without push-button
|
| shape of pin |
Flat
|
|
|---|---|---|
| average coil resistance |
360 Ohm network: DC at 20 °C +/- 10 %
|
|
| [Ue] rated operational voltage |
9.6...13.2 V DC
|
|
| [Ui] rated insulation voltage |
400 V conforming to EN/IEC 60947
|
|
| [Uimp] rated impulse withstand voltage |
3.6 kV IEC 61000-4-5
|
|
| contacts material |
Silver alloy (Ag/Ni)
|
|
| [Ie] rated operational current |
4 A (AC-1/DC-1) NC conforming to IEC
8 A (AC-1/DC-1) NO conforming to IEC |
|
| minimum switching current |
5 mA
|
|
| maximum switching voltage |
300 V DC
400 V AC |
|
| minimum switching voltage |
5 V
|
|
| maximum switching capacity |
2000 VA AC
224 W DC |
|
| resistive rated load |
8 A at 250 V AC
8 A at 28 V DC |
|
| minimum switching capacity |
300 mW at 5 mA
|
|
| operating rate |
<= 600 cycles/hour under load
<= 72000 cycles/hour no-load |
|
| mechanical durability |
30000000 cycles
|
|
| electrical durability |
100000 cycles, 8 A at 250 V, AC-1 NO
100000 cycles, 4 A at 250 V, AC-1 NC |
|
| operating time |
4 ms between coil de-energisation and making of the Off-delay contact
9 ms between coil energisation and making of the On-delay contact |
|
| marking |
CE
|
|
| average coil consumption |
0.45 W DC
|
|
| drop-out voltage threshold |
>= 0.1 Uc DC
|
|
| safety reliability data |
B10d = 100000
|
|
| protection category |
RT I
|
|
| operating position |
Any position
|
|
| sale per indivisible quantity |
10
|
|
| device presentation |
Complete product
|
| dielectric strength |
1000 V AC between contacts
2500 V AC between poles 5000 V AC between coil and contact |
|
|---|---|---|
| standards |
EN/IEC 61810-1
UL 508 CSA C22.2 No 14 |
|
| product certifications |
GOST
UL CSA |
|
| ambient air temperature for storage |
-40…85 °C
|
|
| vibration resistance |
+/- 1 mm (f= 10…55 Hz) conforming to EN/IEC 60068-2-6
|
|
| IP degree of protection |
IP40 conforming to EN/IEC 60529
|
|
| shock resistance |
10 gn (duration = 11 ms) for not operating conforming to EN/IEC 60068-2-27
5 gn (duration = 11 ms) for in operation conforming to EN/IEC 60068-2-27 |
|
| ambient air temperature for operation |
-40…70 °C (AC)
-40…85 °C (DC) |
| Unit Type of Package 1 |
PCE
|
|
|---|---|---|
| Number of Units in Package 1 |
1
|
|
| Package 1 Weight |
60 g
|
|
| Package 1 Height |
7.5 cm
|
|
| Package 1 width |
10.3 cm
|
|
| Package 1 Length |
34 cm
|
|
| Unit Type of Package 2 |
BB1
|
|
| Number of Units in Package 2 |
20
|
|
| Package 2 Weight |
1.2 kg
|
|
| Package 2 Height |
7.5 cm
|
|
| Package 2 width |
10.3 cm
|
|
| Package 2 Length |
34 cm
|
|
| Unit Type of Package 3 |
S03
|
|
| Number of Units in Package 3 |
140
|
|
| Package 3 Weight |
9.098 kg
|
|
| Package 3 Height |
30 cm
|
|
| Package 3 width |
30 cm
|
|
| Package 3 Length |
40 cm
|
| Sustainable offer status |
Green Premium product
|
|
|---|---|---|
| REACh free of SVHC |
Yes
|
|
| EU RoHS Directive |
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration |
|
| Toxic heavy metal free |
Yes
|
|
| Mercury free |
Yes
|
|
| RoHS exemption information | ||
| China RoHS Regulation | ||
| Environmental Disclosure | ||
| WEEE |
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
|
| Warranty |
18 months
|
|---|
-
Zelio Relays RSB2A080JDS
