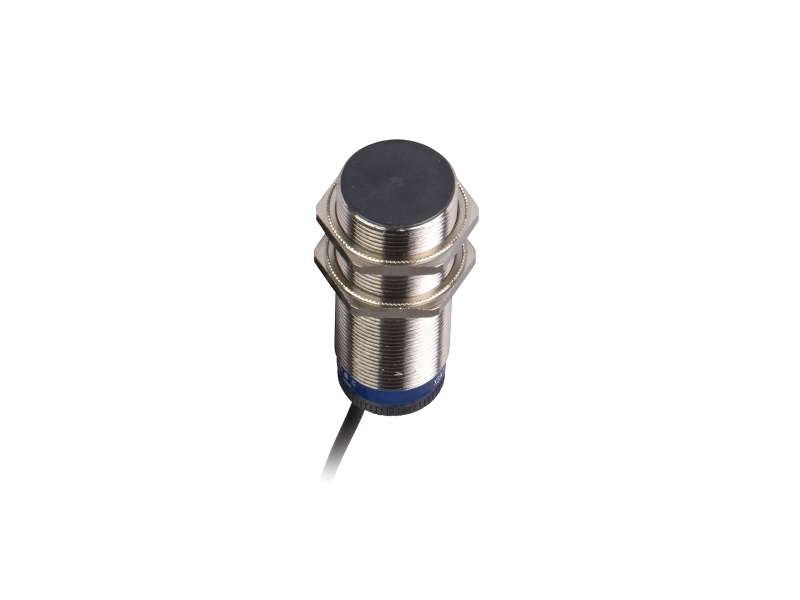

Schneider Electric Induktivni senzor XSAV - M30 - Sn10mm - 6..150c/min - 24..240VAC/DC - kabl 2m ; XSAV11801
Inductive proximity sensors XS, Rotation monitoring, M30, Sn10mm, 6...150c/mn, 24...240VAC/DC, cable 2 m...
VAT-exclusive price: 21.767,00 |
VAT-inclusive price: 26.120,40 |
Inductive proximity sensors XS, Rotation monitoring, M30, Sn10mm, 6...150c/mn, 24...240VAC/DC, cable 2 m
| range of product | Telemecanique Inductive proximity sensors XS |
|---|---|
| series name | Application |
| product or component type | Sensor |
| sensor type | Inductive proximity sensor |
| device application | Rotation monitoring |
| sensor name | XSA |
| sensor design | Cylindrical M30 |
| size | 81 mm |
| body type | Fixed |
| detector flush mounting acceptance | Flush mountable |
| material | Metal |
| enclosure material | Nickel plated brass |
| type of output signal | Discrete |
| wiring technique | 2-wire |
| [Sn] nominal sensing distance | 10 mm |
| discrete output function | 1 NC |
| output circuit type | AC/DC |
| electrical connection | Cable |
| cable length | 2 m |
| [Us] rated supply voltage |
24...210 V DC 24...240 V AC 50/60 Hz |
| switching capacity in mA |
5...200 mA DC 5...350 mA AC |
| IP degree of protection | IP67 conforming to IEC 60529 |
| thread type | M30 x 1.5 |
|---|---|
| detection face | Frontal |
| front material | PPS |
| sensing range | > 8...15 mm |
| adjustable frequency range | 6…150 cyc/mn |
| operating zone | 0…8 mm |
| differential travel | 3...15% of Fr |
| repeat accuracy | 3% of Sr |
| cable composition | 2 x 0.34 mm² |
| wire insulation material | PvR |
| status LED | Output state: 1 LED (red) |
| supply voltage limits | 20…264 V AC/DC |
| maximum residual current | 1.5 mA open state |
| switching frequency | <= 100 Hz |
| maximum voltage drop | <5.7 V (closed) |
| run-up delay at power-up | 9 s standard |
| marking | CE |
| threaded length | 67 mm |
| length | 81 mm |
| net weight | 0.3 kg |
| product certifications |
UL CSA CCC |
|---|---|
| ambient air temperature for operation | -25…70 °C |
| ambient air temperature for storage | -40…85 °C |
| Unit Type of Package 1 | PCE |
|---|---|
| Package 1 Length | 13.2 cm |
| Number of Units in Package 1 | 1 |
| Package 2 Width | 30.0 cm |
| Package 2 Height | 15.0 cm |
| Package 2 Weight | 5.23 kg |
| Package 1 Width | 9.5 cm |
| Package 1 Height | 4.1 cm |
| Package 1 Weight | 223.0 g |
| Number of Units in Package 2 | 22 |
| Unit Type of Package 2 | S02 |
| Package 2 Length | 40.0 cm |
| Warranty | 18 months |
|---|
| range of product | Telemecanique Inductive proximity sensors XS |
|---|---|
| series name | Application |
| product or component type | Sensor |
| sensor type | Inductive proximity sensor |
| device application | Rotation monitoring |
| sensor name | XSA |
| sensor design | Cylindrical M30 |
| size | 81 mm |
| body type | Fixed |
| detector flush mounting acceptance | Flush mountable |
| material | Metal |
| enclosure material | Nickel plated brass |
| type of output signal | Discrete |
| wiring technique | 2-wire |
| [Sn] nominal sensing distance | 10 mm |
| discrete output function | 1 NC |
| output circuit type | AC/DC |
| electrical connection | Cable |
| cable length | 2 m |
| [Us] rated supply voltage |
24...210 V DC 24...240 V AC 50/60 Hz |
| switching capacity in mA |
5...200 mA DC 5...350 mA AC |
| IP degree of protection | IP67 conforming to IEC 60529 |
| thread type | M30 x 1.5 |
|---|---|
| detection face | Frontal |
| front material | PPS |
| sensing range | > 8...15 mm |
| adjustable frequency range | 6…150 cyc/mn |
| operating zone | 0…8 mm |
| differential travel | 3...15% of Fr |
| repeat accuracy | 3% of Sr |
| cable composition | 2 x 0.34 mm² |
| wire insulation material | PvR |
| status LED | Output state: 1 LED (red) |
| supply voltage limits | 20…264 V AC/DC |
