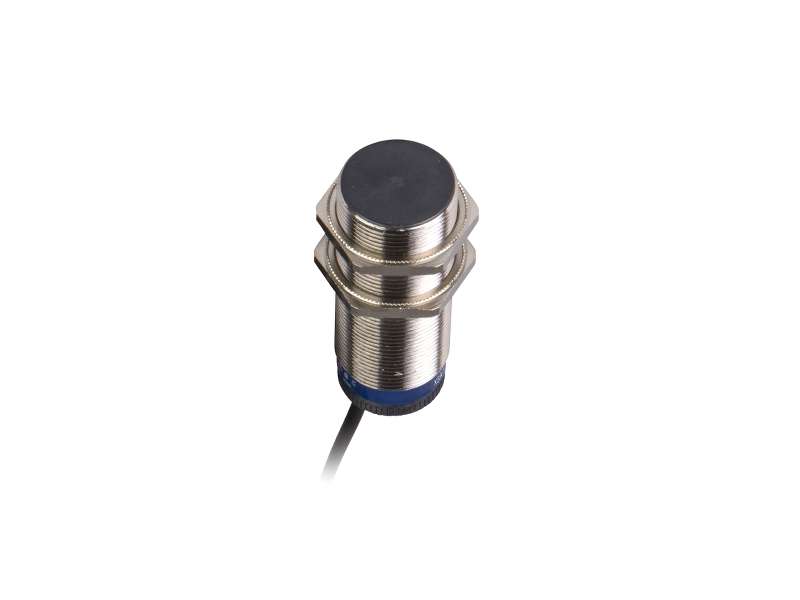

Schneider Electric Induktivni senzor XSAV - M30 - Sn10mm - 120..3000c/min - 12..48VDC - kabl 2m;XSAV12373

Schneider Electric Induktivni senzor XSAV - M30 - Sn10mm - 120..3000c/min - 12..48VDC - kabl 2m;XSAV12373

Inductive proximity sensors XS, Rotation monitoring, M30, Sn10mm, 120...3000c/mn, 12...48 VDC, cable 2 m...

Brand: Schneider Electric
Product Code: XSAV12373
Availability: Check availability
VAT-exclusive price: 21.273,00
VAT-inclusive price: 25.527,60

Inductive proximity sensors XS, Rotation monitoring, M30, Sn10mm, 120...3000c/mn, 12...48 VDC, cable 2 m




Main
range of product Telemecanique Inductive proximity sensors XS
series name Application
product or component type Sensor
sensor type Inductive proximity sensor
device application Rotation monitoring
sensor name XSA
sensor design Cylindrical M30
size 81 mm
body type Fixed
detector flush mounting acceptance Flush mountable
material Metal
enclosure material Nickel plated brass
type of output signal Discrete
wiring technique 3-wire
[Sn] nominal sensing distance 10 mm
discrete output function 1 NC
output circuit type DC
discrete output type PNP
electrical connection Cable
cable length 2 m
[Us] rated supply voltage 12...48 V DC with reverse polarity protection
switching capacity in mA <= 200 mA with overload and short-circuit protection
IP degree of protection IP67 conforming to IEC 60529
Complementary
thread type M30 x 1.5
detection face Frontal
front material PPS
sensing range > 8...15 mm
adjustable frequency range 120…3000 cyc/mn
operating zone 0…8 mm
differential travel 3...15% of Fr
repeat accuracy 3% of Sr
cable composition 3 x 0.34 mm²
wire insulation material PvR
status LED Output state: 1 LED (red)
supply voltage limits 10…58 V DC
switching frequency <= 800 Hz
maximum voltage drop <1.8 V (closed)
current consumption 0...15 mA no-load
run-up delay at power-up 9 s standard
marking CE
threaded length 67 mm
length 81 mm
net weight 0.3 kg
Environment
product certifications CCC
CSA
UL
ambient air temperature for operation -25…70 °C
ambient air temperature for storage -40…85 °C
Packing Units
Unit Type of Package 1 PCE
Package 1 Length 13.2 cm
Number of Units in Package 1 1
Package 2 Width 30.0 cm
Package 2 Height 15.0 cm
Package 2 Weight 5.387 kg
Package 1 Width 9.5 cm
Package 1 Height 4.1 cm
Package 1 Weight 230.0 g
Number of Units in Package 2 22
Unit Type of Package 2 S02
Package 2 Length 40.0 cm

Contractual warranty
Warranty 18 months

Main
range of product Telemecanique Inductive proximity sensors XS
series name Application
product or component type Sensor
sensor type Inductive proximity sensor
device application Rotation monitoring
sensor name XSA
sensor design Cylindrical M30
size 81 mm
body type Fixed
detector flush mounting acceptance Flush mountable
material Metal
enclosure material Nickel plated brass
type of output signal Discrete
wiring technique 3-wire
[Sn] nominal sensing distance 10 mm
discrete output function 1 NC
output circuit type DC
discrete output type PNP
electrical connection Cable
cable length 2 m
[Us] rated supply voltage 12...48 V DC with reverse polarity protection
switching capacity in mA <= 200 mA with overload and short-circuit protection
IP degree of protection IP67 conforming to IEC 60529
