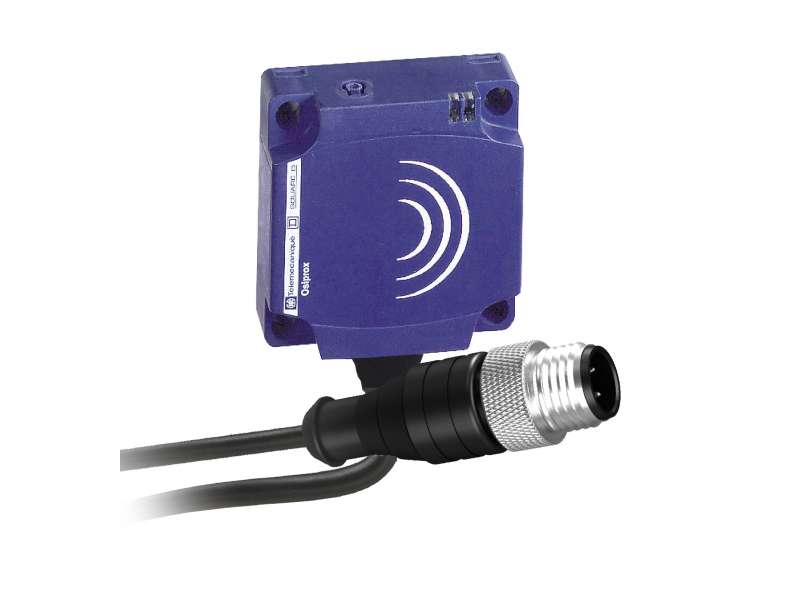

Schneider Electric Induktivni senzor XS8 40x40x15 - PBT - Sn25mm - 12..24VDC - M12 0.15m
Inductive proximity sensors XS, inductive sensor XS8 40x40x15, PBT, Sn25mm, 12...24 VDC, M12 0.15 m...
VAT-exclusive price: 12.369,00 |
VAT-inclusive price: 14.842,80 |
Inductive proximity sensors XS, inductive sensor XS8 40x40x15, PBT, Sn25mm, 12...24 VDC, M12 0.15 m
| Range of product | Telemecanique Inductive proximity sensors XS |
|---|---|
| Series name | General purpose |
| Sensor type | Inductive proximity sensor |
| Device application | - |
| Sensor name | XS8 |
| Sensor design | Flat form 40 x 40 x 15 |
| Size | 15 mm |
| body type | Fixed |
| Detector flush mounting acceptance | Non flush mountable |
| Material | Plastic |
| Enclosure material | PBT |
| type of output signal | Discrete |
| Wiring technique | 3-wire |
| [Sn] nominal sensing distance |
15 mm flush mountable 25 mm non flush mountable |
| Discrete output function | 1 NO |
| Output circuit type | DC |
| Discrete output type | PNP |
| Electrical connection | Remote male connector M12, 4 pins |
| Cable length | 0.15 m |
| [Us] rated supply voltage | 12...24 V DC with reverse polarity protection |
| Switching capacity in mA | <= 200 mA DC with overload and short-circuit protection |
| IP degree of protection | IP67 double insulation conforming to IEC 60529 |
| Detection face | Frontal |
|---|---|
| Front material | PBT |
| Fine adjustment zone |
8…15 mm flush mountable 8…25 mm non flush mountable |
| Differential travel | 1...15% of Sr |
| wire insulation material | PVC |
| Supply voltage limits | 10…36 V DC |
| Maximum residual current | 1.5 mA open state |
| Switching frequency | <= 1000 Hz |
| Maximum voltage drop | <2 V (closed) |
| Current consumption | <= 10 mA no-load |
| Maximum delay first up | 10 ms |
| Maximum delay response | 0.3 ms |
| Maximum delay recovery | 0.8 ms |
| marking | CE |
| Depth | 15 mm |
| Height | 40 mm |
| Width | 40 mm |
| Product certifications |
Ecolab CSA UL |
|---|---|
| Ambient air temperature for operation | -25…70 °C |
| Ambient air temperature for storage | -40…85 °C |
| Vibration resistance | 25 gn amplitude = +/- 2 mm (f = 10…55 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 50 gn for 11 ms conforming to IEC 60068-2-27 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 4.2 cm |
| Package 1 Width | 9.7 cm |
| Package 1 Length | 6.7 cm |
| Package 1 Weight | 84.0 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 44 |
| Package 2 Height | 15.0 cm |
| Package 2 Width | 30.0 cm |
| Package 2 Length | 40.0 cm |
| Package 2 Weight | 3.997 kg |
| Warranty | 18 months |
|---|
-
Induktivni i kapacitivni senzori XS & XT XS8C1A1PAL01M12
