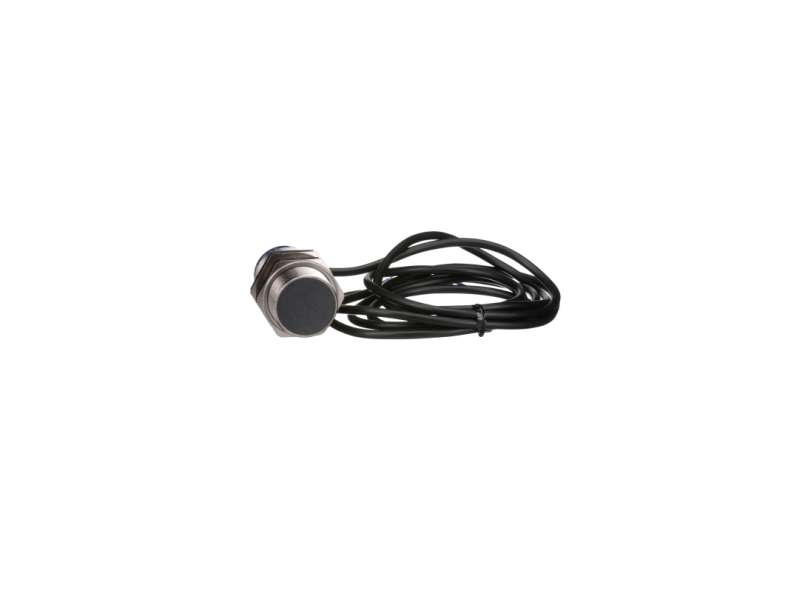

Schneider Electric Induktivni senzor XS6 M30 - L62mm - mesing - Sn15mm - 24..240VAC/DC - kabl 2m;XS630B1MAL2

Inductive proximity sensors XS, inductive sensor XS6 M30, L62mm, brass, Sn15mm, 24...240VAC/DC, cable 2 m...

Brand: Schneider Electric
Product Code: XS630B1MAL2
Availability: Check availability

VAT-exclusive price: 7.902,00

VAT-inclusive price: 9.482,40

Qnt:

Description
Specification

Inductive proximity sensors XS, inductive sensor XS6 M30, L62mm, brass, Sn15mm, 24...240VAC/DC, cable 2 m

Main
range of product	Telemecanique Inductive proximity sensors XS
series name	General purpose
sensor type	Inductive proximity sensor
sensor name	XS6
sensor design	Cylindrical M30
size	62 mm
body type	Fixed
detector flush mounting acceptance	Flush mountable
material	Metal
type of output signal	Discrete
wiring technique	2-wire
[Sn] nominal sensing distance	15 mm
discrete output function	1 NO
output circuit type	AC/DC
electrical connection	Cable
cable length	2 m
[Us] rated supply voltage	24...240 V AC/DC 50/60 Hz
switching capacity in mA	5...200 mA DC 5...300 mA AC
IP degree of protection	IP68 double insulation conforming to IEC 60529 IP69K conforming to DIN 40050

Complementary
thread type	M30 x 1.5
detection face	Frontal
front material	PPS
enclosure material	Nickel plated brass
sensing range	> 8...15 mm
operating zone	0…12 mm
differential travel	1...15% of Sr
cable composition	2 x 0.34 mm²
wire insulation material	PvR
status LED	Output state: 1 LED (yellow)
supply voltage limits	20…264 V AC/DC
maximum residual current	0.8 mA open state
switching frequency	<= 25 Hz AC <= 500 Hz DC
maximum voltage drop	<5.5 V (closed)
maximum delay first up	25 ms
maximum delay response	0.5 ms
maximum delay recovery	2 ms
marking	CE
threaded length	52 mm
length	62 mm
net weight	0.205 kg

Environment
product certifications	CSA UL
ambient air temperature for operation	-25…70 °C
ambient air temperature for storage	-40…85 °C
vibration resistance	25 gn amplitude = +/- 2 mm (f = 10…55 Hz) conforming to IEC 60068-2-6
shock resistance	50 gn for 11 ms conforming to IEC 60068-2-27

Packing Units
Unit Type of Package 1	PCE
Package 1 Length	16.2 cm
Number of Units in Package 1	1
Package 3 Width	30.0 cm
Package 3 Weight	9.097 kg
Package 2 Width	60.0 cm
Package 2 Height	77.0 cm
Package 2 Weight	85.66 kg
Number of Units in Package 3	44
Unit Type of Package 3	S03
Package 3 Height	30.0 cm
Package 3 Length	40.0 cm
Package 1 Width	15.1 cm
Package 1 Height	3.4 cm
Package 1 Weight	186.0 g
Number of Units in Package 2	352
Unit Type of Package 2	P06
Package 2 Length	80.0 cm

Contractual warranty
Warranty	18 months
