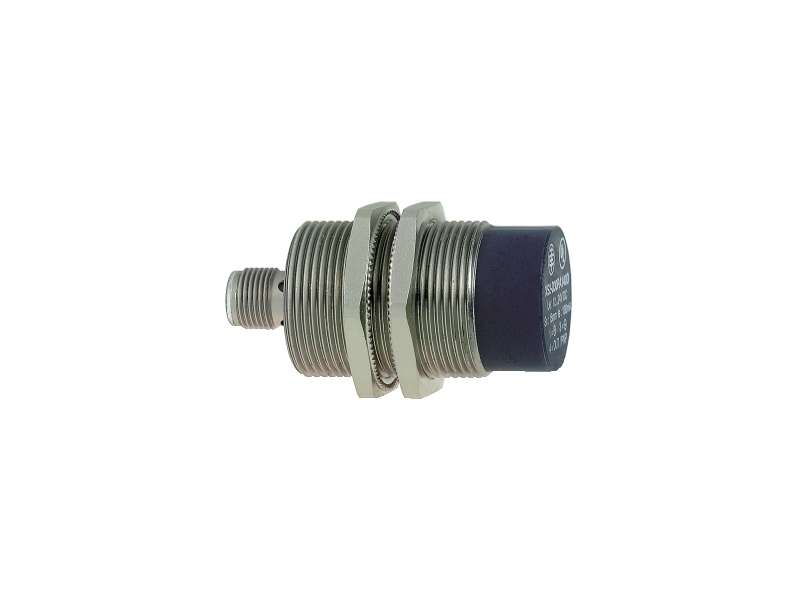

Schneider Electric Induktivni senzor XS6 M30 - D74mm - mesing - Sn22mm - 12..48VDC - M12;XS630B4NAM12

Schneider Electric Induktivni senzor XS6 M30 - D74mm - mesing - Sn22mm - 12..48VDC - M12;XS630B4NAM12

Inductive proximity sensors XS, inductive sensor XS6 M30, L74mm, brass, Sn22mm, 12...48 VDC, M12...

Brand: Schneider Electric
Product Code: XS630B4NAM12
Availability: Check availability
VAT-exclusive price: 5.914,00
VAT-inclusive price: 7.096,80

Inductive proximity sensors XS, inductive sensor XS6 M30, L74mm, brass, Sn22mm, 12...48 VDC, M12




Main
range of product Telemecanique Inductive proximity sensors XS
series name General purpose
sensor type Inductive proximity sensor
device application Mobile equipment
sensor name XS6
sensor design Cylindrical M30
size 74 mm
body type Fixed
detector flush mounting acceptance Non flush mountable
material Metal
type of output signal Discrete
wiring technique 3-wire
[Sn] nominal sensing distance 22 mm
discrete output function 1 NO
output circuit type DC
discrete output type NPN
electrical connection Male connector M12, 4 pins
[Us] rated supply voltage 12...48 V DC with reverse polarity protection
switching capacity in mA <= 200 mA DC with overload and short-circuit protection
IP degree of protection IP67 conforming to IEC 60529
IP69K conforming to DIN 40050
Complementary
thread type M30 x 1.5
detection face Frontal
front material PPS
enclosure material Nickel plated brass
sensing range > 15...40 mm
operating zone 0…17.6 mm
differential travel 1...15% of Sr
status LED Output state: 1 LED (yellow)
supply voltage limits 10…58 V DC
switching frequency <= 500 Hz DC
maximum voltage drop <2 V (closed)
current consumption <= 10 mA no-load
maximum delay first up 10 ms
maximum delay response 0.6 ms
maximum delay recovery 1.4 ms
marking CE
threaded length 41 mm
length 74 mm
net weight 0.145 kg
Environment
product certifications CSA
UL
E2
ambient air temperature for operation -25…70 °C
ambient air temperature for storage -40…85 °C
vibration resistance 25 gn amplitude = +/- 2 mm (f = 10…55 Hz) conforming to IEC 60068-2-6
shock resistance 50 gn for 11 ms conforming to IEC 60068-2-27
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Weight 154 g
Package 1 Height 4.2 cm
Package 1 width 6.5 cm
Package 1 Length 9.5 cm
Unit Type of Package 2 BAG
Number of Units in Package 2 1
Package 2 Weight 154 g
Package 2 Height 3 cm
Package 2 width 20 cm
Package 2 Length 15 cm
Unit Type of Package 3 S01
Number of Units in Package 3 11
Package 3 Weight 1.919 kg
Package 3 Height 15 cm
Package 3 width 15 cm
Package 3 Length 40 cm

Contractual warranty
Warranty 18 months

Main
range of product Telemecanique Inductive proximity sensors XS
series name General purpose
sensor type Inductive proximity sensor
device application Mobile equipment
sensor name XS6
sensor design Cylindrical M30
size 74 mm
body type Fixed
detector flush mounting acceptance Non flush mountable
material Metal
type of output signal Discrete
wiring technique 3-wire
[Sn] nominal sensing distance 22 mm
discrete output function 1 NO
output circuit type DC
discrete output type NPN
electrical connection Male connector M12, 4 pins
[Us] rated supply voltage 12...48 V DC with reverse polarity protection
switching capacity in mA <= 200 mA DC with overload and short-circuit protection
IP degree of protection IP67 conforming to IEC 60529
IP69K conforming to DIN 40050
Complementary
thread type M30 x 1.5
detection face Frontal
front material PPS
enclosure material Nickel plated brass
sensing range > 15...40 mm
operating zone 0…17.6 mm
differential travel
