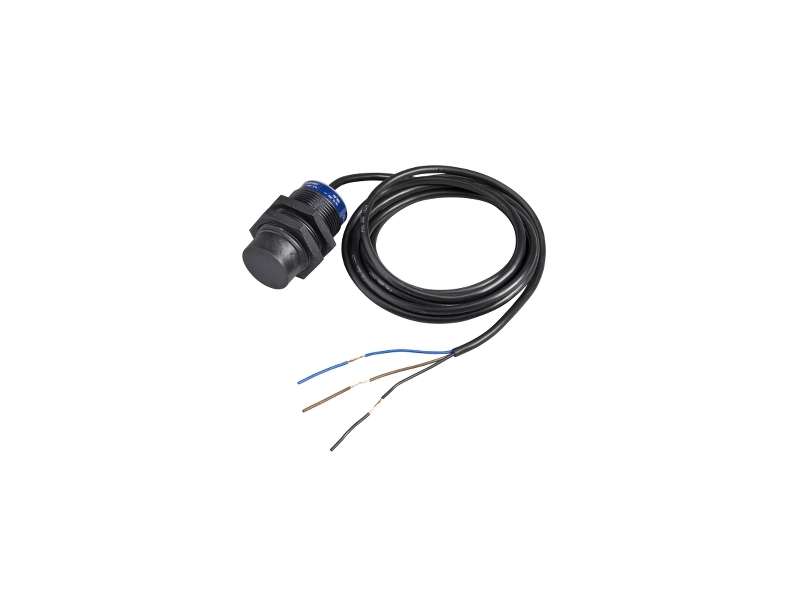

Schneider Electric Induktivni senzor XS4 M30 - D53mm - PBT - Sn15mm - 12..24VDC - kabl 2m;XS4P30AB120

Inductive proximity sensors XS, inductive sensor XS4 M30, L53mm, PBT, Sn15mm, 12...24 VDC, cable 2 m...

Brand: Schneider Electric
Product Code: XS4P30AB120
Availability: Check availability

VAT-exclusive price: 9.826,00

VAT-inclusive price: 11.791,20

Qnt:

Description
Specification

Inductive proximity sensors XS, inductive sensor XS4 M30, L53mm, PBT, Sn15mm, 12...24 VDC, cable 2 m

Main
range of product	Telemecanique Inductive proximity sensors XS
series name	Application
sensor type	Inductive proximity sensor
electrical circuit type	Analog output
sensor name	XS4
sensor design	Cylindrical M30
size	53 mm
body type	Fixed
detector flush mounting acceptance	Non flush mountable
material	Plastic
type of output signal	Analogue
wiring technique	2-wire
[Sn] nominal sensing distance	15 mm
output circuit type	DC
analogue output range	4...20 mA
electrical connection	Cable
cable length	2 m
[Us] rated supply voltage	12...24 V DC
IP degree of protection	IP67 conforming to IEC 60529

Complementary
thread type	M30 x 1.5
detection face	Frontal
front material	PPS
enclosure material	PBT
operating zone	1.5…15 mm
repeat accuracy	<= 3% of Sr
linearity error	+/- 2 mA
cable composition	3 x 0.34 mm²
wire insulation material	PvR
supply voltage limits	10…38 V DC
switching frequency	<= 300 Hz
current consumption	4 mA no-load
maximum output current drift	10 %
marking	CE
threaded length	32 mm
height	30 mm
length	53 mm
net weight	0.1 kg

Environment
product certifications	UL CSA
ambient air temperature for operation	-25…70 °C

Packing Units
Unit Type of Package 1	PCE
Package 1 Length	13.0 cm
Number of Units in Package 1	1
Package 2 Width	30 cm
Package 2 Height	30 cm
Package 2 Weight	6.139 kg
Package 3 Height	30 cm
Package 1 Width	9.5 cm
Package 1 Height	4.1 cm
Package 1 Weight	127.0 g
Number of Units in Package 2	44
Unit Type of Package 2	S03
Package 2 Length	40 cm

Contractual warranty
Warranty	18 months

Main
range of product	Telemecanique Inductive proximity sensors XS
series name	Application
sensor type	Inductive proximity sensor
electrical circuit type	Analog output
sensor name	XS4
sensor design	Cylindrical M30
size	53 mm
body type	Fixed
detector flush mounting acceptance	Non flush mountable
material	Plastic
type of output signal	Analogue
wiring technique	2-wire
[Sn] nominal sensing distance	15 mm
output circuit type	DC
analogue output range	4...20 mA
electrical connection	Cable
cable length	2 m
[Us] rated supply voltage	12...24 V DC
IP degree of protection	IP67 conforming to IEC 60529

Complementary
thread type	M30 x 1.5
detection face	Frontal
front material	PPS
enclosure material	PBT
operating zone	1.5…15 mm
repeat accuracy	<= 3% of Sr
linearity error	+/- 2 mA
cable composition	3 x 0.34 mm²
wire insulation material	PvR
supply voltage limits	10…38 V DC
switching frequency	<= 300 Hz
current consumption	4 mA no-load
maximum output current drift	10 %
marking	CE
threaded length	32 mm
height	30 mm
length	53 mm
net weight	0.1 kg
