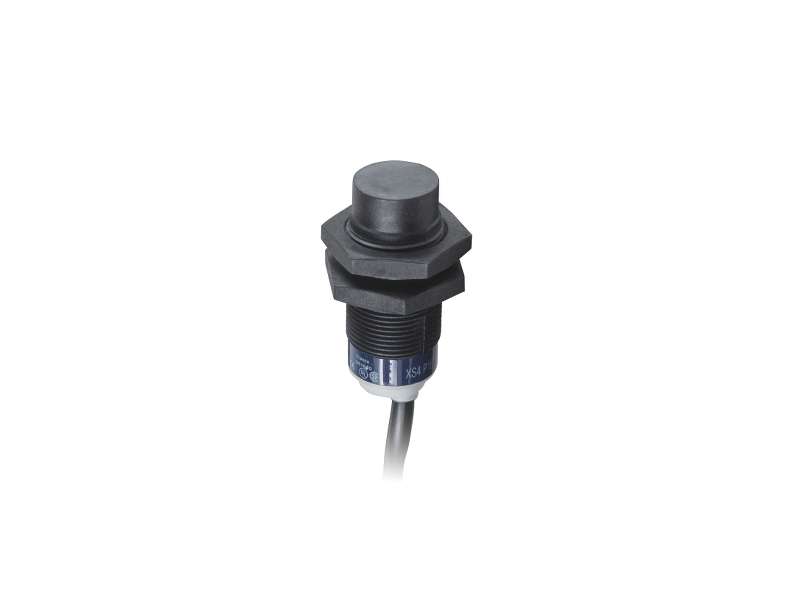

Schneider Electric Induktivni senzor XS4 M18 - D48mm - PPS - Sn8mm - 12..24VDC - M12;XS4P18NA340D
Inductive proximity sensors XS, inductive sensor XS4 M18, L48mm, PPS, Sn8mm, 12...24 VDC, M12...
VAT-exclusive price: 4.925,00 |
VAT-inclusive price: 5.910,00 |
Inductive proximity sensors XS, inductive sensor XS4 M18, L48mm, PPS, Sn8mm, 12...24 VDC, M12
| range of product | Telemecanique Inductive proximity sensors XS |
|---|---|
| series name | General purpose |
| sensor type | Inductive proximity sensor |
| sensor name | XS4 |
| sensor design | Cylindrical M18 |
| size | 48 mm |
| body type | Fixed |
| detector flush mounting acceptance | Non flush mountable |
| material | Plastic |
| type of output signal | Discrete |
| wiring technique | 3-wire |
| [Sn] nominal sensing distance | 8 mm |
| discrete output function | 1 NO |
| output circuit type | DC |
| discrete output type | NPN |
| electrical connection | Male connector M12, 4 pins |
| [Us] rated supply voltage | 12...24 V DC with reverse polarity protection |
| switching capacity in mA | <= 200 mA DC with overload and short-circuit protection |
| IP degree of protection | IP67 conforming to IEC 60529 |
| thread type | M18 x 1 |
|---|---|
| detection face | Frontal |
| front material | PPS |
| enclosure material | PPS |
| operating zone | 0…6.4 mm |
| differential travel | 1...15% of Sr |
| status LED | Output state: 1 LED (yellow) |
| supply voltage limits | 10…36 V DC |
| switching frequency | <= 2000 Hz |
| maximum voltage drop | <2 V (closed) |
| current consumption | <= 10 mA no-load |
| maximum delay first up | 10 ms |
| maximum delay response | 0.15 ms |
| maximum delay recovery | 0.35 ms |
| marking | CE |
| threaded length | 29 mm |
| height | 18 mm |
| length | 48 mm |
| product certifications |
CSA UL |
|---|---|
| ambient air temperature for operation | -25…70 °C |
| ambient air temperature for storage | -40…85 °C |
| vibration resistance | 25 gn amplitude = +/- 2 mm (f = 10…55 Hz) conforming to IEC 60068-2-6 |
| shock resistance | 50 gn for 11 ms conforming to IEC 60068-2-27 |
| Unit Type of Package 1 | PCE |
|---|---|
| Package 1 Length | 15.3 cm |
| Number of Units in Package 1 | 1 |
| Package 2 Width | 15 cm |
| Package 2 Height | 15 cm |
| Package 2 Weight | 963 g |
| Package 3 Height | 15 cm |
| Package 1 Width | 7.1 cm |
| Package 1 Height | 2.6 cm |
| Package 1 Weight | 28.0 g |
| Number of Units in Package 2 | 22 |
| Unit Type of Package 2 | S01 |
| Package 2 Length | 40 cm |
| Warranty | 18 months |
|---|
