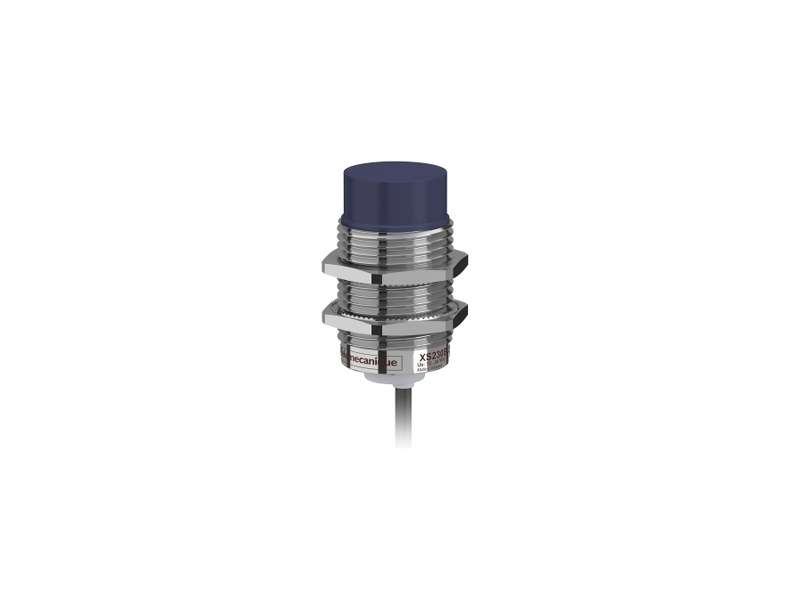

Schneider Electric Induktivni senzor XS2 M30 - D57mm - mesing - Sn15mm - 12..24VDC - kabl 5m;XS230BLPAL5
inductive sensor XS2 M30, L57mm, brass, Sn15mm, 12..24VDC, cable 2m...
VAT-exclusive price: 4.372,00 |
VAT-inclusive price: 5.246,40 |
inductive sensor XS2 M30, L57mm, brass, Sn15mm, 12..24VDC, cable 2m
| range of product | Telemecanique Inductive proximity sensors XS |
|---|---|
| series name | General purpose |
| sensor type | Inductive proximity sensor |
| sensor name | XS2 |
| sensor design | Cylindrical M30 |
| size | 57 mm |
| body type | Fixed |
| enclosure material | Nickel plated brass |
| type of output signal | Discrete |
| wiring technique | 3-wire |
| [Sn] nominal sensing distance | 15 mm |
| discrete output function | 1 NO |
| discrete output type | PNP |
| electrical connection | Cable |
| cable length | 5 m |
| [Us] rated supply voltage | 12...24 V DC with reverse polarity protection |
| switching capacity in mA | <= 200 mA with overload and short-circuit protection |
| IP degree of protection | IP67 conforming to IEC 60529 |
| ISO thread | M30 x 1.5 |
|---|---|
| detection face | Frontal |
| detector flush mounting acceptance | Non flush mountable |
| material | Metal |
| front material | PBT |
| operating zone | 0…12 mm |
| differential travel | 1...15% of Sr |
| output circuit type | DC |
| cable composition | 3 x 0.14 mm² |
| wire insulation material | PVC |
| status LED | Output state: 1 LED (yellow) |
| supply voltage limits | 10…36 V DC |
| switching frequency | <= 300 Hz |
| maximum voltage drop | <2 V (closed) |
| current consumption | <= 10 mA no-load |
| maximum delay first up | 15 ms |
| maximum delay response | 0.2 ms |
| maximum delay recovery | 1.4 ms |
| marking | CE |
| threaded length | 32 mm |
| length | 57 mm |
| net weight | 0.275 kg |
| product certifications |
CSA UL |
|---|---|
| ambient air temperature for operation | -25…70 °C |
| ambient air temperature for storage | -40…85 °C |
| vibration resistance | 25 gn amplitude = +/- 2 mm (f = 10…55 Hz) conforming to IEC 60068-2-6 |
| shock resistance | 50 gn for 11 ms conforming to IEC 60068-2-27 |
| Unit Type of Package 1 | PCE |
|---|---|
| Package 1 Length | 13.2 cm |
| Number of Units in Package 1 | 1 |
| Package 2 Width | 30 cm |
| Package 2 Height | 15 cm |
| Package 2 Weight | 6.61 kg |
| Package 1 Width | 9.7 cm |
| Package 1 Height | 6.7 cm |
| Package 1 Weight | 257 g |
| Number of Units in Package 2 | 24 |
| Unit Type of Package 2 | S02 |
| Package 2 Length | 40 cm |
| Warranty | 18 months |
|---|
