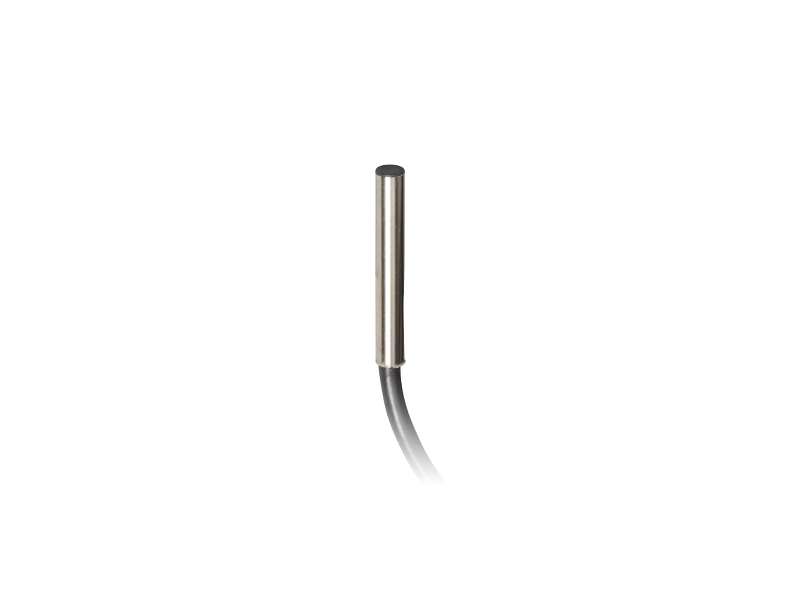

Schneider Electric Induktivni senzor XS1 Ø4 - L29mm - mesing - Sn1mm - 5..24VDC - kabl 2m;XS1L04PA310
Inductive proximity sensors XS, inductive sensor XS1 Ø4, L28mm, brass, Sn1mm, 5..24VDC, cable 2m...
VAT-exclusive price: 13.279,00 |
VAT-inclusive price: 15.934,80 |
Inductive proximity sensors XS, inductive sensor XS1 Ø4, L28mm, brass, Sn1mm, 5..24VDC, cable 2m
| range of product | Telemecanique Inductive proximity sensors XS |
|---|---|
| series name | General purpose |
| sensor type | Inductive proximity sensor |
| device application | - |
| sensor name | XS1 |
| sensor design | Cylindrical Ø 4 mm plain |
| size | 28 mm |
| body type | Fixed |
| detector flush mounting acceptance | Flush mountable |
| material | Metal |
| type of output signal | Discrete |
| wiring technique | 3-wire |
| [Sn] nominal sensing distance | 1 mm |
| discrete output function | 1 NO |
| output circuit type | DC |
| discrete output type | PNP |
| electrical connection | Cable |
| cable length | 2 m |
| [Us] rated supply voltage | 5...24 V DC |
| switching capacity in mA | <= 100 mA with overload and short-circuit protection |
| IP degree of protection | IP67 conforming to IEC 60529 |
| detection face | Frontal |
|---|---|
| front material | PPS |
| enclosure material | Nickel plated brass |
| operating zone | 0…0.8 mm |
| cable composition | 3 x 0.11 mm² |
| wire insulation material | PvR |
| status LED | Output state: 1 LED (yellow) |
| supply voltage limits | 5…30 V DC |
| switching frequency | <= 5000 Hz |
| maximum voltage drop | <2 V (closed) |
| current consumption | <= 10 mA no-load |
| maximum delay first up | 5 ms |
| maximum delay response | 1 ms |
| maximum delay recovery | 1 ms |
| marking | CE |
| threaded length | 0 mm |
| length | 28 mm |
| net weight | 0.025 kg |
| product certifications |
UL CSA |
|---|---|
| ambient air temperature for operation | -25…70 °C |
| ambient air temperature for storage | -40…85 °C |
| vibration resistance | 25 gn amplitude = +/- 2 mm (f = 10…55 Hz) conforming to IEC 60068-2-6 |
| shock resistance | 50 gn for 11 ms conforming to IEC 60068-2-27 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 28.0 g |
| Package 1 Height | 4.1 cm |
| Package 1 width | 9.5 cm |
| Package 1 Length | 13.0 cm |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 22 |
| Package 2 Weight | 923.0 g |
| Package 2 Height | 15.0 cm |
| Package 2 width | 30.0 cm |
| Package 2 Length | 40.0 cm |
| Package 3 Height | 15 cm |
| Warranty | 18 months |
|---|
