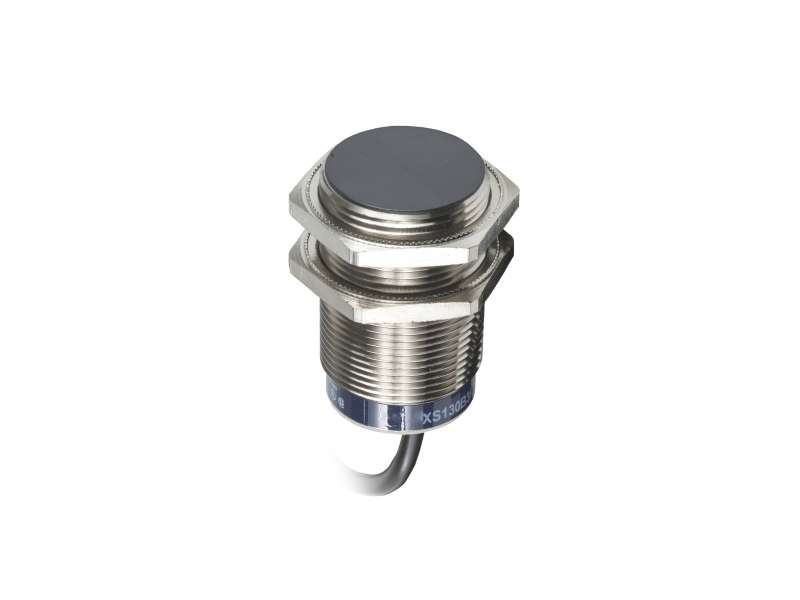

Schneider Electric Induktivni senzor XS1 M30 - L43mm - mesing - Sn15mm - 12..24VDC - kabl 2m; XS130B3PAL2
inductive sensor XS1 M30 - L45mm - brass - Sn15mm - 12..24VDC - cable 2m...
VAT-exclusive price: 5.212,00 |
VAT-inclusive price: 6.254,40 |
inductive sensor XS1 M30 - L45mm - brass - Sn15mm - 12..24VDC - cable 2m
| range of product |
OsiSense XS
|
|
|---|---|---|
| series name |
General purpose
|
|
| sensor type |
Inductive proximity sensor
|
|
| device application |
Mobile equipment
|
|
| sensor name |
XS1
|
|
| sensor design |
Cylindrical M30
|
|
| size |
45 mm
|
|
| body type |
Fixed
|
|
| detector flush mounting acceptance |
Flush mountable
|
|
| material |
Metal
|
|
| type of output signal |
Discrete
|
|
| wiring technique |
3-wire
|
|
| [Sn] nominal sensing distance |
15 mm
|
|
| discrete output function |
1 NO
|
|
| output circuit type |
DC
|
|
| discrete output type |
PNP
|
|
| electrical connection |
Cable
|
|
| cable length |
2 m
|
|
| [Us] rated supply voltage |
12...24 V DC with reverse polarity protection
|
|
| switching capacity in mA |
<= 200 mA with overload and short-circuit protection
|
|
| IP degree of protection |
IP65 conforming to IEC 60529
IP67 conforming to IEC 60529 |
| thread type |
M30 x 1.5
|
|
|---|---|---|
| detection face |
Frontal
|
|
| front material |
PPS
|
|
| enclosure material |
Nickel plated brass
|
|
| operating zone |
0…12 mm
|
|
| differential travel |
1...15% of Sr
|
|
| cable composition |
3 x 0.34 mm²
|
|
| wire insulation material |
PvR
|
|
| status LED |
Output state: 1 LED (yellow)
|
|
| supply voltage limits |
10…36 V DC
|
|
| switching frequency |
<= 500 Hz
|
|
| maximum voltage drop |
<2 V (closed)
|
|
| current consumption |
<= 10 mA no-load
|
|
| maximum delay first up |
10 ms
|
|
| maximum delay response |
0.6 ms
|
|
| maximum delay recovery |
1.4 ms
|
|
| marking |
CE
|
|
| threaded length |
32 mm
|
|
| length |
45 mm
|
|
| net weight |
0.18 kg
|
| product certifications |
E2
CSA UL |
|
|---|---|---|
| ambient air temperature for operation |
-25…70 °C
|
|
| ambient air temperature for storage |
-40…85 °C
|
|
| vibration resistance |
25 gn amplitude = +/- 2 mm (f = 10…55 Hz) conforming to IEC 60068-2-6
|
|
| shock resistance |
50 gn for 11 ms conforming to IEC 60068-2-27
|
| Sustainable offer status |
Green Premium product
|
|
|---|---|---|
| EU RoHS Directive |
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration |
|
| Mercury free |
Yes
|
|
| RoHS exemption information | ||
| Environmental Disclosure | ||
| Circularity Profile |
| Warranty |
18 months
|
|---|
-
OsiSense XS & XT XS130B3PAL2
