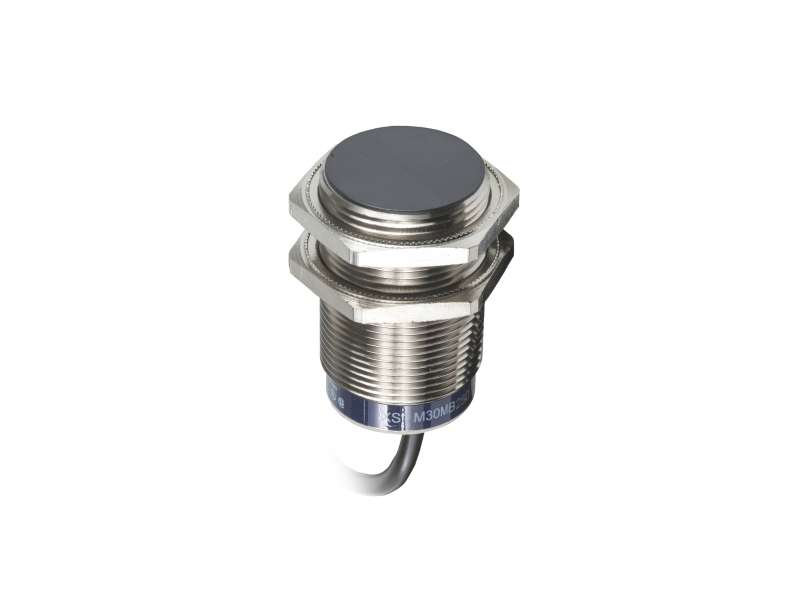

Schneider Electric Induktivni senzor XS1 M30 - D60mm - mesing - Sn10mm - 24..240VAC/DC - kabl 2m; XS1M30MB250
inductive sensor XS1 M30 - L60mm - brass - Sn10mm - 24..240VAC/DC - cable 2m...
VAT-exclusive price: 9.602,00 |
VAT-inclusive price: 11.522,40 |
inductive sensor XS1 M30 - L60mm - brass - Sn10mm - 24..240VAC/DC - cable 2m
| range of product |
OsiSense XS
|
|
|---|---|---|
| series name |
General purpose
|
|
| sensor type |
Inductive proximity sensor
|
|
| wiring configuration |
2-wire
|
|
| output circuit type |
AC/DC
|
|
| protection type |
Short-circuit protection multi voltage
|
|
| device application |
2-wire DC short-circuit protection
|
|
| sensor name |
XS1
|
|
| sensor design |
Cylindrical M30
|
|
| size |
60 mm
|
|
| body type |
Fixed
|
|
| detector flush mounting acceptance |
Flush mountable
|
|
| material |
Metal
|
|
| type of output signal |
Discrete
|
|
| wiring technique |
2-wire
|
|
| [Sn] nominal sensing distance |
10 mm
|
|
| discrete output function |
1 NC
|
|
| electrical connection |
Cable
|
|
| cable length |
2 m
|
|
| [Us] rated supply voltage |
24...210 V DC
24...240 V AC 50/60 Hz |
|
| switching capacity in mA |
5...300 mA AC with overload and short-circuit protection
5...200 mA DC with overload and short-circuit protection |
|
| IP degree of protection |
IP68 double insulation conforming to IEC 60529
|
| thread type |
M30 x 1.5
|
|
|---|---|---|
| detection face |
Frontal
|
|
| front material |
PPS
|
|
| enclosure material |
Nickel plated brass
|
|
| operating zone |
0…8 mm
|
|
| differential travel |
1...15% of Sr
|
|
| cable composition |
2 x 0.34 mm²
|
|
| wire insulation material |
PvR
|
|
| status LED |
Output state: 1 LED (yellow)
Supply on: 1 LED (green) |
|
| supply voltage limits |
20…264 V AC/DC
|
|
| maximum residual current |
1.5 mA open state
|
|
| switching frequency |
<= 2000 Hz DC
<= 25 Hz AC |
|
| maximum voltage drop |
<5.5 V (closed state)
|
|
| maximum delay first up |
70 ms
|
|
| maximum delay response |
2 ms
|
|
| maximum delay recovery |
5 ms
|
|
| marking |
CE
|
|
| threaded length |
51 mm
|
|
| height |
30 mm
|
|
| length |
60 mm
|
|
| net weight |
0.205 kg
|
| product certifications |
CCC
CSA UL |
|
|---|---|---|
| ambient air temperature for operation |
-25…70 °C
|
|
| ambient air temperature for storage |
-40…85 °C
|
|
| vibration resistance |
25 gn amplitude = +/- 2 mm (f = 10…55 Hz) conforming to IEC 60068-2-6
|
|
| shock resistance |
50 gn for 11 ms conforming to IEC 60068-2-7
|
| Package 1 Weight |
207 g
|
|
|---|---|---|
| Package 2 Weight |
207 g
|
|
| Package 3 Weight |
9.61 kg
|
| Sustainable offer status |
Green Premium product
|
|
|---|---|---|
| EU RoHS Directive |
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration |
|
| Mercury free |
Yes
|
|
| RoHS exemption information | ||
| Environmental Disclosure | ||
| Circularity Profile |
| Warranty |
18 months
|
|---|
-
OsiSense XS & XT XS1M30MB250
