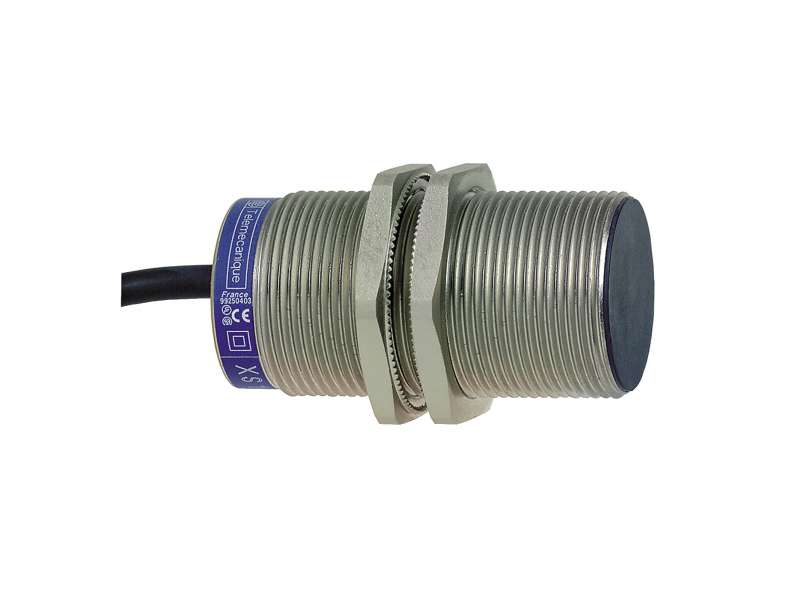

Schneider Electric Induktivni senzor XS1 M30 - D60mm - mesing - Sn10mm - 12..24VDC - kabl 2m; XS1M30KP340
inductive sensor XS1 M30 - L60mm - brass - Sn10mm - 12..24VDC - cable 2m...
VAT-exclusive price: 6.835,00 |
VAT-inclusive price: 8.202,00 |
inductive sensor XS1 M30 - L60mm - brass - Sn10mm - 12..24VDC - cable 2m
| range of product |
OsiSense XS
|
|
|---|---|---|
| series name |
General purpose
|
|
| sensor type |
Inductive proximity sensor
|
|
| device application |
-
|
|
| sensor name |
XS1
|
|
| sensor design |
Cylindrical M30
|
|
| size |
64 mm
|
|
| body type |
Fixed
|
|
| detector flush mounting acceptance |
Flush mountable
|
|
| material |
Metal
|
|
| type of output signal |
Discrete
|
|
| wiring technique |
4-wire
|
|
| [Sn] nominal sensing distance |
10 mm
|
|
| discrete output function |
1 NO or 1 NC programmable
|
|
| output circuit type |
DC
|
|
| discrete output type |
PNP and NPN
|
|
| electrical connection |
Cable
|
|
| cable length |
2 m
|
|
| [Us] rated supply voltage |
12...24 V DC with reverse polarity protection
|
|
| switching capacity in mA |
<= 200 mA with overload and short-circuit protection
|
|
| IP degree of protection |
IP68 double insulation conforming to IEC 60529
|
| thread type |
M30 x 1.5
|
|
|---|---|---|
| detection face |
Frontal
|
|
| front material |
PPS
|
|
| enclosure material |
Nickel plated brass
|
|
| operating zone |
0…8 mm
|
|
| differential travel |
1...15% of Sr
|
|
| cable composition |
4 x 0.22 mm²
|
|
| wire insulation material |
PvR
|
|
| status LED |
Output state: 1 LED (yellow)
|
|
| supply voltage limits |
10…36 V DC
|
|
| switching frequency |
<= 1000 Hz
|
|
| maximum voltage drop |
<2.6 V (closed)
|
|
| current consumption |
0...10 mA no-load
|
|
| maximum delay first up |
5 ms
|
|
| maximum delay response |
0.3 ms
|
|
| maximum delay recovery |
0.7 ms
|
|
| marking |
CE
|
|
| threaded length |
51 mm
|
|
| height |
30 mm
|
|
| length |
60 mm
|
|
| net weight |
0.205 kg
|
| product certifications |
UL
CSA |
|
|---|---|---|
| ambient air temperature for operation |
-25…70 °C
|
|
| ambient air temperature for storage |
-40…85 °C
|
|
| vibration resistance |
25 gn amplitude = +/- 2 mm (f = 10…55 Hz) conforming to IEC 60068-2-6
|
|
| shock resistance |
50 gn for 11 ms conforming to IEC 60068-2-27
|
| Package 1 Weight |
215 g
|
|
|---|---|---|
| Package 2 Weight |
215 g
|
|
| Package 3 Weight |
9.934 kg
|
| Sustainable offer status |
Green Premium product
|
|
|---|---|---|
| EU RoHS Directive |
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration |
|
| Mercury free |
Yes
|
|
| RoHS exemption information | ||
| Environmental Disclosure | ||
| Circularity Profile |
| Warranty |
18 months
|
|---|
-
OsiSense XS & XT XS1M30KP340
