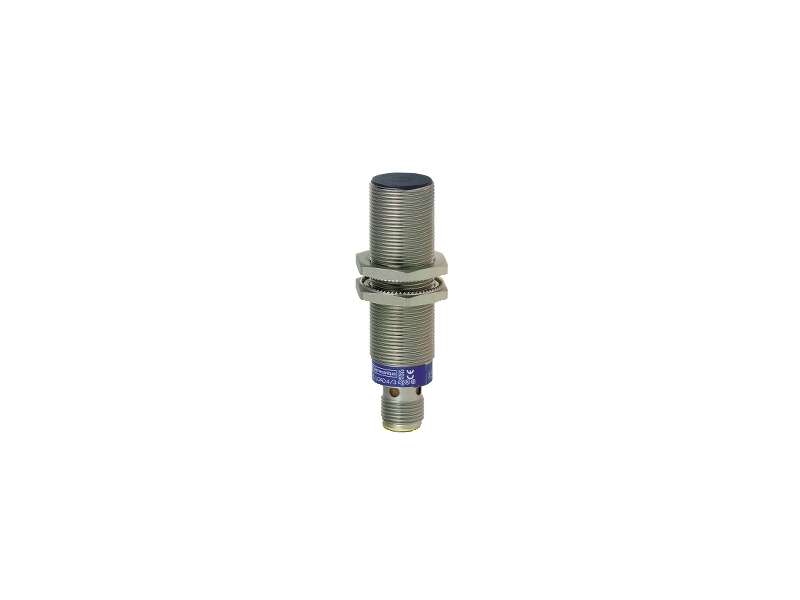

Schneider Electric Induktivni senzor XS1 M18 - D70mm - nerđajući čelik - Sn5mm - 12..24VDC - M12;XS1M18PAS20D
Inductive proximity sensors XS, inductive sensor XS1 M18, L70mm, stainless, Sn5mm, 12...24 VDC, M12...
VAT-exclusive price: 10.134,00 |
VAT-inclusive price: 12.160,80 |
Inductive proximity sensors XS, inductive sensor XS1 M18, L70mm, stainless, Sn5mm, 12...24 VDC, M12
| range of product | Telemecanique Inductive proximity sensors XS |
|---|---|
| series name | Application |
| sensor type | Inductive proximity sensor |
| device application | Selective detection of non ferrous materials |
| sensor name | XS1 |
| sensor design | Cylindrical M18 |
| size | 70 mm |
| body type | Fixed |
| detector flush mounting acceptance | Flush mountable |
| material | Stainless steel |
| type of output signal | Discrete |
| wiring technique | 3-wire |
| [Sn] nominal sensing distance | 5 mm |
| discrete output function | 1 NO |
| output circuit type | DC |
| discrete output type | PNP |
| electrical connection | Male connector M12, 4 pins |
| [Us] rated supply voltage | 12...24 V DC with reverse polarity protection |
| switching capacity in mA | <= 200 mA with overload and short-circuit protection |
| IP degree of protection | IP67 conforming to IEC 60529 |
| thread type | M18 x 1 |
|---|---|
| detection face | Frontal |
| front material | PPS |
| enclosure material | Stainless steel : 304 CU |
| operating zone | 0…4 mm |
| status LED | Output state: 1 LED (yellow) |
| supply voltage limits | 10…38 V DC |
| switching frequency | <= 1000 Hz |
| maximum voltage drop | <2.6 V (closed) |
| current consumption | 0...15 mA no-load |
| maximum delay first up | 10 ms |
| maximum delay response | 0.3 ms |
| maximum delay recovery | 0.7 ms |
| marking | CE |
| threaded length | 52 mm |
| height | 18 mm |
| length | 70 mm |
| net weight | 0.6 kg |
| product certifications |
UL CSA |
|---|---|
| ambient air temperature for operation | -25…70 °C |
| Unit Type of Package 1 | PCE |
|---|---|
| Package 1 Length | 7.2 cm |
| Number of Units in Package 1 | 1 |
| Package 2 Width | 15.0 cm |
| Package 2 Height | 15.0 cm |
| Package 2 Weight | 874.0 g |
| Package 1 Width | 8.1 cm |
| Package 1 Height | 4.5 cm |
| Package 1 Weight | 70.9 g |
| Number of Units in Package 2 | 9 |
| Unit Type of Package 2 | S01 |
| Package 2 Length | 40.0 cm |
| Warranty | 18 months |
|---|
