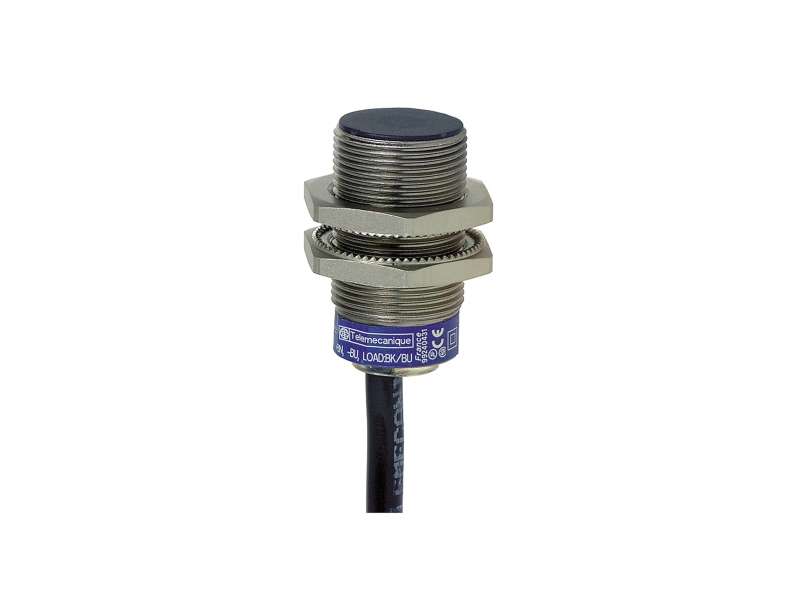

Schneider Electric Induktivni senzor XS1 M18 - D37mm - mesing - Sn5mm - 12..24VDC - kabl 2m; XS1N18PC410
inductive sensor XS1 M18 - L37mm - brass - Sn5mm - 12..24VDC - cable 2m...
VAT-exclusive price: 5.158,00 |
VAT-inclusive price: 6.189,60 |
inductive sensor XS1 M18 - L37mm - brass - Sn5mm - 12..24VDC - cable 2m
| range of product |
OsiSense XS
|
|
|---|---|---|
| series name |
General purpose
|
|
| sensor type |
Inductive proximity sensor
|
|
| device application |
Mobile equipment
|
|
| sensor name |
XS1
|
|
| sensor design |
Cylindrical M18
|
|
| size |
40 mm
|
|
| body type |
Fixed
|
|
| detector flush mounting acceptance |
Flush mountable
|
|
| material |
Metal
|
|
| type of output signal |
Discrete
|
|
| wiring technique |
4-wire
|
|
| [Sn] nominal sensing distance |
5 mm
|
|
| discrete output function |
1 NO + 1 NC
|
|
| output circuit type |
DC
|
|
| discrete output type |
PNP
|
|
| electrical connection |
Cable
|
|
| cable length |
2 m
|
|
| [Us] rated supply voltage |
12...24 V DC with reverse polarity protection
|
|
| switching capacity in mA |
<= 200 mA with overload and short-circuit protection
|
|
| IP degree of protection |
IP68 conforming to IEC 60529
IP65 |
| safety level |
SIL 2 conforming to EN/IEC 61508
PL = d conforming to EN/ISO 13849-1 SILCL 2 conforming to IEC 62061 |
|
|---|---|---|
| safety reliability data |
MTTFd = 1810 years
PFHd = 62.9E-9 1/h SFF = 92 % DC = 74 % with appropriate safety controller |
|
| service life |
20 year(s)
|
|
| thread type |
M18 x 1
|
|
| detection face |
Frontal
|
|
| front material |
PPS
|
|
| enclosure material |
Nickel plated brass
|
|
| operating zone |
0…4 mm
|
|
| differential travel |
1...15% of Sr
|
|
| cable composition |
4 x 0.22 mm²
|
|
| wire insulation material |
PvR
|
|
| status LED |
Output state: 1 LED (yellow)
|
|
| supply voltage limits |
9…36 V DC
|
|
| switching frequency |
<= 2000 Hz
|
|
| maximum voltage drop |
<2 V (closed)
|
|
| current consumption |
0...10 mA no-load
|
|
| maximum delay first up |
5 ms
|
|
| maximum delay response |
0.15 ms
|
|
| maximum delay recovery |
0.35 ms
|
|
| marking |
CE
|
|
| threaded length |
29 mm
|
|
| height |
18 mm
|
|
| length |
41 mm
|
|
| net weight |
0.1 kg
|
| standards |
IEC 62061
EN/ISO 13849-1 |
|
|---|---|---|
| product certifications |
E2
TÜV CSA UL |
|
| ambient air temperature for operation |
-25…70 °C
|
|
| ambient air temperature for storage |
-40…85 °C
|
|
| vibration resistance |
25 gn amplitude = +/- 2 mm (f = 10…55 Hz) conforming to IEC 60068-2-6
|
|
| shock resistance |
50 gn for 11 ms conforming to IEC 60068-2-27
|
| Package 1 Weight |
100 g
|
|
|---|---|---|
| Package 2 Weight |
116 g
|
|
| Package 3 Weight |
4.833 kg
|
| Sustainable offer status |
Green Premium product
|
|
|---|---|---|
| EU RoHS Directive |
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration |
|
| Mercury free |
Yes
|
|
| RoHS exemption information | ||
| Environmental Disclosure | ||
| Circularity Profile |
| Warranty |
18 months
|
|---|
-
OsiSense XS & XT XS1N18PC410
