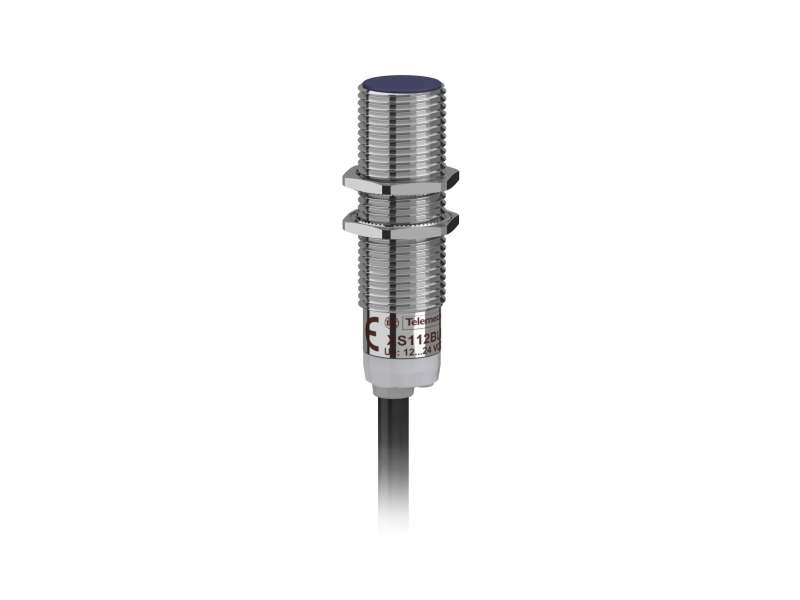

Schneider Electric Induktivni senzor XS1 M12 - L44mm - mesing - Sn2mm - 12..24VDC - kabl 2m;XS112BLPAL2
Inductive proximity sensors XS, inductive sensor XS1 M12, L44mm, brass, Sn2mm, 12...24 VDC, cable 2 m...
VAT-exclusive price: 3.583,00 |
VAT-inclusive price: 4.299,60 |
Inductive proximity sensors XS, inductive sensor XS1 M12, L44mm, brass, Sn2mm, 12...24 VDC, cable 2 m
| range of product |
Telemecanique Inductive proximity sensors XS
|
|
|---|---|---|
| series name |
General purpose
|
|
| sensor type |
Inductive proximity sensor
|
|
| sensor name |
XS1
|
|
| sensor design |
Cylindrical M12
|
|
| size |
44 mm
|
|
| body type |
Fixed
|
|
| enclosure material |
Nickel plated brass
|
|
| type of output signal |
Discrete
|
|
| wiring technique |
3-wire
|
|
| [Sn] nominal sensing distance |
2 mm
|
|
| discrete output function |
1 NO
|
|
| discrete output type |
PNP
|
|
| electrical connection |
Cable
|
|
| cable length |
2 m
|
|
| [Us] rated supply voltage |
12...24 V DC with reverse polarity protection
|
|
| switching capacity in mA |
<= 200 mA with overload and short-circuit protection
|
|
| IP degree of protection |
IP67 conforming to IEC 60529
|
| ISO thread |
M12 x 1
|
|
|---|---|---|
| detection face |
Frontal
|
|
| detector flush mounting acceptance |
Flush mountable
|
|
| material |
Metal
|
|
| front material |
PBT
|
|
| operating zone |
0…1.6 mm
|
|
| differential travel |
1...15% of Sr
|
|
| output circuit type |
DC
|
|
| cable composition |
3 x 0.14 mm²
|
|
| wire insulation material |
PVC
|
|
| status LED |
Output state: 1 LED (yellow)
|
|
| supply voltage limits |
10…36 V DC
|
|
| switching frequency |
<= 2500 Hz
|
|
| maximum voltage drop |
<2 V (closed)
|
|
| current consumption |
<= 10 mA no-load
|
|
| maximum delay first up |
15 ms
|
|
| maximum delay response |
0.1 ms
|
|
| maximum delay recovery |
0.15 ms
|
|
| marking |
CE
|
|
| threaded length |
31 mm
|
|
| length |
44 mm
|
|
| net weight |
0.07 kg
|
| product certifications |
CSA
UL |
|
|---|---|---|
| ambient air temperature for operation |
-25…70 °C
|
|
| ambient air temperature for storage |
-40…85 °C
|
|
| vibration resistance |
25 gn amplitude = +/- 2 mm (f = 10…55 Hz) conforming to IEC 60068-2-6
|
|
| shock resistance |
50 gn for 11 ms conforming to IEC 60068-2-27
|
-
OsiSense XS & XT XS112BLPAL2
