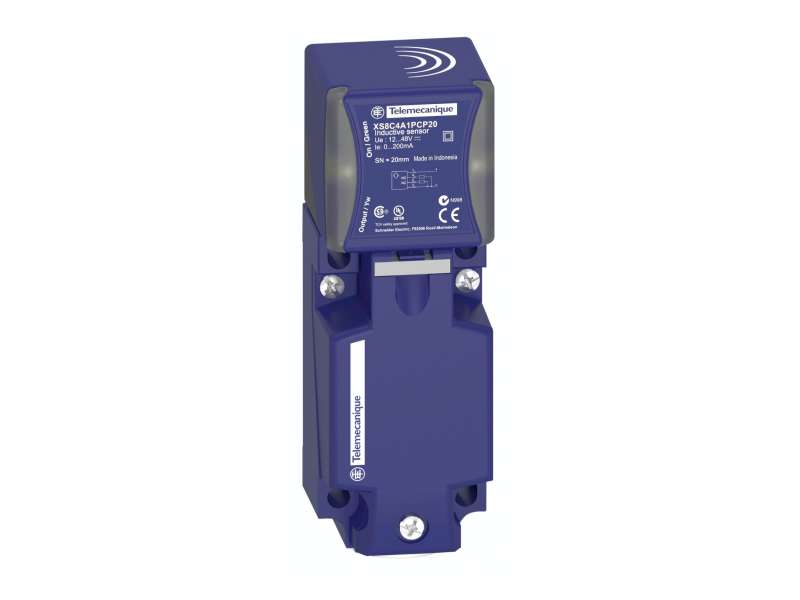

Schneider Electric Inductive proximity sensors XS, inductive sensor XS8 40x40x117, PBT, Sn20 mm, 12...48 VDC, terminals
Inductive proximity sensors XS, inductive sensor XS8 40x40x117, PBT, Sn20 mm, 12...48 VDC, terminals...
VAT-exclusive price: 12.395,00 |
VAT-inclusive price: 14.874,00 |
Inductive proximity sensors XS, inductive sensor XS8 40x40x117, PBT, Sn20 mm, 12...48 VDC, terminals
| range of product | Telemecanique Inductive proximity sensors XS |
|---|---|
| series name | General purpose |
| sensor type | Inductive proximity sensor |
| device application | Mobile equipment |
| sensor name | XS8 |
| sensor design | Form 40 x 40 x 117 |
| size | 117 mm |
| body type | Fixed |
| detector flush mounting acceptance | Flush mountable |
| material | Plastic |
| enclosure material | PBT |
| type of output signal | Discrete |
| wiring technique | 4-wire |
| [Sn] nominal sensing distance | 20 mm |
| discrete output function | 1 NO + 1 NC |
| output circuit type | DC |
| discrete output type | NPN |
| electrical connection | Screw-clamp terminals, 4 x 1.5 mm² |
| [Us] rated supply voltage | 12...48 V DC with reverse polarity protection |
| switching capacity in mA | <= 200 mA with overload and short-circuit protection |
| IP degree of protection |
IP67 conforming to IEC 60529 IP65 conforming to IEC 60529 IP69K conforming to DIN 40050 |
| detection face | 5 positions turret head |
|---|---|
| front material | PBT |
| operating zone | 0…16 mm |
| differential travel | 3...15% of Sr |
| repeat accuracy | <= 3% of Sr |
| cable entry number | 1 tapped entry for Pg 13.5 cable gland |
| status LED |
Supply on: 1 LED (green) Output state: 1 LED (yellow) |
| supply voltage limits | 10…58 V DC |
| switching frequency | <= 300 Hz |
| maximum voltage drop | <2 V (closed) |
| current consumption | 0...15 mA no-load |
| maximum delay first up | 7.5 ms |
| maximum delay response | 1.2 ms |
| maximum delay recovery | 1.8 ms |
| marking | CE |
| height | 40 mm |
| length | 40 mm |
| width | 117 mm |
| net weight | 0.244 kg |
| product certifications |
CSA E2 CCC UL |
|---|---|
| ambient air temperature for operation | -25…70 °C |
| ambient air temperature for storage | -40…85 °C |
| vibration resistance | 25 gn amplitude = +/- 2 mm (f = 10…55 Hz) conforming to IEC 60068-2-6 |
| shock resistance | 50 gn for 11 ms conforming to EN 60068-2-27 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 254 g |
| Package 1 Height | 5 cm |
| Package 1 width | 5 cm |
| Package 1 Length | 14.5 cm |
| Sustainable offer status | Green Premium product |
|---|---|
| REACh Regulation | REACh Declaration |
| EU RoHS Directive |
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration |
| Mercury free | Yes |
| RoHS exemption information | Yes |
| Environmental Disclosure | Product Environmental Profile |
| California proposition 65 | WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Warranty | 18 months |
|---|
-
Induktivni i kapacitivni senzori XS & XT XS8C4A1NCG13
