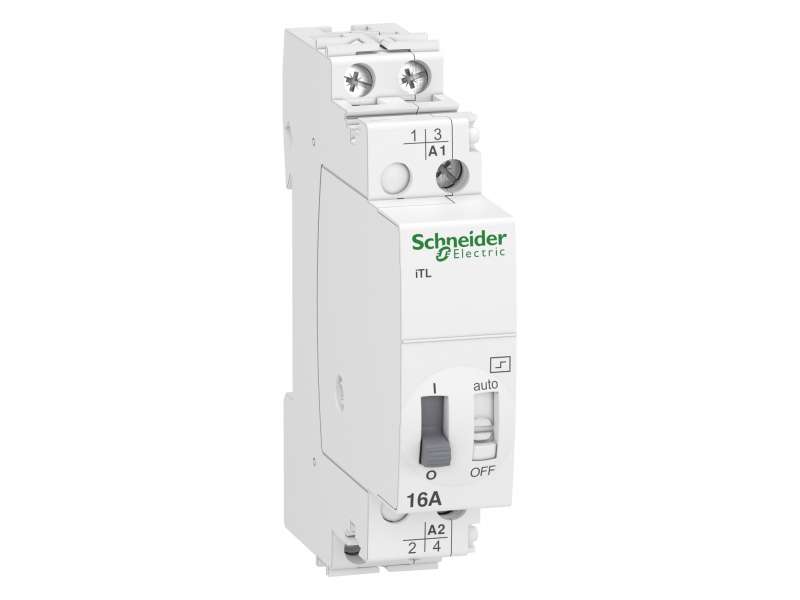

Schneider Electric Impulsni relej iTL - 2P - 2 NO - 16A - kalem 110 VDC - 230..240 VAC 50/60Hz; A9C30812
impulse relay iTL - 2P - 2 NO - 16A - coil 110 VDC - 230...240 VAC 50/60Hz; A9C30812...
VAT-exclusive price: 2.861,00 |
VAT-inclusive price: 3.433,20 |
impulse relay iTL - 2P - 2 NO - 16A - coil 110 VDC - 230...240 VAC 50/60Hz; A9C30812
| range of product | Acti9 |
|---|---|
| Product name | Acti9 iTL |
| Product or component type | Impulse relay |
| Device short name | iTL |
| Device application | Standard |
| Poles | 2P |
| Pole contact composition | 2 NO |
| [In] rated current | 16 A |
| Network type | AC |
| [Uc] control circuit voltage |
230...240 V AC 50/60 Hz 110 V DC |
| Network frequency | 50/60 Hz |
|---|---|
| [Ue] rated operational voltage | 250 V AC 50/60 Hz |
| Control type |
Remote and manual control Coil deconnection |
| Control signal type | Impulse |
| Switching frequency |
5 switching operations/minute 100 switching operations/day |
| Impulse duration | 50 ms...1 s |
| Remote control type | Illuminated push-button 3 mA |
| Local signalling | ON/OFF indication |
| Mounting mode | Fixed |
| Mounting support | DIN rail |
| 9 mm pitches | 2 |
| Height | 84 mm |
| Width | 18 mm |
| Depth | 60 mm |
| Electrical durability |
AC-21: 200000 cycles AC-22: 100000 cycles |
| Connections - terminals |
Control circuit: tunnel type terminals 1 cable(s) 0.5…4 mm² rigid Control circuit: tunnel type terminals 1 cable(s) 0.5…4 mm² rigid with cable end Control circuit: tunnel type terminals 1 cable(s) 1…4 mm² flexible Control circuit: tunnel type terminals 1 cable(s) 1…4 mm² flexible with ferrule Power circuit: tunnel type terminals 1 cable(s) 1.5…4 mm² rigid Power circuit: tunnel type terminals 1 cable(s) 1.5…4 mm² rigid with cable end Power circuit: tunnel type terminals 1 cable(s) 1.5…4 mm² flexible Power circuit: tunnel type terminals 1 cable(s) 1.5…4 mm² flexible with ferrule |
| Wire stripping length | 11 mm |
| Tightening torque | 1 N.m |
| Range compatibility |
Acti 9 iATEt Acti 9 iATL4 Acti 9 iATLc Acti 9 iATLc+s Acti 9 iATLm Acti 9 iATLs Acti 9 iATLz Acti 9 iETL iTL 16 Acti 9 iATLc+c Acti 9 iATL24 |
| Standards |
EN 669-1 EN 669-2-2 |
|---|---|
| Product certifications | GOST |
| Quality labels |
NF CEBEC KEMA VDE IMQ |
| noise level | 60 dB |
| IP degree of protection |
IP20 conforming to IEC 60529 (on opening) IP40 conforming to IEC 60529 (in enclosure) |
| Pollution degree | 3 |
| Tropicalisation | 2 |
| Relative humidity | 95 % at 55 °C |
| Ambient air temperature for operation | -20…50 °C |
| Ambient air temperature for storage | -40…70 °C |
