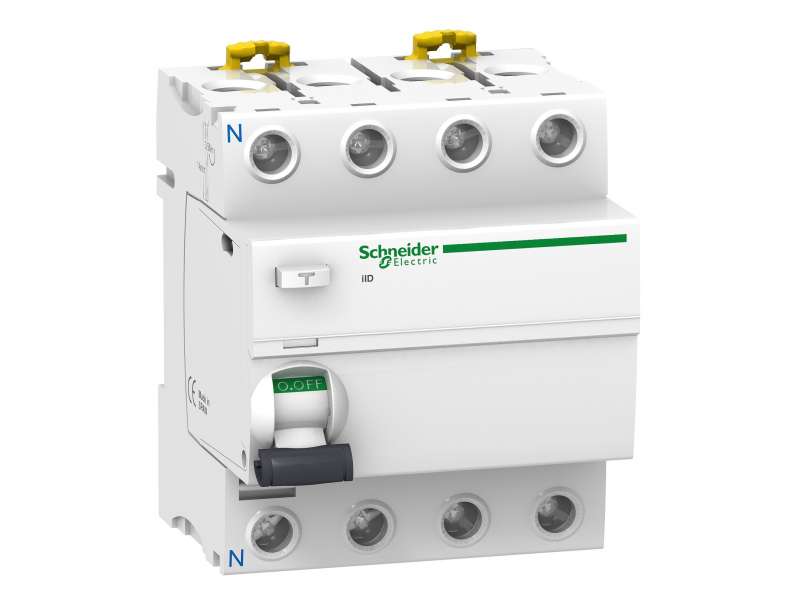

Schneider Electric IID - diferencijalni zaštitni prekidač - 4P - 63A - 30mA - AC tip; A9R41463
Residual current circuit breaker (RCCB), Acti9 iID, 4P, 63A, AC type, 30mA; A9R41463...
VAT-exclusive price: 15.091,00 |
VAT-inclusive price: 18.109,20 |
Residual current circuit breaker (RCCB), Acti9 iID, 4P, 63A, AC type, 30mA; A9R41463
| Range | Acti9 |
|---|---|
| Product name | Acti9 iID |
| Product or component type | Residual current circuit breaker (RCCB) |
| Device short name | iID |
| Poles description | 4P |
| Neutral position | Left |
| [In] rated current | 63 A |
| Network type | AC |
| earth-leakage sensitivity | 30 mA |
| Earth-leakage protection time delay | Instantaneous |
| Earth-leakage protection class | Type AC |
| Device location in system | Outgoer |
|---|---|
| Network frequency | 50/60 Hz |
| [Ue] rated operational voltage | 380...415 V AC 50/60 Hz |
| Residual current tripping technology | Voltage independent |
| rated breaking and making capacity |
Idm 1500 A Im 1500 A |
| rated conditional short-circuit current | 10 kA |
| [Ui] rated insulation voltage | 500 V AC 50/60 Hz |
| [Uimp] rated impulse withstand voltage | 6 kV |
| Surge current | 250 A |
| Contact position indicator | Yes |
| Control type | Toggle |
| Mounting mode | Clip-on |
| Mounting support | DIN rail |
| 9 mm pitches | 8 |
| Height | 91 mm |
| Width | 72 mm |
| Depth | 73.5 mm |
| Net weight | 0.37 kg |
| colour | White |
| Mechanical durability | 20000 cycles |
| electrical durability | AC-1: 15000 cycles |
| Locking options description | Padlocking device |
| connections - terminals |
Single terminal top or bottom 1…35 mm² rigid Single terminal top or bottom 1…25 mm² flexible Single terminal top or bottom 1…25 mm² flexible with ferrule |
| wire stripping length | 14 mm for top or bottom connection |
| tightening torque | 3.5 N.m top or bottom |
