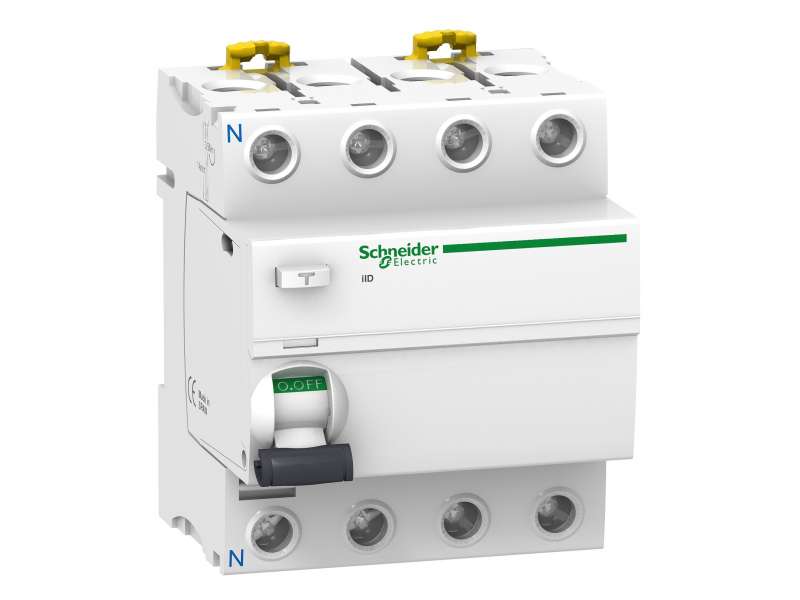

Schneider Electric IID - diferencijalni zaštitni prekidač - 4P - 25A - 500mA - AC tip; A9R16425
Acti 9 iID - RCCB - 4P - 25A - 500mA - type AC...
VAT-exclusive price: 6.358,00 |
VAT-inclusive price: 7.629,60 |
Acti 9 iID - RCCB - 4P - 25A - 500mA - type AC
| range |
Acti 9
|
|
|---|---|---|
| product name |
Acti 9 iID
|
|
| product or component type |
Residual current circuit breaker (RCCB)
|
|
| device short name |
IID
|
|
| poles description |
4P
|
|
| neutral position |
Left
|
|
| [In] rated current |
25 A
|
|
| network type |
AC
|
|
| earth-leakage sensitivity |
500 mA
|
|
| earth-leakage protection time delay |
Instantaneous
|
|
| earth-leakage protection class |
Type AC
|
| device location in system |
Outgoer
|
|
|---|---|---|
| network frequency |
50/60 Hz
|
|
| [Ue] rated operational voltage |
380...415 V AC 50/60 Hz
|
|
| residual current tripping technology |
Voltage independent
|
|
| rated breaking and making capacity |
Idm 1500 A
Im 1500 A |
|
| rated conditional short-circuit current |
10 kA
|
|
| [Ui] rated insulation voltage |
500 V AC 50/60 Hz
|
|
| [Uimp] rated impulse withstand voltage |
6 kV
|
|
| surge current |
250 A
|
|
| contact position indicator |
Yes
|
|
| control type |
Toggle
|
|
| mounting mode |
Clip-on
|
|
| mounting support |
DIN rail
|
|
| 9 mm pitches |
8
|
|
| height |
91 mm
|
|
| width |
72 mm
|
|
| depth |
73.5 mm
|
|
| net weight |
0.37 kg
|
|
| colour |
White
|
|
| mechanical durability |
20000 cycles
|
|
| electrical durability |
AC-1: 15000 cycles
|
|
| locking options description |
Padlocking device
|
|
| connections - terminals |
Single terminal top or bottom 1…35 mm² rigid
Single terminal top or bottom 1…25 mm² flexible Single terminal top or bottom 1…25 mm² flexible with ferrule |
|
| wire stripping length |
14 mm for top or bottom connection
|
|
| tightening torque |
3.5 N.m top or bottom
|
| standards |
EN/IEC 61008-1
|
|
|---|---|---|
| IP degree of protection |
IP20 conforming to IEC 60529
IP40 (modular enclosure) conforming to IEC 60529 |
|
| pollution degree |
3
|
|
| electromagnetic compatibility |
8/20 µs impulse withstand, 250 A conforming to EN/IEC 61008-1
|
|
| ambient air temperature for operation |
-5…60 °C
|
|
| ambient air temperature for storage |
-40…85 °C
|
| Unit Type of Package 1 |
PCE
|
|
|---|---|---|
| Number of Units in Package 1 |
1
|
|
| Package 1 Weight |
349 g
|
|
| Package 1 Height |
7.5 cm
|
|
| Package 1 width |
8.2 cm
|
|
| Package 1 Length |
10 cm
|
|
| Unit Type of Package 2 |
S03
|
|
| Number of Units in Package 2 |
27
|
|
| Package 2 Weight |
10.242 kg
|
|
| Package 2 Height |
30 cm
|
|
| Package 2 width |
30 cm
|
|
| Package 2 Length |
40 cm
|
| Sustainable offer status |
Green Premium product
|
|
|---|---|---|
| EU RoHS Directive |
Compliant
EU RoHS Declaration |
|
| Mercury free |
Yes
|
|
| RoHS exemption information | ||
| China RoHS Regulation |
China RoHS declaration
Product out of China RoHS scope. Substance declaration for your information |
|
| Environmental Disclosure | ||
| WEEE |
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
|
| Warranty |
18 months
|
|---|
-
Acti 9 iID A9R16425
