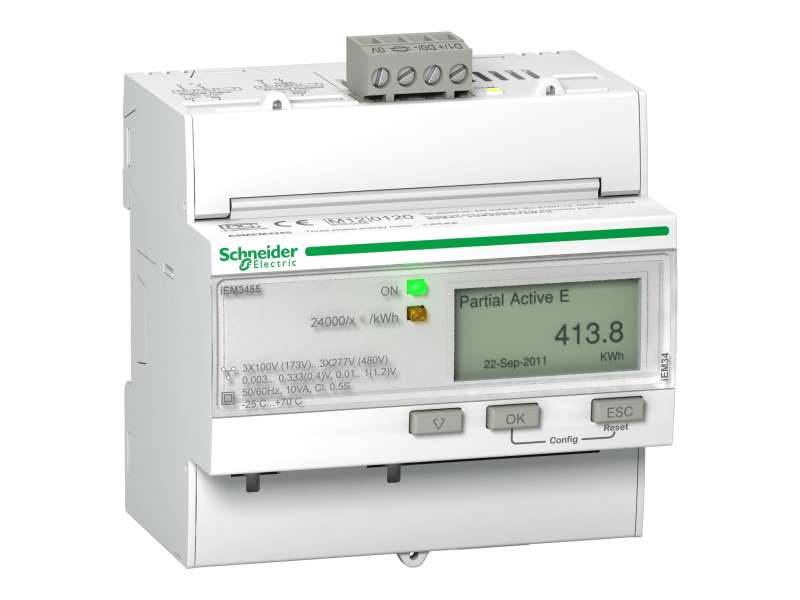

Name: Schneider Electric IEM3455 multimetar - Modbus - 1 DI - 1 DO - višetarifni - LVCT;A9MEM3455
Brand: Schneider Electric
SKU: A9MEM3455
Price: 47653.20 RSD
Availability: OutOfStock

Schneider Electric IEM3455 multimetar - Modbus - 1 DI - 1 DO - višetarifni - LVCT;A9MEM3455

IEM3455 energy meter - Modbus - 1 DI - 1 DO - multi-tariff - LVCT...

Brand: Schneider Electric
Product Code: A9MEM3455
Availability: Check availability

VAT-exclusive price: 39.711,00

VAT-inclusive price: 47.653,20

Qnt:

IEM3455 energy meter - Modbus - 1 DI - 1 DO - multi-tariff - LVCT

Main
range	Acti 9
range of product	Acti 9 iEM3000
device short name	IEM3455
product or component type	Energy meter

Complementary
poles description	3P + N 1P + N 3P
type of measurement	Active and reactive energy Active and reactive power Current Voltage
metering type	Active, reactive, apparent energy (signed, four quadrant)
device application	Sub billing Multi-tariff Partial meter
accuracy class	Class 0.5S active energy conforming to IEC 62053-22 Class 0.5S active energy conforming to ANSI C12.20
input type	Split core current transducer 0.333 V or 1 V
rated voltage	100…277 V +/- 20 % 173…480 V +/- 20 %
network frequency	60 Hz 50 Hz
technology type	Electronic
display type	LCD display
sampling rate	32 samples/cycle
measurement current	1…32767000 mA
maximum value measured	99999999.9 kWh 99999999 MWh
tariff input	Tariff (4)
communication port protocol	Modbus RTU at 9.6, 19.2 and 38.4 kbauds even/odd or none
communication port support	Screw terminal block: RS485
local signalling	Green indicator light: power ON Yellow flashing LED: accuracy checking alarm: overload Yellow indicator light: communications are active on the Modbus port (Modbus)
number of inputs	1 digital 0...5 V/11...40 V 24 V DC
number of outputs	1 digital (static)
output voltage	5...40 V DC@50 mA
mounting mode	Clip-on
mounting support	DIN rail
connections - terminals	Current circuit: screw terminals 6 mm² cable(s) Voltage circuit: screw terminals 2.5 mm² cable(s) Input/output circuit: screw terminals 1.5 mm² cable(s) Communication: screw terminals 2.5 mm² cable(s)
tightening torque	Input/output circuit: 0.5 N.m Philips screwdriver Voltage circuit: 0.5 N.m Philips screwdriver Current circuit: 0.8 N.m pozidriv screwdriver Communication: 0.5 N.m Philips screwdriver
wire stripping length	Input/output circuit: 6 mm Voltage circuit: 8 mm Current circuit: 8 mm Communication: 7 mm
standards	IEC 62053-21 IEC 62053-23 IEC 61557-12 UL 61010-1 IEC 61036 IEC 61010
product certifications	CE conforming to IEC 61010 (safety) CE conforming to EN 61557-12 (power monitor) CE conforming to IEC 61326-1 (EMC) CULus conforming to UL 61010 (safety) CULus conforming to ANSI C12.20 (sub-meter) EAC (sub-meter) RCM conforming to NMI M 6-1 (sub-meter) UL

Environment
IP degree of protection	IP40 front panel: conforming to IEC 60529 IP20 body: conforming to IEC 60529
IK degree of protection	IK08
pollution degree	2
relative humidity	5…95 % at 36 °C
ambient air temperature for operation	-25…70 °C - IEC
ambient air temperature for storage	-40…85 °C
operating altitude	< 3000 m
colour	White
9 mm pitches	10
width	90 mm
height	87 mm
depth	69 mm
