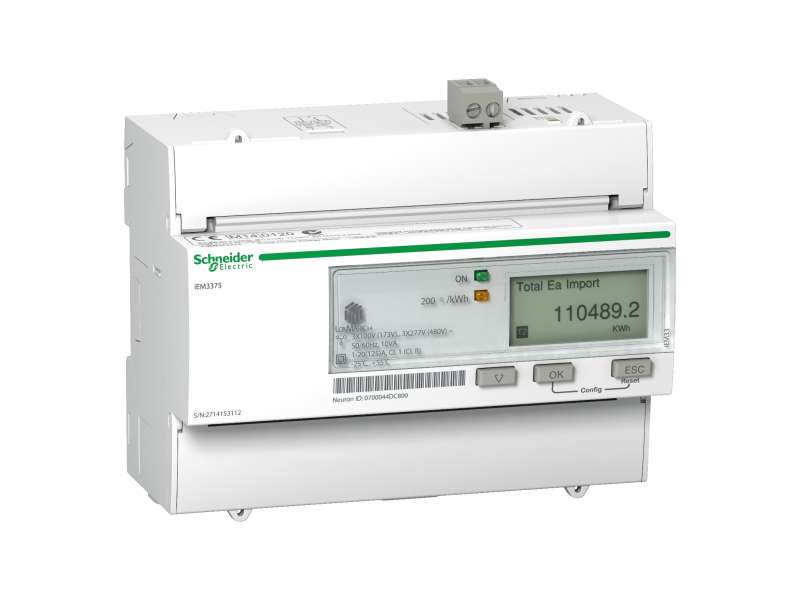

Schneider Electric IEM3375 multimetar - 125 A - LON - 1 digitalni ulaz - višetarifni;A9MEM3375
IEM3375 energy meter - 125 A - LON - 1 digital I - multi-tariff - MID...
VAT-exclusive price: 52.765,00 |
VAT-inclusive price: 63.318,00 |
IEM3375 energy meter - 125 A - LON - 1 digital I - multi-tariff - MID
| range |
Acti 9
|
|
|---|---|---|
| range of product |
Acti 9 iEM3000
|
|
| device short name |
IEM3375
|
|
| product or component type |
Energy meter
|
| poles description |
3P + N
3P 1P + N |
|
|---|---|---|
| type of measurement |
Active and reactive energy
Active and reactive power Current Voltage |
|
| metering type |
Active, reactive, apparent energy (signed, four quadrant)
|
|
| device application |
Multi-tariff
Sub billing Partial meter |
|
| accuracy class |
Class 1 active energy conforming to IEC 62053-21
Class 1 active energy conforming to IEC 61557-12 Class B active energy conforming to EN 50470-3 |
|
| input type |
Direct input
|
|
| [In] rated current |
125 A
|
|
| rated voltage |
100…277 V
173…480 V |
|
| network frequency |
50 Hz
60 Hz |
|
| technology type |
Electronic
|
|
| display type |
LCD display
|
|
| sampling rate |
32 samples/cycle
|
|
| measurement current |
0…125 A
|
|
| maximum value measured |
99999999.9 kWh
|
|
| tariff input |
Tariff (4)
|
|
| communication port protocol |
LON, insulation 3750 V
|
|
| communication port support |
Screw terminal block: LonWorks TP/FT-10
|
|
| local signalling |
Green indicator light: power ON
Yellow flashing LED: accuracy checking alarm: overload |
|
| number of inputs |
1 digital 0...5 V/11...40 V 24 V DC
|
|
| number of outputs |
0
|
|
| mounting mode |
Clip-on
|
|
| mounting support |
DIN rail
|
|
| connections - terminals |
Screw terminals 50 mm² cable(s)
|
|
| overvoltage category |
III
|
|
| standards |
IEC 62053-21
IEC 61036 IEC 61010 IEC 62053-23 IEC 61557-12 UL 61010-1 |
|
| product certifications |
CE conforming to IEC 61010 (safety)
CE conforming to EN 61557-12 (power monitor) CE conforming to IEC 61326-1 (EMC) CULus conforming to UL 61010 (safety) CULus conforming to ANSI C12.20 (sub-meter) EAC (sub-meter) RCM conforming to NMI M 6-1 (sub-meter) UL MID conforming to EN 50470-3 (sub-meter) MID conforming to EN 62052 (sub-meter) |
| IP degree of protection |
IP40 front panel: conforming to IEC 60529
IP20 body: conforming to IEC 60529 |
|
|---|---|---|
| pollution degree |
2
|
|
| relative humidity |
5…95 % at 50 °C
|
|
| ambient air temperature for operation |
-25…55 °C - MID
-25…60 °C - NMI -25…60 °C - IEC |
|
| ambient air temperature for storage |
-40…85 °C
|
|
| operating altitude |
< 2000 m
|
|
| colour |
White
|
|
| 9 mm pitches |
14
|
|
| width |
126 mm
|
|
| height |
103.2 mm
|
|
| depth |
69.3 mm
|
| Package 1 Weight |
580.000 g
|
|
|---|---|---|
| Package 1 Height |
85
|
-
Acti 9 iEM3000 A9MEM3375
